GETTING READY
General Guide

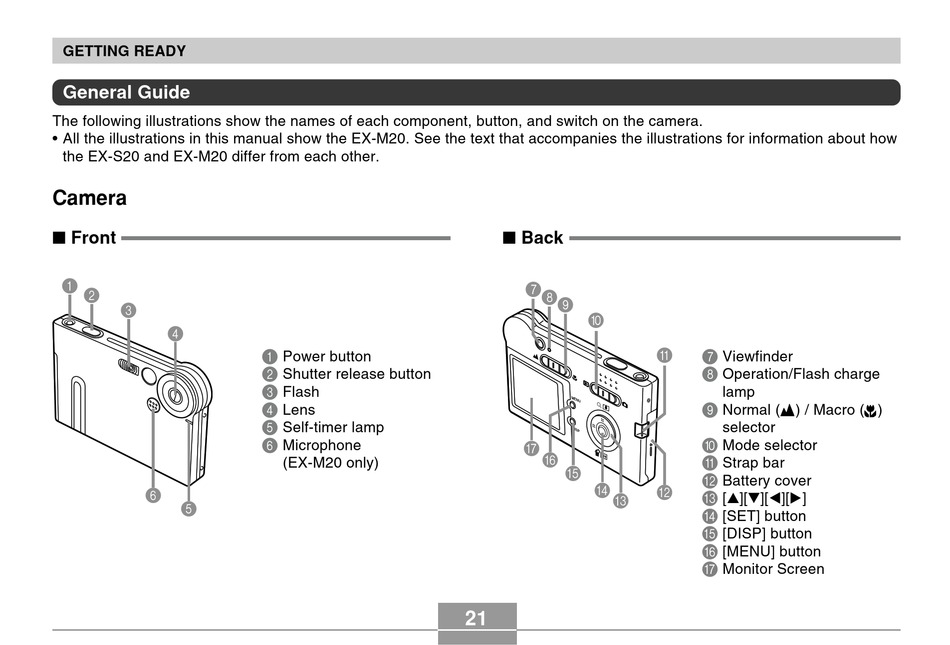

The following illustrations show the names of each component, button, and switch on the camera.
• All the illustrations in this manual show the EX-M20. See the text that accompanies the illustrations for information about how
the EX-S20 and EX-M20 differ from each other.
Camera
I Front
1
2
3
4
6
5
1
Power button
2
Shutter release button
3
Flash
4
Lens
5
Self-timer lamp
6
Microphone
(EX-M20 only)
I Back
7
8
9
0
G
F
E
D
C
21
A
7
Viewfinder
8
Operation/Flash charge
lamp
9
Normal ( ) / Macro ( )
selector
0
Mode selector
A
Strap bar
B
Battery cover
B
C
[ ][ ][ ][ ]
D
[SET] button
E
[DISP] button
F
[MENU] button
G
Monitor Screen
