DOOR PANEL INSTALLATION

Remove the two pieces of mounting hardware attached to
the front of the door and set aside. Place the door panel
lying face down on a protected surface to ensure that the
front is not scratched or damaged.
Position the plastic template as indicated on the template.
One side is for a right-hinge unit and the other side is for a
left-hinge unit. Verify that you are using the correct side.
Once you have located the proper position of the
template, mark the pilot holes indicated on the template.
Remove the template and drill the pilot holes. Next, place
the bottom holes of the bracket over the pre-drilled holes
and secure with the #8 x
bracket has been secured to the pilot holes, drill the
remaining bracket holes and secure the bracket to the
panel with screws provided.
IMPORTANT NOTE: Dimensions are based on a
reveal. A reveal of up to
sions must be adjusted accordingly.
Exercise caution when drilling holes for mounting
hardware. This is especially critical with inset panels.
1
/ " screws provided. After the
2
1
/ " (6) is possible. Panel dimen-
4
Before attaching the door panel to the door, place a screw
in the center of the upper and lower mounting positions,
just enough that the slotted holes on the hinge side door
panel bracket will slide under the heads. These positioning
screws will support the door panel during installation and
adjustment. Refer to the illustration below.
Install the door panel by engaging the tabbed bracket to
the handle side of the door first and then sliding the hinge
side mounting bracket onto the positioning screws on the
hinge side of the door. The panel can be adjusted
up and down and side to side.
Once the door panel is in place and adjusted correctly,
attach the remaining #10 x
mounting bracket and install the magnetic caps as shown
in the illustration below.
1
/ " (3)
8
As the reveal between cabinets and the unit
decreases, the potential exists for severe finger
pinching if fingers are placed in the opening when
the door is closing.

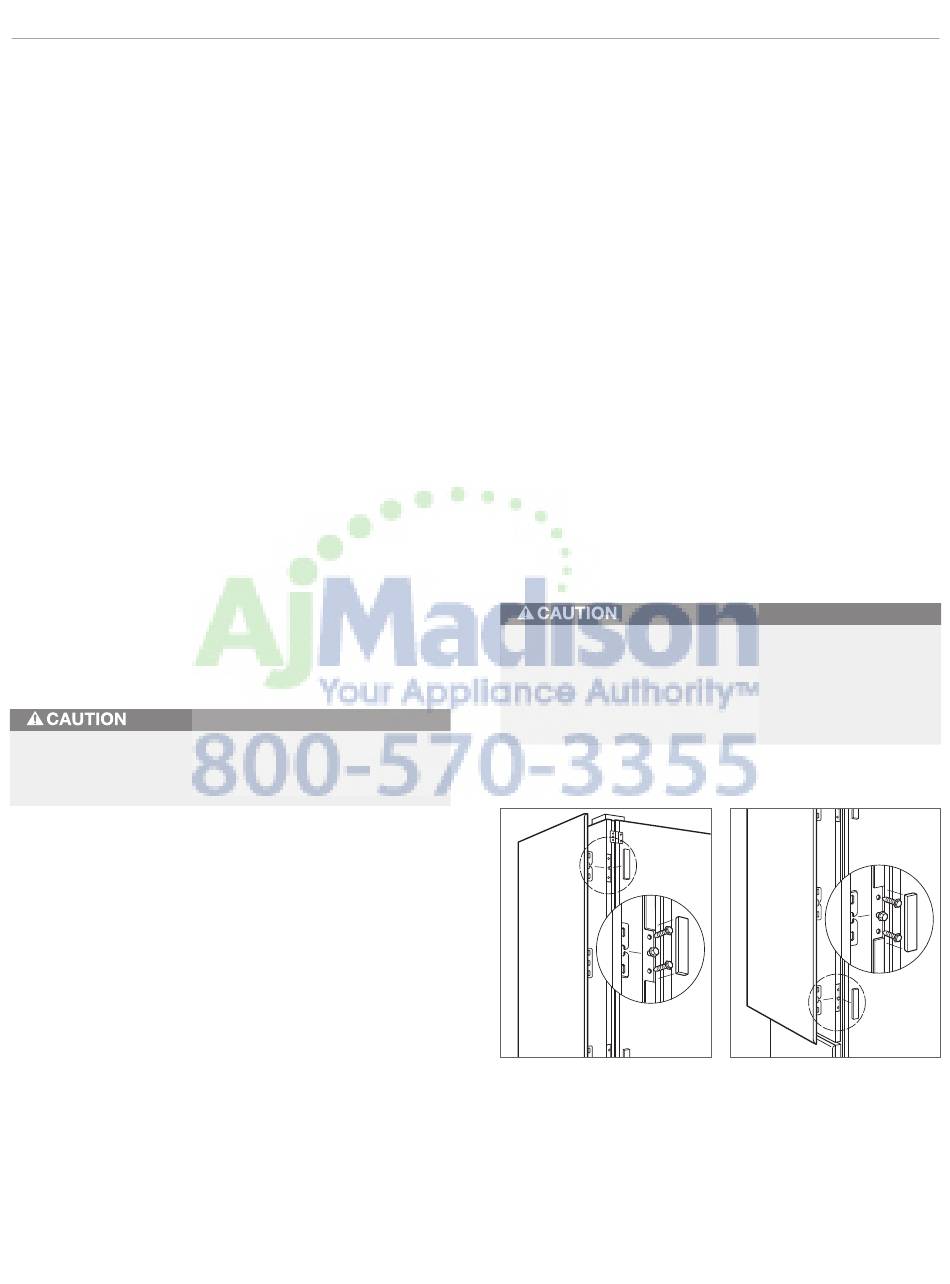

Column mounting position.
subzero.com/specs
1
1
/ " screws to the hinge side
2
Tall model mounting position.
17
/ " (6)
4
