Integrated Installation

Molding Installation

Install the decorative white molding strips to the top and
sides of the integrated unit for a finished look. The top
molding strip, used on column and tall models, must be
installed before the side molding can be attached. The top
molding strip is held in place by double-sided velcro. The
side molding strips snap into place over brackets attached

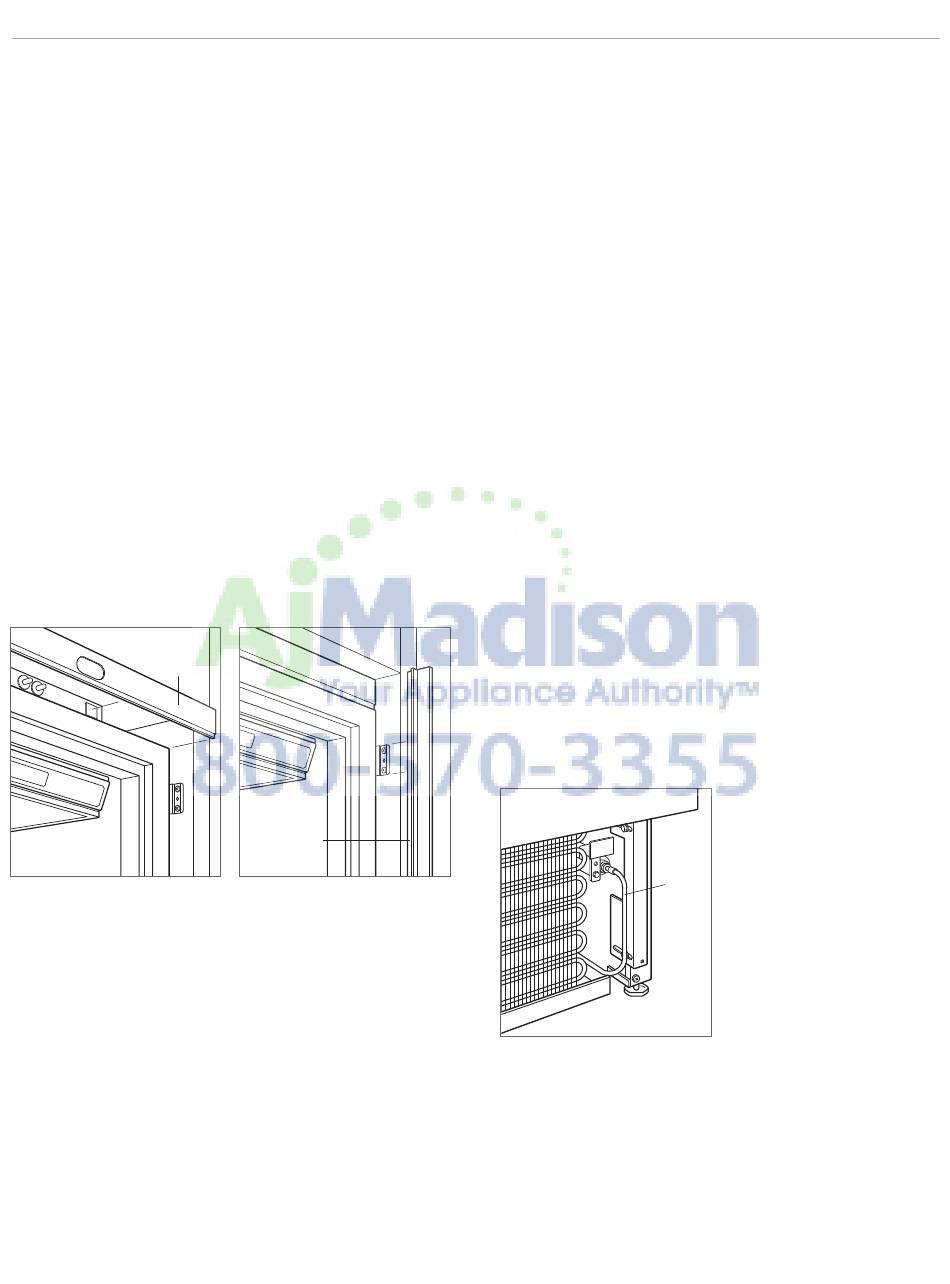

to the side of the unit. Refer to the illustrations below for
positioning. For installations where units are side by side,
refer to dual installations on page 18.
If you choose, the molding strips may be painted to match
surrounding cabinetry. Follow these steps: Rough up the
surface to be painted with fine grit sandpaper. Wipe with
alcohol to ensure that the surface is clean and dry. Use an
appliance or industrial grade, oil base, high gloss enamel
paint.
TOP
MOLDING
Top molding.
SIDE
MOLDING
Side molding.

Water Line Connection

QUICK CONNECT WATER VALVE
For units with an ice maker, the quick connect water valve
and PEX tubing are located on the bottom right side of the
unit.
To connect the ice maker water line, attach the union
fitting to the copper house water supply line. Pull the
coiled gray PEX tubing with red cap and captured nut
toward the house water supply line. Remove and discard
the red cap. Then attach the tubing to the union with the
nut. Tighten all connections. Recoil the excess tubing
under the unit. Refer to the illustration below.
Turn on the water supply and check all fittings for leaks.
Make certain the electrical harness is attached to the
solenoid.
An in-line filter is required when water conditions have
a high sediment content.
The ice maker will not fill with water immediately. Allow 24
hours for proper ice production. The first container of ice
should be discarded. As with any new connection, there
may be impurities in the ice from the water supply line.
PEX
TUBING
Water line connection.
