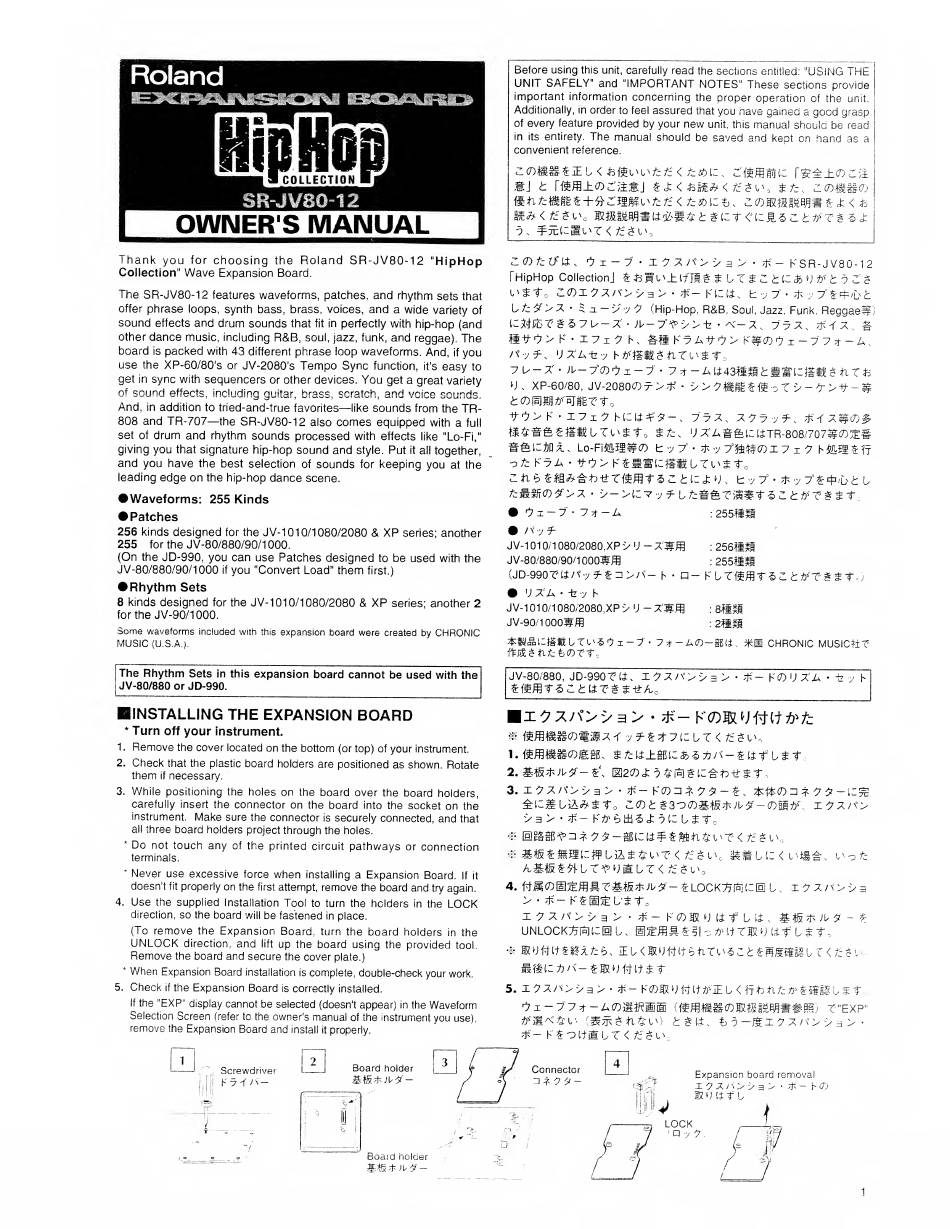

Roland HipHop SR-JV80-12 Owner's Manual

OWNER'S
MANUAL
I
Thank
you
for
choosing
the
Roland SR-JV80-12 "HipHop
Collection"
Wave
Expansion
Board.
The SR-JV80-12
features
waveforms,
patches,
and
rhythm
sets
that
offer
phrase
loops, synth bass, brass, voices,
and a
wide
variety of
sound
effects
and drum sounds
that
fit
in
perfectly with hip-hop (and
other
dance
music, including
R&B,
soul, jazz, funk,
and
reggae).
The
board
is
packed
with
43
different
phrase loop waveforms. And,
if
you
use
the XP-60/80's
or
JV-2080's
Tempo Sync
function,
it's
easy
to
get
in
sync
with sequencers
or other devices.
You
get
a
great variety
of
sound
effects,
including
guitar,
brass, scratch,
and
voice sounds.
And,
in
addition
to tried-and-true favorites
—
like
sounds
from
the
TR-
808 and
TR-707—
the
SR-JV80-12
also
comes
equipped
with
a
full
set
of
drum and
rhythm sounds processed
with effects
like
"Lo-Fi,"
giving you
that signature hip-hop
sound and
style.
Put
it
all
together,
and you have
the best selection
of
sounds
for
keeping you
at
the
leading
edge on
the hip-hop dance
scene.
•Waveforms:
255 Kinds
•
Patches
256 kinds designed
for
the JV- 101
0/1
080/2080
&
XP
series; another
255
for
the
J
V-80/880/90/1 000.
(On
the
JD-990, you can use Patches designed
to
be used
with the
J
V-80/880/90/1 000
if
you "Convert Load" them
first.)
•
Rhythm
Sets
8 kinds
designed
for
the JV- 101
0/1
080/2080
&
XP
series; another
2
for the
JV-90/1000.
Some
waveforms
included with
this
expansion board
were created
by
CHRONIC
MUSIC
(U.S.A.).
The Rhythm
Sets
In this
expansion board cannot be used
with the
JV-80/880 or JD-990.
INSTALLING THE
EXPANSION BOARD
*
Turn
off
your
instrument.
1.
Remove
the cover located on
the
bottom
(or
top) of your
instrument.
2.
Check
that the
plastic
board holders are positioned
as shown. Rotate
them
if
necessary.
3.
While
positioning the holes on
the
board over
the board
holders,
carefully insert the
connector on
the board
into the socket
on
the
instrument.
Make
sure
the connector
is
securely connected, and
that
all
three
board
holders
project
through
the holes.
*
Do
not touch any
of the printed
circuit
pathways
or connection
terminals.
* Never use
excessive
force
when
installing
a Expansion
Board.
If it
doesn't
fit
properly on the
first
attempt,
remove
the board and
try
again.
4.
Use
the
supplied
installation
Tool
to turn the holders
in
the
LOCK
direction,
so the board
will
be
fastened
in
place.
(To remove
the
Expansion
Board,
turn the
board
holders
in
the
UNLOCK
direction,
and
lift
up
the
board using
the provided
tool.
Remove
the board and secure
the cover
plate.)
*
When
Expansion Board
installation
is
complete, double-check
your work.
5.
Check
if
the Expansion Board
is
correctly
installed.
If
the
"EXP"
display cannot be
selected (doesn't appear)
in the
Waveform
Selection Screen
(refer to
the owner's manual
of the instrument you
use),
remove
the Expansion Board and
install
it
properly.
1
Screwdriver
Board holder
Before using
this unit, carefully
read
the sections
entitled:
^'USING
THE
UNIT SAFELY"
and
"IMPORTANT NOTES"
These
sections provide
important information concerning
the proper operation
of
the
unit.
Additionally,
in
order
to feel
assured
that you have gained
a
good
grasp
of
every feature
provided by your
new
unit,
this
manual
should be read
in its
entirety.
The manual
should be saved and
kept on hand
as a
convenient
reference.
