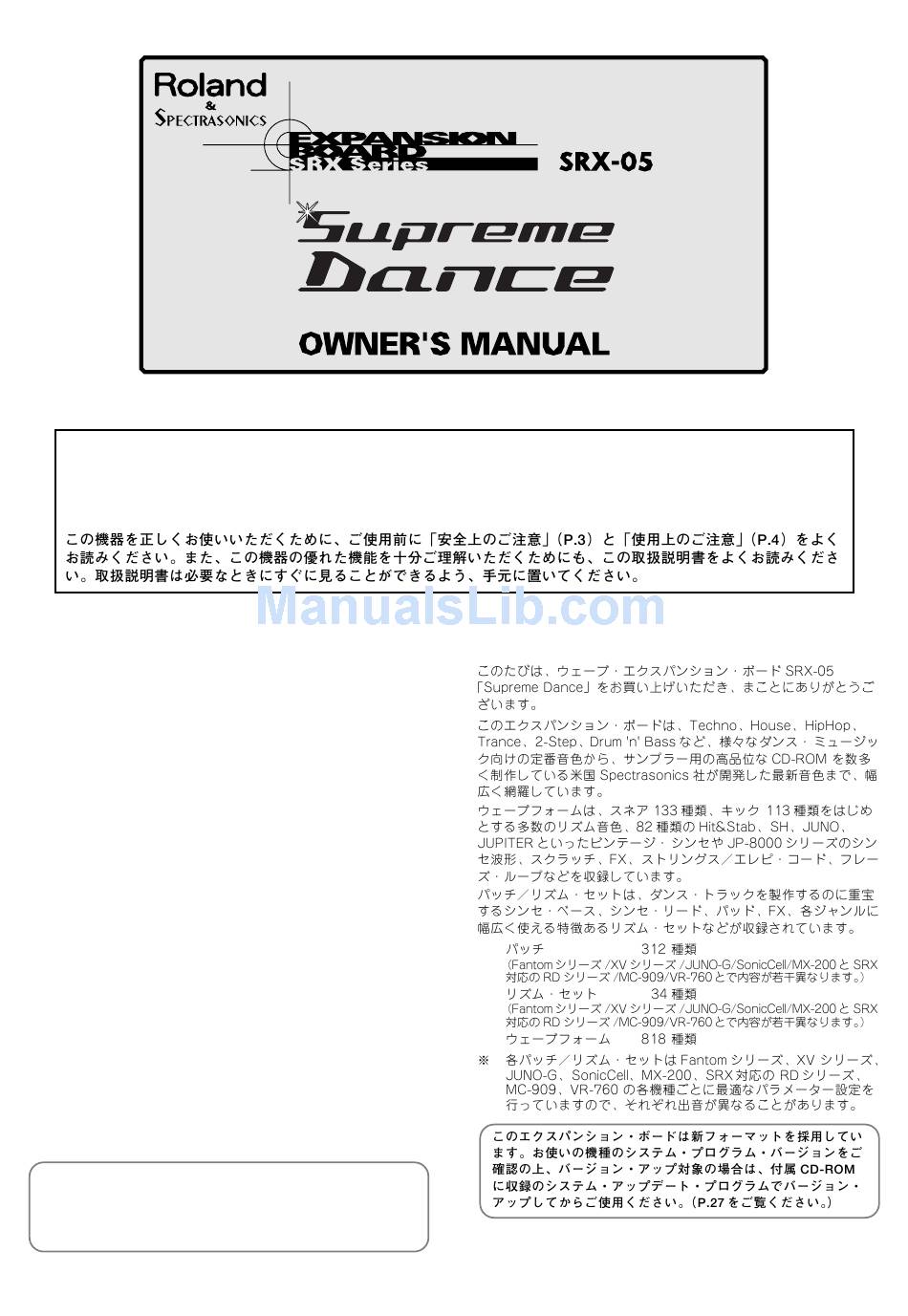

Roland Supreme Dance SRX-05 Owner's Manual
  1. Manuals
  2. Brands
  3. Roland Manuals
  4. Computer Hardware
  5. SRX-05 Supreme Dance
  6. Owner's manual

Roland Supreme Dance SRX-05 Owner's Manual

Expansion board srx series
Hide thumbs Also See for Supreme Dance SRX-05:
Table of Contents

Advertisement

Quick Links

Download this manual
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT
NOTES" (p. 2; p. 4). These sections provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new
unit, this manual should be read in its entirety. The manual should be saved and kept on hand as a convenient
reference.
Thank you, and congratulations on your choice of the SRX-05
"Supreme Dance" Wave Expansion Board.
This expansion board provides a huge variety of tried-and-true
sounds geared for dance music, whether it be Techno, House,
HipHop, Trance, 2-Step, or Drum 'n' Bass. In addition, it also
includes some of the latest sounds developed by Spectrasonics, the
American company that is known for its range of high-quality CD-
ROMs for samplers.
The SRX-05 includes a great number of rhythm sounds, including
133 different snare sounds and 113 kick sounds, along with 82
vintage synth and JP-8000 waveforms like Hit&Stab, SH, JUNO, and
JUPITER, scratch sounds, FX, strings/electric piano chords, phrase
loops, and more.
The Patches and Rhythm Sets include synth bass, synth lead, pads,
and FX patches—all indispensable when creating dance tracks.
Also included are special Rhythm Sets that you can use in a wide
variety of musical genres.

• Patches:

312
(The contents for the Fantom series/XV series/JUNO-G/SonicCell/MX-
200 and the RD series with SRX slots/MC-909/VR-760/G-70/E-80 are
slightly different.)

• Rhythm Sets:

(The contents for the Fantom series/XV series/JUNO-G/SonicCell/MX-
200 and the RD series with SRX slots/MC-909/VR-760/G-70/E-80 are
slightly different.)

• Waveforms:

818
* The parameter settings for Patches and Rhythm Sets are optimized for
the Fantom series, XV series, JUNO-G,
with SRX slots, MC-909, VR-760, G-70, and E-80 models, so there
are some minor differences in the sounds each instrument produces.
This expansion board utilizes a new format. Check the
system program version for your instrument, and if a
relevant upgrade is available, upgrade your instrument
using the appropriate system update program on the
included CD-ROM. (See p. 27.)
34
MX-200, RD series
SonicCell,
•
•
•
1

Advertisement

Table of Contents
loading

Related Manuals for Roland Supreme Dance SRX-05

Summary of Contents for Roland Supreme Dance SRX-05

  • Page 1 Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and “IMPORTANT NOTES” (p. 2; p. 4). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, this manual should be read in its entirety.
  • Page 2 • Before installing the SRX-05, you must first always specific instructions directing you to do so). Refer turn off the Fantom series/XV series/JUNO-G/ all servicing to your retailer, the nearest Roland SonicCell/MX-200/RD series with SRX slots/MC- Service Center, or an authorized Roland 909/VR-760/G-70/E-80 and unplug its power cord.

  • Page 4: Important Notes

    When you purchase the SRX-05 expansion board from an authorized Roland dealer, the included sounds and samples are licensed, not sold, to you by Roland Corporation, for commercial use in music production, public performance, broadcast, etc. You may use any of the included phrases and/or samples in a commercial or non-commercial recording without paying any additional license fees.
  • Page 5 INSTALLING THE WAVE EXPANSION BOARD * Turn off your instrument. 1. Remove the cover located on the top (or rear) of your instrument. 2. Insert the Wave Expansion Board connector into a connector for an SRX Series slot, while simultaneously inserting the board holders into the holes in the Wave Expansion Board.

  • Page 6: For Fantom Series/Xv Series/Juno-G/Soniccell/Mx

    Patch List (1) For Fantom series/XV series/JUNO-G/SonicCell/MX-200 (BANK SELECT MSB: 93; LSB: 4 [No.1–128], LSB: 5 [No.129–256], LSB: 6 [No.257–312]) No. Name Voices Category No. Name Voices Category No. Name Voices Category SecretDancer BEAT&GROOVE Acid Bass 2 SYNTH BASS 105 Tropic Slice PULSATING Mean Streets BEAT&GROOVE...

  • Page 7: Table Of Contents

    Patch List (2) For Fantom series/XV series/JUNO-G/SonicCell/MX-200 (BANK SELECT MSB: 93; LSB: 4 [No.1–128], LSB: 5 [No.129–256], LSB: 6 [No.257–312]) No. Name Voices Category No. Name Voices Category No. Name Voices Category 157 Smoky Hit HIT&STAB 209 Beautiful:-] SOFT PAD 261 LightStrings STRINGS 158 Fist Hit...
  • Page 8 Patch List (3) For RD series (with SRX slots)/MC-909/VR-760/G-70/E-80 (BANK SELECT MSB: 93; LSB: 4 [No.1–128], LSB: 5 [No.129–256], LSB: 6 [No.257–312]) Recommended No. Name Voices Category Tempo No. Name Voices Category No. Name Voices Category SecretDancer 5 BEAT&GROOVE Acid Bass 2 1 SYNTH BASS 105 Talkativenes 3 PULSATING...

  • Page 9: Steam Pad

    Patch List (4) For RD series (with SRX slots)/MC-909/VR-760/G-70/E-80 (BANK SELECT MSB: 93; LSB: 4 [No.1–128], LSB: 5 [No.129–256], LSB: 6 [No.257–312]) No. Name Voices Category No. Name Voices Category No. Name Voices Category 157 Smoky Hit HIT&STAB 209 Twin Sqr Pad SOFT PAD 261 LightStrings STRINGS...
  • Page 10 Rhythm Set Key Assign (1) For Fantom series/XV series/JUNO-G/SonicCell/MX-200 1. PhatTrak 2. Euro 3. Urban 4. Tight 5. BitzOHitz 6. Intl.Tek 7. GloblHous Note No. Gan Kick Mellow Kick 808 DryKick5 106 Kick 1 PhraseMenu Club Kick Dance Kick 8 Vinyl Kick L-RiderKick2 Metal Kick...
  • Page 11 Rhythm Set Key Assign (2) For Fantom series/XV series/JUNO-G/SonicCell/MX-200 8. BreakBts 9. Trip 10. Bright 11. Soulful 12. LiteStep 13. 4onFloor 14. Street Note No. 70s Kick 2 LoBit Kick 2 FunkB Kick Vinyl Kick MG Kick 1 Gummo Kick 2 Hybrid Kick3 Swanky Kick Dance Kick 8...

  • Page 12: Kick Menu

    Rhythm Set Key Assign (3) For Fantom series/XV series/JUNO-G/SonicCell/MX-200 15. Machine 16. LoTek 17. Solid 18. TekTrio 19. TekQuarto 20. Hit 21. Kick Note No. Menu Menu 1 106 Kick 1 106 Kick 2 Metal Kick Gummo Kick 1 808 DryKick2 Bobs Slide Craze Kick 1 Craze Kick 2...

  • Page 13: Snare Menu

    Rhythm Set Key Assign (4) For Fantom series/XV series/JUNO-G/SonicCell/MX-200 22. Kick 23. Snare 24. Snare 25. Snare 26. RimShot 27. Tom 28. HiHats Note No. Menu 2 Menu 1 Menu 2 Menu 3 Menu Menu Menu LoBit Kick 1 HipHop SD 1 Old SD2 mb Attack SD2 R&B Crs Stk1...
  • Page 14 Rhythm Set Key Assign (5) For Fantom series/XV series/JUNO-G/SonicCell/MX-200 29. Clap 30. Cymbal 31. Perc. 32. FX 33. SynPerc. 34. All TR Note No. Menu Menu Menu Menu Menu Menu Single HClp1 Pop Crash1 WindChime Up Electric Saw US Metal 2 707 DryKick1 Single HClp2 Pop Crash2...
  • Page 15 Rhythm Set Key Assign (6) For RD series (with SRX slots)/MC-909/VR-760/G-70/E-80 1. PhatTrak 2. Euro 3. Urban 4. Tight 5. BitzOHitz 6. Intl.Tek 7. GloblHous Note No. Gan Kick Mellow Kick 808 DryKick5 106 Kick 1 PhraseMenu Club Kick Dance Kick 8 Vinyl Kick L-RiderKick2 Metal Kick...
  • Page 16 Rhythm Set Key Assign (7) For RD series (with SRX slots)/MC-909/VR-760/G-70/E-80 8. BreakBts 9. Trip 10. Bright 11. Soulful 12. LiteStep 13. 4onFloor 14. Street Note No. 70s Kick 2 LoBit Kick 2 FunkB Kick Vinyl Kick MG Kick 1 Gummo Kick 2 Hybrid Kick3 Swanky Kick...
  • Page 17 Rhythm Set Key Assign (8) For RD series (with SRX slots)/MC-909/VR-760/G-70/E-80 15. Machine 16. LoTek 17. Solid 18. TekTrio 19. TekQuarto 20. Hit 21. Kick Note No. Menu Menu 1 106 Kick 1 106 Kick 2 Metal Kick Gummo Kick 1 808 DryKick2 Bobs Slide Craze Kick 1...
  • Page 18 Rhythm Set Key Assign (9) For RD series (with SRX slots)/MC-909/VR-760/G-70/E-80 22. Kick 23. Snare 24. Snare 25. Snare 26. RimShot 27. Tom 28. HiHats Note No. Menu 2 Menu 1 Menu 2 Menu 3 Menu Menu Menu LoBit Kick 1 HipHop SD 1 Old SD2 mb Attack SD2...
  • Page 19 Rhythm Set Key Assign (10) For RD series (with SRX slots)/MC-909/VR-760/G-70/E-80 29. Clap 30. Cymbal 31. Perc. 32. FX 33. SynPerc. 34. All TR Note No. Menu Menu Menu Menu Menu Menu Single HClp1 Pop Crash1 WindChime Up Electric Saw US Metal 2 707 DryKick1 Single HClp2...
  • Page 20 Waveform List (1) No. Name No. Name No. Name No. Name No. Name PhraseMenuL * ** JP6 DynPLS P 101 StrScaleMajR 151 BrassHit 7 L 201 Chord Hit 1 PhraseMenuR * ** JP6 DynPLS N 102 StrChd MenuL * ** 152 BrassHit 7 R 202 Chord Hit 2L 080:BladeBtL...
  • Page 21 Waveform List (2) No. Name No. Name No. Name No. Name No. Name 251 Pretty Hit L 301 Oh F 351 Heavy Kick 1 401 Craze Kick 4 451 LoBtHf SD1mb 252 Pretty Hit R 302 R&B Kick 1 352 Heavy Kick 2 402 Layer Kick 6 452 LoBtHf SD2mb 253 Smoky Hit L...
  • Page 22 Waveform List (3) No. Name No. Name No. Name No. Name No. Name 501 Funky SD 551 808 Dry RSht 601 Comp CHH 2 651 909 Dry Clap 701 HiConga Slap 502 Layer SD3 552 909 Dry RSht 602 Comp CHH 3 652 Pop Crash1 702 HiConga Cls 503 Layer SD4 mb...

  • Page 23: Strchd Menu

    Waveform List (4) No. Name No. Name No. Name No. Name No. Name 751 Cartn Boing2 766 Spoon Hit 781 Swish Rope 4 796 SH2 S Zap 4 811 US SweepD L1 752 LoTek Bit L 767 Pod Hit 782 Metal Atk Lo 797 SH2 S Zap 5 812 US SweepD S1 753 LoTek Bit R...
  • Page 24 B.P.M. Conversion Table/B.P.M. By changing the pitch, you can change the B.P.M. (tempo). The B.P.M. used when sampling the original (Original B.P.M.) is reproduced by the C4 key when both "c.t." (Coarse Tune) and "f.t." (Fine Tune) are at "0." If you want to obtain twice the tempo of the original B.P.M., either play the C5 key (key one octave above), or set "c.t."(Coarse Tune) to +12 and play the C4 key.
  • Page 25 B.P.M. Conversion Table (1) Original B.P.M. 80 Original B.P.M. 93 Original B.P.M. 96 key/c.t key/c.t key/c.t key/c.t key/c.t key/c.t 40 C 3/-12 140 A#4/+10 -31 40 A 2/-15 +39 140 G 4/+07 +08 40 A 2/-15 -16 140 G 4/+07 -47 41 C 3/-12 +43 141 A#4/+10 -19 41 A#2/-14 -18...
  • Page 26 B.P.M. Conversion Table (2) Original B.P.M. 120 Original B.P.M. 135 key/c.t key/c.t key/c.t key/c.t 40 F 2/-19 -02 140 D#4/+03 -33 40 D#2/-21 -06 140 C#4/+01 -37 41 F 2/-19 +41 141 D#4/+03 -21 41 D#2/-21 +37 141 C#4/+01 -25 42 F#2/-18 -17 142 D#4/+03 -09 42 E 2/-20 -21...
  • Page 27 * Take proper care of the included CD-ROM; it will not be reissued. * The system programs on the included CD-ROM are the latest versions, as of January, 2002. For information regarding newer versions than those on this disk, you should contact the nearest Roland Service Center.
  • Page 28 Copyright © 2002 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. © 40455201 07-08-6N...
