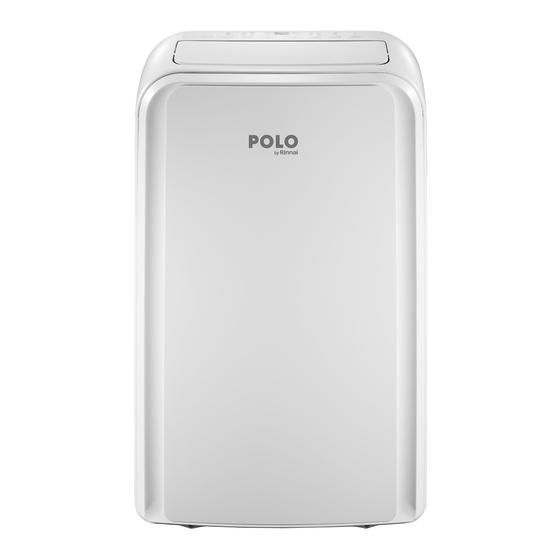

Rinnai POLOCOOL PC35CWF Operation & Installation Manual

Rinnai POLOCOOL PC35CWF Operation & Installation Manual

Portable room air conditioner
Hide thumbs Also See for POLOCOOL PC35CWF:

Advertisement

Quick Links

POLOCOOL Portable Room Air Conditioner
Operation & Installation Manual
MODEL
PC35CWF
REFRIGERANT
R290
by
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the POLOCOOL PC35CWF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rinnai POLOCOOL PC35CWF

  • Page 1 MODEL REFRIGERANT PC35CWF R290 POLOCOOL Portable Room Air Conditioner Operation & Installation Manual Page 1...
  • Page 2 For continued safety of this appliance it must be installed and maintained in accordance with the manufacturer’s instructions. Before proceeding with the operation of your new Portable Room Air Conditioner, please read this manual thoroughly and gain a full understanding of the requirements, features and operation of your new appliance.
  • Page 3: Table Of Contents

    Table of Contents Safety Precautions Important Information ..........................04 Safety Precautions ..........................05 Introduction Introduction ............................13 Warnings and Important Information .....................14 Specifications Specifications ............................14 Mandatory Inspection Prior to Installation .....................14 Installation Instructions Preparation ............................15 Design Notice ............................15 Ambient Temperature Range For Unit Operating ..................15 Exhaust Hose Installation ........................15 Choosing The Right Location ........................16 Recommended Installation ........................16...
  • Page 4: Important Information

    Important Information Important Issues Regarding the Proper Use of this Air Conditioner Please contact your supplier for advice before returning unit Use this air conditioner only as described in this instruction manual. This appliance is fitted with a special safety device. When the compressor switches off or when the appliance is first turned on, this device prevents the compressor from switching on again for at least three minutes.
  • Page 5: Safety Precautions

    Safety Precautions Safety Precautions Read Safety Precautions Before Operation and Installation Read Safety Precautions before Operation and Installation. To prevent death or injury to the user or other people and property damage, the To prevent death or injury to the user or other people and property damage, the following instructions MUST be following instructions must be followed.
  • Page 6 In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning. • Your air conditioner should be used in such a way that it is protected from moisture. • e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid.
  • Page 7: Disposal Guidelines

    Disconnect the power if strange sounds, smell, or smoke comes from it. • • Do not press the buttons on the control panel with anything other than your fingers. Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has •...
  • Page 8 Using R290 Refrigerant WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). Do not pierce or burn.
  • Page 9 1.Transport of equipment containing flammable refrigerants See transport regulations 2.Marking of equipment using signs See local regulations 3.Disposal of equipment using flammable refrigerants See national regulations. 4.Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions. 5.Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
  • Page 10 8)Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: The charge size is in accordance with the room size within which the refrigerant containing parts are installed;...
  • Page 11 9.Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. 10.Detection of flammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
  • Page 12 14.Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.
  • Page 13: Introduction

    Introduction This portable air conditioner can alter the room temperature and humidity. It has multiple functions of cooling, dehumidifying (drying) and fan ventilation, and can be moved from room to room and transported from building to building easily. In addition, the desired humidity level can be set between 35-85%. The air conditioner can maintain set room indoor air temperatures between 17°C and 30°C.
  • Page 14: Specifications

    For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be installed or operated under any circumstances. Installation of damaged or incorrect appliances may contravene local government regulations. Rinnai disclaims any liability or responsibility whatsoever in relation to the installation or operation of damaged or incorrect appliances. Page 14...
  • Page 15: Installation Instructions

    Installation Instructions Installation Instructions Preparation NOTE: All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote controller.
  • Page 16: Choosing The Right Location

    The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For COOL or AUTO mode, an exhaust fan must be installed. For FAN or DRY mode, the exhaust fan must be removed. Choosing The Right Location Your installation location should meet the following requirements: - Make sure that you install your unit on an even surface to minimise noise and vibration.
  • Page 17: Tools Needed

    in a kitchen, or in a room with high ceilings. After you’ve found the right cooling capacity or your room, you can look at other features. Tools Needed -Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors; -Saw (On some models, to shorten window adaptor for narrow windows) Accessories NOTE: Items with (*) are on some models.
  • Page 18: Window Installation Kit

    Window Installation Kit W indow installation: Step One: Preparing the Exhaust Hose assembly Model A Press the exhaust hose (or extended exhaust hose) Exhaust hose Exhaust hose assembly into the window slider adaptor (or wall exhaust adaptor) and unit adaptor, clamp automatically by elastic buckles of the adaptors.
  • Page 19: Installation

    Installation Installation NOTE: Once the Exhaust Hose assembly and Adjustable Window Slider are prepared, choose from one of the following two installation methods. Type 1: Hung Window or Sliding Window Installation(For some models) Foam seal B Foam seal B (Adhesive type-shorter) (Adhesive type-shorter) Foam seal A (Adhesive type)
  • Page 20 MODEL A 5. Insert the window slider adaptor into the hole of the window slider. NOTE: To ensure proper function, DO NOT over extend or bend the hose. Make sure that there is no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to the exhaust system works properly.
  • Page 21: Operating Instructions

    Operating Instructions Control Panel Features NOTE: The following control panels are for explanation purpose only. The control panel of the unit you purchased may be slightly different according to the models. Your machine may not contain some indicators or buttons. The actual shape shall prevail. NOTE: On some models is instead of °F.
  • Page 22: Operation Instructions

    and the LED DISPLAY shows 'OF' for 3 seconds, ION/Fresh feature (on some models) press SWING and UP (+) buttons at the same Press FAN button for 3 seconds to initiate time to turn on Wireless function and the LED ION/FRESH feature and the ION/FRESH light DISPLAY shows 'On' for 3 seconds.
  • Page 23: Other Features

    DRY operation initiate the Auto-off stop program, the TIMER OFF · Press the "MODE" button until the "DRY" indicator indicator light illuminates. Press the UP or down light comes on. button to select the desired time. Press the TIMER · Under this mode, you cannot select a fan speed or button again within 5 seconds, the Auto-on start adjust the temperature.
  • Page 24 AIR FLOW DIRECTION ADJUSTMENT The louver can be adjusted automatically. Adjust the air flow direction automatically: · When the Power is ON, the louver opens fully. · Press the SWING button on the panel or remote Remove the lower drain plug controller to initiate the Auto swing feature.
  • Page 25: Remote Control Operation

    Remote Control Operation Remote Control Specifications Model RG57H4(B)/BGEF Rated Voltage 3.0V (Dry batteries R03/LR03×2) Signal Receiving Range Range -5°C~60°C ON/OFF SHORT MODE TIMER TEMP TIMER SLEEP SWING NOTE Buttons design is based on typical model and might be slightly different from the actual one you purchased, the actual shape shall prevail.
  • Page 26: Remote Control Functions

    Remote Control Functions Function Buttons Before you begin using your new air conditioner, make sure to familiarise yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual. SHORT CUT ON/OFF Sets and activates your...
  • Page 27: Handling The Remote Control

    Handling the Remote Control NOT SURE WHAT A FUNCTION DOES? TIPS FOR USING REMOTE CONTROL Refer to the How to Use Basic Functions and The remote control must be used within 8 How to Use Advanced Functions sections meters of the unit. of this manual for a detailed description of how to use your air conditioner.
  • Page 28: Remote Control Led Screen Indicators

    Remote LED Screen Indicators Remote LED Screen Indicators Transmission Indicator Lights up when remote sends signal to unit ON/OFF display MODE display Appears when the unit is turned on, Displays the current and disappears when it is turned off mode, including: TIMER OFF display TIMER ON display AUTO...
  • Page 29: How To Use The Basic Functions

    Basic Functions How To Use The Basic Functions SETTING TEMPERATURE The operating temperature range for units is 17-30 C. You can increase or decrease the set temperature in 1 C increments. AUTO operation In AUTO mode, the unit will automatically ON/OFF SHORT select the COOL, FAN or DRY mode...
  • Page 30: Fan Operation

    How To Use The Basic Functions DRY operation (dehumidifying) 1. Press the MODE button to select DRY mode. 2. Set your desired temperature using the Temp or Temp button. 3. Press the ON/OFFbutton to start the unit. NOTE: FAN SPEED can t be changed in ON/OFF SHORT DRY mode.
  • Page 31: Timer Function

    Timer Function Your air conditioning unit has two timer-related functions: TIMER ON- sets the amount of timer after which the unit will automatically turn on. TIMER ON TIMER ON TIMER OFF- sets the amount of time after which the unit will automatically turn off. TIMER ON function The TIMER ON function allows you to set a period of time after which the unit will...
  • Page 32 TIMER OFF function The TIMER OFF function allows you to NOTE: When setting the TIMER ON or set a period of time after which the unit TIMER OFF functions, up to 10 hours, will automatically turn off, such as when the time will increase in 30 minute you wake up.
  • Page 33 Setting both TIMER ON and TIMER OFF at the same time Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM.
  • Page 34: Your Remote Display

    Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see the figure below) Your remote display Timer on Timer is set To turn ON 6 hours from current time Timer off Timer is set to turn OFF 8 hours from current time Unit turns Unit turns...
  • Page 35: Advanced Functions

    Advanced Functions SLEEP Function The SLEEP function is used to decrease energy use while you sleep (and don t need the same temperature settings to stay comfortable). Note: The SLEEP function is not available in FAN or DRY mode. ON/OFF SHORT TIMER MODE...
  • Page 36: Wireless Operation

    Wireless Operation Visit your device app store (iOS or Android) to download the NetHome Plus APP. Once installed follow the procedure below to pair the device with your appliance. Please ensure your mobile device is connected to Wireless router. Also, the Wireless router has already connected to Internet before doing user registration and network configuration.
  • Page 37: Maintenance

    Maintenance Maintenance Safety Precautions · Always unplug the unit before cleaning or servicing. · DO NOT use flammable liquids or chemicals to clean the unit. · DO NOT wash the unit under running water. Doing so causes electrical danger. · DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new cord from the manufacturer.
  • Page 38: Store The Unit When Not In Use

    Store the unit when not in use · Drain the unit’s water collection tray according to the instructions in the following section. · Run the appliance on FAN mode for 12 hours in a warm room to dry it and prevent mold. ·...
  • Page 39: Troubleshooting Tips

    Troubleshooting Tips Troubleshooting Tips Problem Possible Causes Solution The Water Collection Tray is full. Turn off the P1 Protection Code unit, drain the water from the Water Collection Tray and restart the unit. Unit does not turn on when pressing In COOL mode: room ON/OFF button temperature is lower than...
  • Page 40: Terms Of Warranty

    Terms of Warranty - Australia Rinnai Australia Pty. Ltd. ABN 74 005 138 769, 100 Atlantic Drive, Keysborough VIC 3173. DEFINITIONS The terms listed below shall have the following meanings: “Authorised Service Representative” means an independent service contractor authorised by Rinnai or Rinnai service personnel.
  • Page 41 Normal Business Hours by an Authorised Service Representative. Repair by persons other than an Authorised Service Representatives may void the Warranty. 2.4 Alternatively to clause 2.3 above, Rinnai can at its discretion elect to pay you an amount equivalent to the cost of repairing or replacing the Product.
  • Page 42: Conditions Of Warranty

    7 “Purchaser’s Responsibilities” on page 43; c) notifies Rinnai within 30 days of a defect occurring or, in the case of a latent defect, becoming apparent, that a claim is being made under this Warranty; and d) provides, in support of the claim made under this Warranty, a Proof of Purchase.
  • Page 43: Travel, Transport & Access Costs

    Rinnai to enquire about alternative arrangements. If you wish to make a warranty claim in respect of any fixed Product, please contact Rinnai on the details set out below to make arrangements for an Authorised Service Representative to inspect the product.
  • Page 44 *Cost of a local call may be higher from a mobile phone. (National calls from public phones in Australia are free.) www.mypolo.com.au For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your innai appliance.
