NuAire CYFAN Installation And Maintenance Manual

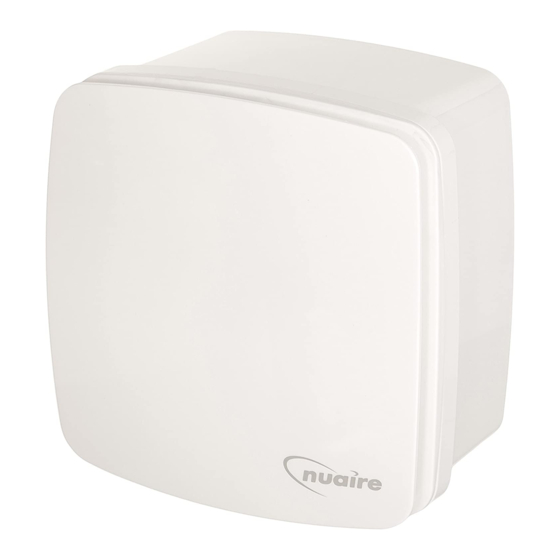

CYFAN
230V/24V DC SELV Surface Mounted &
Semi-Recessed Domestic Extract Fan
Installation and Maintenance Manual
1.0 IMPORTANT SAFETY INFORMATION
•
The provision of the electrical supply and the connection of the unit to the electrical supply must be carried out by a qualified
electrician in accordance with latest edition of the wiring regulations.
•
24V fan units must be installed in accordance with these instructions and IEE Wiring Regulations BS7671 for SELV installations.
•
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
•
All-pole disconnection from the mains as shown in the wiring diagram must be incorporated within the fixed wiring and shall have
a minimum contact separation of 3mm in accordance with latest edition of the wiring regulations.
•
Isolate from power supply before removing any covers. During installation / maintenance ensure all covers are fitted before
switching on the mains supply.
•
Ducting must be securely fixed with screws to the spigot to prevent access to live parts. Duct runs terminating close to the fan must
be adequately protected by suitable guards.
•
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances.
•
This appliance should not be used by children or persons with reduced physical, sensory or mental capabilities or lack of experience
and knowledge, unless they have been given supervision or instruction concerning the safe use of the appliance by a person
responsible for their safety. Children shall not play with the appliance. Cleaning and user maintenance shall not be carried out by
children.
1.1 HAZARD SYMBOLS
REFER TO INSTRUCTION MANUAL
Read and understand the installation and maintenance manual before installing, operating or maintaining this product.
1.2 IMPORTANT INFORMATION
This manual contains important information on the safe and appropriate assembly, transport, commissioning, operation, maintenance,
disassembly and simple troubleshooting of the product.
While the product has been manufactured according to the accepted rules of current technology, there is still a danger of personal
injury or damage to equipment if the following general safety instructions and the warnings contained in these instructions are not
complied with.
•
Read these instructions completely and thoroughly before working with the product.
•
Keep these instructions in a location where they are accessible to all users at all times.
•
Always include the operating instructions when you pass the product on to third parties.
1.3 PERSONAL PROTECTIVE EQUIPMENT
The following minimum Personal Protective Equipment (PPE) is recommended when interacting with Nuaire product:
•
Protective Steel Toed Shoes - when handling heavy objects.
•
Full Finger Gloves (Marigold PU800 or equivalent) - when handling sheet metal components.
•
Semi Fingerless Gloves (Marigold PU3000 3DO or equivalent) - when conducting light work on the unit requiring tactile dexterity.
•
Safety Glasses - when conducting any cleaning/cutting operation or exchanging filters.
•
Reusable Half Mask Respirators - when replacing filters which have been in contact with normal room or environmental air.
Nuaire would always recommend a site specific risk assessment by a competent person to determine if any additional PPE is required.
25.10.2024 I&M No. 671629
| Western Industrial Estate | Caerphilly | CF83 1NA | nuaire.co.uk
Page 1 of 16
