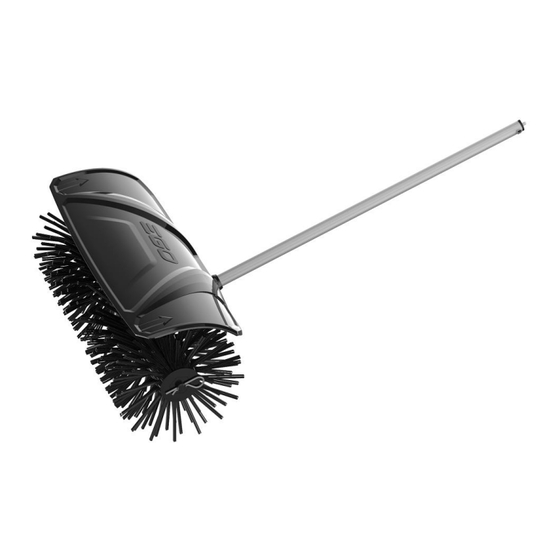

Bristle brush attachment
Hide thumbs Also See for BBA2100:

Advertisement

Quick Links

REPAIR GUIDELINE

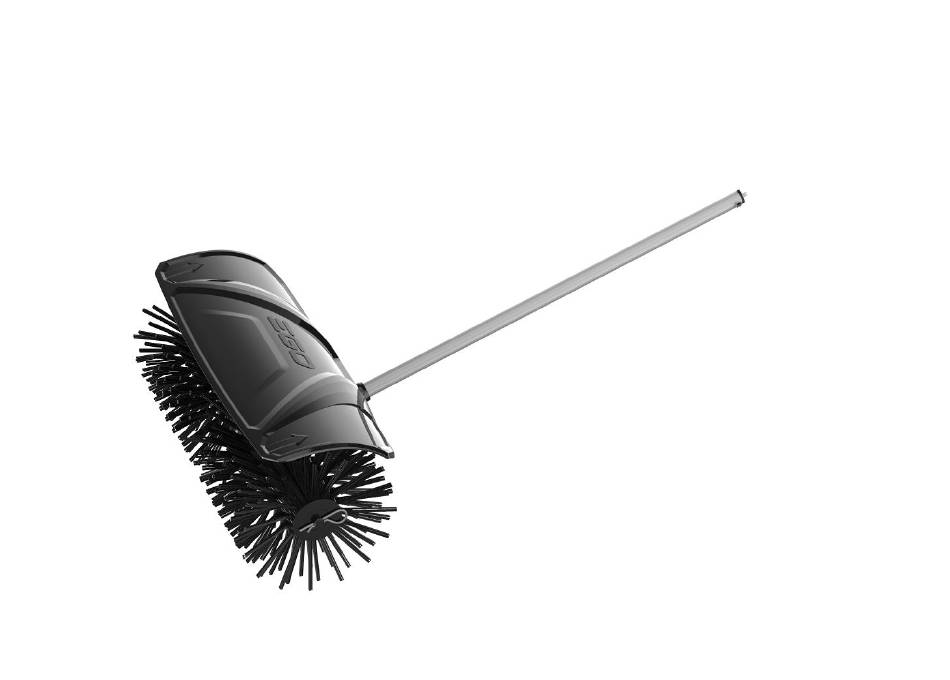

Bristle Brush Attachment_BBA2100
Version: 1
Issue Date: 6/11/2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the BBA2100 and is the answer not in the manual?

Questions and answers

Summary of Contents for EGO BBA2100

  • Page 1 REPAIR GUIDELINE Bristle Brush Attachment_BBA2100 Version: 1 Issue Date: 6/11/2019...
  • Page 2 Table of Contents Contents Page Troubleshooting Tool list Part 1: Replace the Right/Left Brushes Part 2: Replace the Tube Assembly & Gear Case Assembly 8-12...
  • Page 3: Troubleshooting

    Troubleshooting Fault Problem Possible Cause Test & Solution Position The cleaning effect is not The brush part falls off Brush Replace the brush good High Vibration Brush wear discrepancy Brush Replace the brush Noise Reduction of grease in gear Gear Adding grease Improper connection with power Reconnect with the power head...
  • Page 4 Tool List For Repair Tool List SPEC Remark Hexagon Wrench 4mm, 2mm...
  • Page 5 Part 1: Replace the Right/Left Brushes...
  • Page 6 Disassemble the Right/Left Brushes 1. Remove the brushes and the inner sleeves refer to the BBA2100 manual. Inner Sleeve Brush Lock Pin Assembly Cover Brush Hitch Pin Description Part Number Qty. Description Part Number Qty. Hitch pin 5670479001 Inner sleeve...
  • Page 7 Disassemble the Right/Left Brushes Remove the guard assembly refer to the BBA2100 manual. Guard Screw Guard Assembly Description Part Number Qty. Screw 5620334004 5630015001 Guard Assembly 2826717001...
  • Page 8 Part 2: Replace the Tube Assembly & Gear Case Assembly...
  • Page 9 Replace the Tube Assembly & Gear Case Assembly 1. Remove the sleeve from the tube. 2. Remove the brushes, inner sleeves and guard. Replace these if the parts are damaged. Tube Sleeve Description Part Number Qty. Sleeve 3128734001...
  • Page 10 Replace the Tube Assembly & Gear Case Assembly 3. Loosen 2 pcs hexagon socket screws to remove the tube assembly from the gear assembly. If any part is damaged, please replace with a new one. Connecting Piece Tube Assembly Gear Assembly Hexagon Socket Screw Description Part Number...
  • Page 11 Replace the Tube Assembly and Gear Case Assembly 4. Insert the connecting piece into the hole of the tube. 5. Connect the tube assembly with the gear case assembly and tighten the two hexagon socket screws. Connecting piece Gear case assembly Hexagon Socket Screw...
  • Page 12 Replace the Tube Assembly & Gear Case Assembly 6. Assemble the brushes, inner sleeves and guard refer to the BBA2100 manual. THE END Upon continuous product improvement, please using the latest SBOM & Parts list to order spare parts if necessary.
