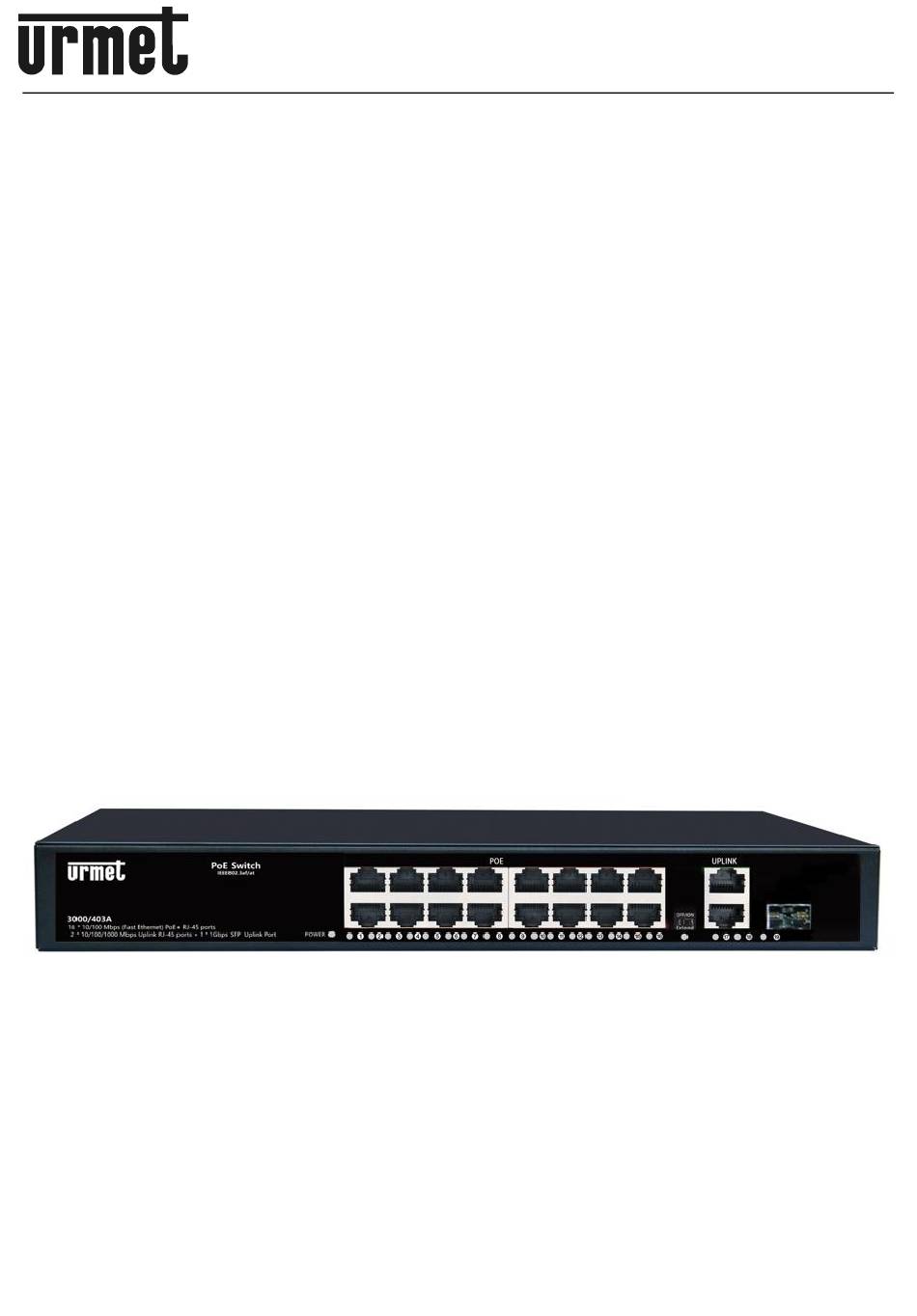

Qualora nel collegare lo switch tramite la porta 19 non si avesse comunicazione, è necessario muovere il dip-switch EXTEND e poi riportarlo allo stato desiderato. Il 3000/403A è uno switch ethernet PoE+ unmanaged da 16 porte, le quali sono classificate come apparecchiature PSE.

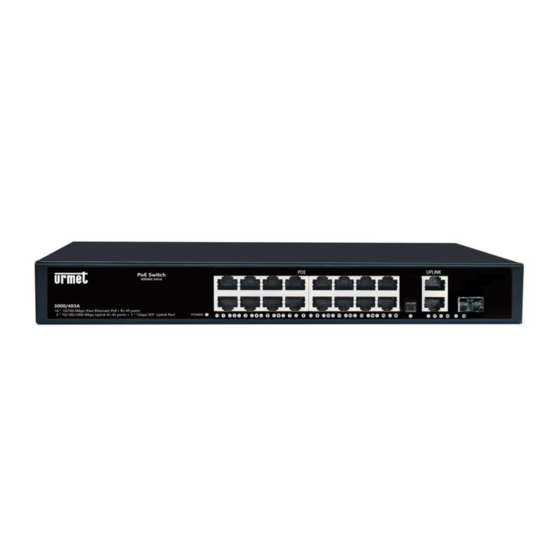

Switch PoE+ 16 porte 10/100 Mbps, switch 16 porte Denominazione prodotto: ethernet con 2 porte uplink 10/100/1000 Mbps e slot (sfp) da 1 gigabit Tipologia di prodotto 3000/403A Alimentazione simultanea di standard IEEE802 .3af o Classe POE IEEE802 .3at IEEE802.3af :15,4W (uscita con porta singola) Parametro di alimentazione IEEE802.3at :30W (uscita con porta singola)
Page 4
Cavo: cavi cat 5 UTP o superiore Distanza di trasmissione: ≤100m, fino a 250m con il dip-switch EXTEND su ON IEEE802.3i 10BASE-T IEEE802.3u 100BASE-TX Protocollo rete standard IEEE802.3x Controllo di flusso IEEE802.3af/at Power over Ethernet (PoE) Modalità di inoltro: store-and-forward Larghezza banda: 8,8 Gbps (non-bloccante) Velocità...
In tests, the 3000/403A was found to be suitable for powering 802.3af/at terminals without causing damage to the connected equipment, providing up to 30 watts on a single port. The 3000/403A significantly reduces additional electrical wiring costs for powering remote network devices such as: wireless LAN access points, video surveillance cameras, etc.
Page 6
16 port 10/100Mbps PoE+ Switch ,16 port ethernet switch Product Name with 2 10/100/1000Mbps uplink port s and 1 gigabit (sfp) slots Product Type 3000/403A Simultaneously supply IEEE802 .3af or IEEE802 .3at POE character standard IEEE802.3af :15.4W (single port output) POE power supply parameter IEEE802.3at :30W (single port output)
Page 7
Transmission distance:≤100m, up to 250m with EXTEND dip-switch ON Network IEEE802.3i 10BASE-T IEEE802.3u 100BASE-TX Protocol IEEE802.3x Flow Control IEEE802.3af/at Power over Ethernet Standard Forwarding mode: store-and-forward Bandwidth:8.8 Gbps (Non-blocking) Packet forwarding speed:6.84Mbps transmission mode: full duplex/half-duplex (adaptive) Performance Address database size:8,000 media access control (MAC) addresses p er system Buffer memory:48 KB embedded memory per unit Less than 20 μs for 64-byte frames in store-and-...
19, il est nécessaire de déplacer le dip- switch EXTEND puis de le remettre dans l'état souhaité. Le 3000/403A est un commutateur Ethernet PoE+ non géré à 16 ports. Le 3000/403A peut transmettre simultanément des données et de l'énergie à un nœud du réseau.
Switch PoE+ 16 ports 10/100 Mbps, switch 16 ports Désignation du produit : Ethernet avec 2 ports uplink 10/100/1000 Mbps et slot (sfp) de 1 Gigabit Type de produit 3000/403A Alimentation simultanée de standard IEEE802 .3af ou Classe POE IEEE802 .3at IEEE802.3af: 15,4W (sortie à un seul port) Paramètre d'alimentation POE...
Page 10
EXTEND réglé sur ON IEEE802.3i 10BASE-T IEEE802.3u 100BASE-TX Protocole IEEE802.3x Contrôle de flux réseau standard IEEE802.3af/at Power over Ethernet (PoE) Modalité de transmission: store-and-forward Largeur bande: 8,8 Gbps (non-bloquant) Vitesse de transmission paquets: 6,84Mbps Modalité de transmission: full duplex/half-duplex (adaptative) Performances Dimensions base de données adresses: 8000 adresses MAC (Media Access Control) pour système...
Tests wurde festgestellt, dass der 3000/403A geeignet ist, 802.3af/at-Endgeräte mit Strom zu versorgen, ohne die angeschlossenen Geräte zu beschädigen, und bis zu 30 Watt an einem einzigen Port liefert. Der 3000/403A reduziert die zusätzlichen Kosten für die elektrische Verdrahtung zur Versorgung dezentraler Netzwerkgeräte wie z.
Page 12
PoE+Switch mit 16 Ports und 10/100 Mbps, Switch mit 16 Produktbezeichnung: Ethernet-Ports und 2 Uplink-Ports und 10/100/1000 Mbps und -Steckplatz (sfp) mit 1 Gigabit Produkttypologie 3000/403A Gleichzeitige Versorgung nach Standard IEEE802 .3af POE-Klasse oder IEEE802 .3at IEEE802.3af :15,4 W (Einzelportausgang) POE-Versorgungsparameter IEEE802.3af :30 W (Einzelportausgang)
Page 13
Kabel: Cat 5-Kabel UTP oder Höher Übertragungsentfernung: ≤100 m, bis zu 250 m, wenn die EXTEND- Funktion auf EIN gestellt ist IEEE802.3i 10BASE-T IEEE802.3u 100BASE-TX Standard- Netzwerkprotok IEEE802.3x Datenflusssteuerung IEEE802.3af/at Power over Ethernet (PoE) Weiterleitungsmodus: Store-and-forward Bandbreite: 8,8 Gbps (nicht blockierend) Paketweiterleitungsgeschwindigkeit: 6,84 Mbps Übertragungsmodus: Full duplex/Half-duplex (adaptiv) Adressierung: 48-Bit-MAC-Adresse...
Page 14
DIRETTIVA 2012/19/UE DEL PARLAMENTO EUROPEO E DEL CONSIGLIO del 4 luglio 2012 sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE). Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla fine della propria vita utile deve essere raccolto separatamente dagli altri rifiuti.
Page 15
DIRECTIVE 2012/19/UE DU PARLEMENT EUROPÉEN ET DU CONSEIL du 4 juillet 2012 sur les déchets d’équipements électriques et électroniques (DEEE). Le symbole de la poubelle barrée apposé sur l’appareillage ou sur son emballage indique que le produit doit être collecté séparément des autres déchets au terme de sa durée de vie utile.
Page 16
Applicazione Application Anwendung Application La guida rapida del dispositivo è scaricabile puntando il seguente QR code. La guida rapida è altresì disponibili per il DOWNLOAD dal sito URMET nella sezione LIBRETTI DI ISTRUZIONE. Quick guide of the product is available at the following QR code. Quick guide of the product is also available for DOWNLOAD from the URMET website under the section USER MANUALS.
