Summary of Contents for urmet domus 3000 Series

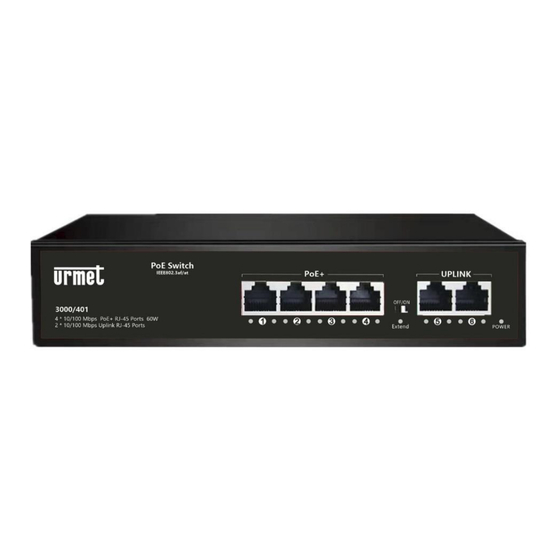

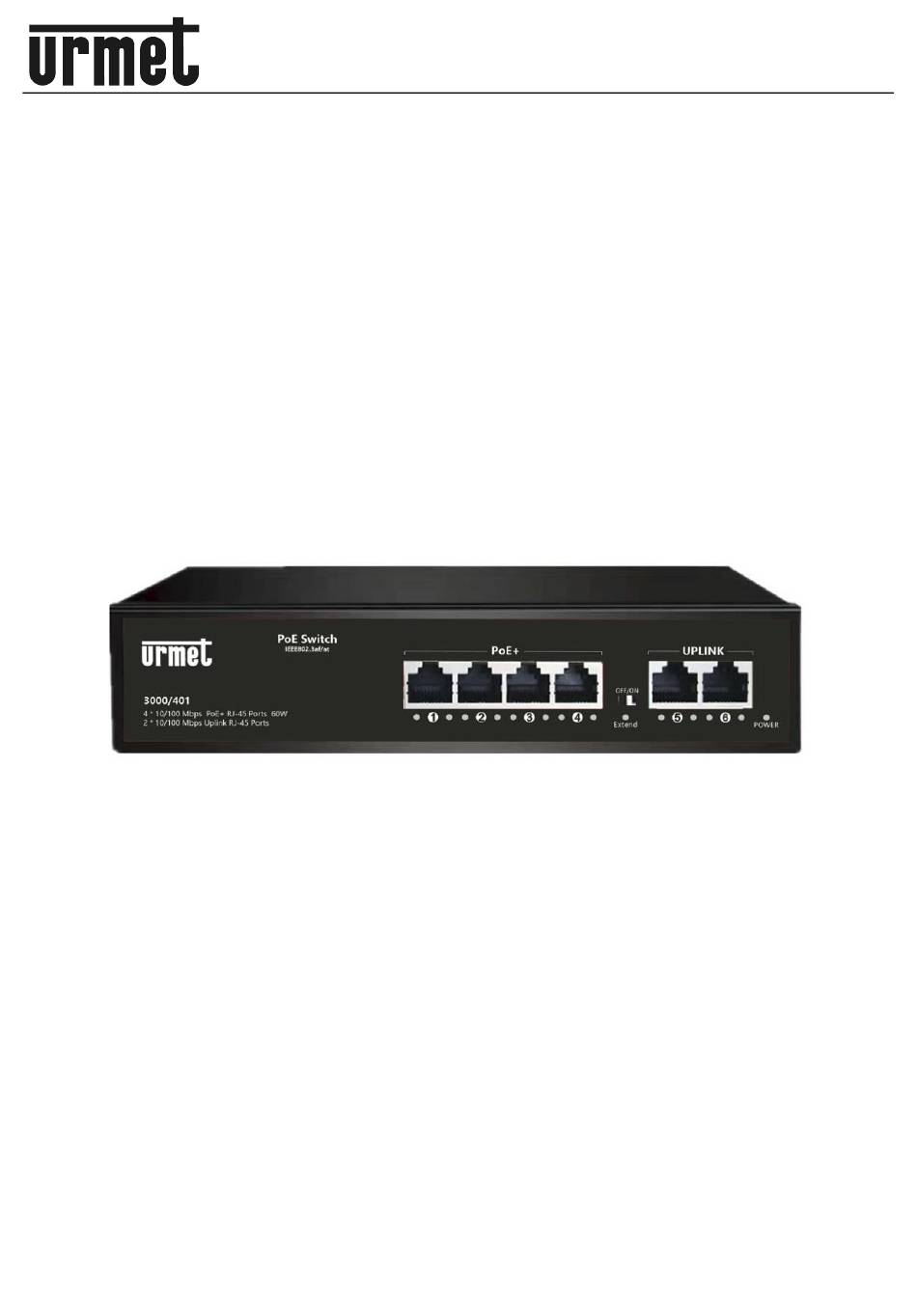

- Page 1 Mod. 3000 DS3000-047A SWITCH 4*100M PORTE POE+2*100M di Uplink 4*100M POE+2*100M PoE Ports Switch 4*100M POE+2*100M PoE Switch COMMUTATEUR POE 4 PORTS 100M + 2*100M Sch. /Ref./Typ/Réf. 3000/401 GUIDA RAPIDA QUICK GUIDE SCHNELLANLEITUNG GUIDE RAPIDE...
- Page 2 ITALIANO Switch POE+ per comunicazioni a lungo raggio ◆ Può alimentare dispositivi POE tramite cavo CAT 5 o superiori ◆ 6 porte RJ45: 4 porte PoE10/100Mbps, 2 porte uplink 10/100Mbps auto-sensing ◆ Supporta MDI / MDIX ◆ Alimentatore Integrato ◆ Potenza PoE totale: 60W (da porta 1 a porta 4) ◆...
-
Page 3: Specifiche Tecniche
Specifiche tecniche Modello 3000/401 Porte totali 4*10/100Base-TX PoE ports (Dati/Alimentazione) 2*10/100Base-TX Uplink RJ45 ports (Dati) Porte POE Porte 1-4 supportano PoE @ IEEE802.3af/at Funzioni Tramite dip-switch. Porte 1-4 supportano la funzione watch dog. Priorità delle porte. Autoriparazione delle porte. VLAN & 250M lunga distanza, video monitoring e isolation mode. Protocollo di Rete IEEE802.3i 10Base-T;... - Page 4 ENGLISH Long Transmission Distance Standard PoE+ Switch ◆ Can supply power to PoE network surveillance cameras through Cat 5 cable ◆ 6x RJ45 ports: 4 PoE ports10/100Mbps, 2 uplink ports10/100Mbps auto-sensing ◆ Supports port auto-flip (Auto MDI/ MDIX) ◆ Internal power supply ◆...
-
Page 5: Technical Specification
Technical Specification Model 3000/401 Total Ports 4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX Uplink RJ45 ports (Data) POE Ports Port 1-4 support PoE @ IEEE802.3af/at Function Through dip switches. 1-4 Ports support watch dog function. Priority port. Port self-healing. VLAN & 250M long distance, video monitoring and isolation mode. IEEE802.3i 10Base-T;... - Page 6 DEUTSCH POE+Switch für die Langstreckenkommunikation ◆ Kann PoE-Netzwerk-Überwachungskameras über ein Cat 5-Kabel mit Strom versorgen ◆ 6x RJ45-Ports: 4 PoE-Ports 10/100 Mbit/s, 2 Uplink-Ports 10/100 Mbit/s Auto-Sensing ◆ Unterstützt Port Auto-Flip (Auto MDI/MDIX) ◆ Internes Netzteil ◆ Maximale Leistung der PoE-Ports: 60 W (Port 1 bis Port 4) ◆...
-
Page 7: Technische Spezifikationen
Technische Spezifikationen Model 3000/401 Ports insgesamt 4x 10/100Base-TX PoE ports (Data/Power) 2x 10/100Base-TX Uplink RJ45 ports (Data) POE Ports Port 1-4 unterstützt @ IEEE802.3af/at Funktion mittels DIP Schalter. 1-4 Ports unterstützt watch dog Funktion. Priority Port. Port Self-Healing. VLAN & 250M Long Distance, Video Monitoring und Isolations-Modus. - Page 8 FRANÇAIS Commutateur POE+ pour communications à grand rayon de couverture ◆ Peut alimenter les caméras de surveillance réseau PoE via un câble Cat 5 ◆ 6 ports RJ45 : 4 ports PoE 10/100 Mbps, 2 ports de liaison montante 10/100 Mbps à détection automatique Prend en charge le basculement automatique des ports (Auto MDI/MDIX) Alimentation interne ◆...
-
Page 9: Caractéristiques Techniques
Caractéristiques techniques Model 3000/401 N. total de ports 4*10/100Base-TX PoE ports (Données/Alimentation) 2*10/100Base-TX Uplink RJ45 ports (Données) POE Port Port 1-4 support PoE @ IEEE802.3af/at Fonctionnalité Commutateur DIP. Ports 1-4 prennent en charge la function chien de garde. Port prioritaire. Port auto-régénérateur. VLAN &... - Page 10 La guida rapida del dispositivo è scaricabile puntando il seguente QR code. La guida rapida è altresì disponibili per il DOWNLOAD dal sito URMET nella sezione LIBRETTI DI ISTRUZIONE. 3000/401 Quick guide of the product is available at the following QR code. Quick guide of the product is also available for DOWNLOAD from the URMET website under the section USER MANUALS.
- Page 11 DS3000-047A...
- Page 12 DS3000-047A Prodotto in Cina su specifica URMET Made in China to URMET specification DS3000-047A...
