- Page 1 Space Ion Bar AP-DB1233 Shanghai Anping Static Technology Co.,Ltd Space Ion Bar A P & T...
- Page 2 Suitable for electronics, optoelectronics, semiconductor and other industries Effectively solve the problems caused by static electricity...

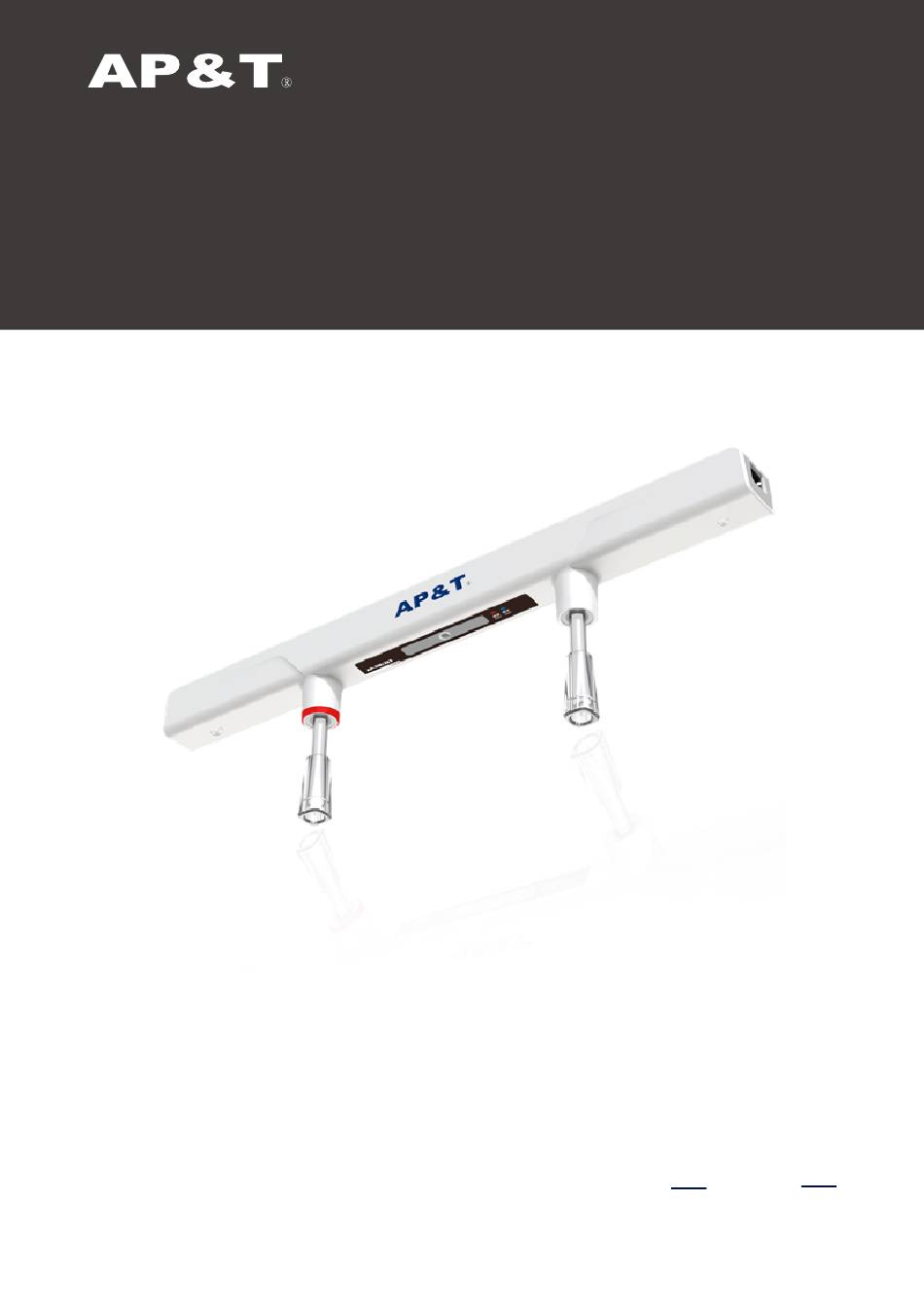

- Page 3 Keep a clean production environment and stay away from static electricity AP-DB1233 Space Ion Bar is a rod-type static eliminator developed and produced by Anping Company to eliminate static electricity in clean spaces and maintain static balance in clean spaces.
- Page 4 ◈ Static Elimination Effect (Internal Test Version) Space Ion Bar Plate Charge Tester Anemometer Flat panel away from the ground 150mm Test Diagram Test Standard：IEC 61340-4-7，ANSI/ESD.STM3.1，SJ/T 11446—2013 Test Instrument：Trek charge plate tester Test Voltage：±1000V → ±100V Test Environment：Humidity 50%RH±5%RH；Temperatur 23℃ ±3℃ HEPA (FFU) Airflow speed ﹕...
- Page 5 The following figure shows the approximate decharging coverage space size of the space ion bar within 60s: Space Ion Bar 1200(mm) Note: The following data is for reference only. The discharge data will be different due to the different use environment and working parameters.
-
Page 6: Serial Installation
Features Safe / Easy to use / Durable ▍ Unique discharge structure ▍ Working status indicator design Red light alarm when high voltage is abnormal equipped with special Si electrodes, suitable for eliminating static electricity and charged particulate pollutants in space ▍... -
Page 7: Product Specifications
Product Specifications Product Details / Product Parameter / Product Size ◈ Product Parameter (Internal Test Version) Model AP-DB1233 Input Voltage AC 24V Power Output Voltage ±10KV - 20KV Ion Emission Pulse DC / Steady DC Emitter Electrode Default Component Length：2.5 Ion Bar Module （5、10、15、24、36、60、66）inch... -
Page 8: Product Details
Product Specifications Product Details / Product Parameter / Product Size ◈ Product Details Indicator Light Functions Blue light Infrared, Pause, Clean Indicator Red light Alarm Indicator White light High Voltage Working Indicator ◈ Product Size Unit：mm High Voltage Output Status Indicator Light Working Status Indicator Light RJ11 Network Port... - Page 9 Choose the best static elimination position / spatial layout and securely install the bar and its accompanying power adapter. Insert one end of the power connection cable into the RJ11 power/communication port of the power adapter, and the other end into either RJ11 power/communication port on both ends of the ion bar.
-
Page 10: Remote Control Instruction
The wiring information diagrams for the alarm socket and the power/communication socket are as follows: The wiring information diagrams for the The power/communication socket are alarm socket as follows Green Green AL_OUT RS485+B Black ACT_OUT Black RS485+A White 24V DC White 24V AC Note: Each power adapter can load up to 20 space bars. -
Page 11: Communication Connection
Select "Working Mode" and press the enter button to confirm; then press the up/down buttons to choose the working mode: Steady DC / Asynchronous Pulse / Synchronous Pulse Working Mode Note: Available only to advanced users View the firmware version number Firmware Version Note: Available only to advanced users Select "Device Address"... -
Page 12: Troubleshooting
Safety warning Please read the instruction manual carefully before installing and using this equipment. The whole set of equipment must be reliably grounded during use, otherwise it is easy to cause abnormality or even damage to the ion bar. Do not use this equipment in environment where humidity is > 70%. It is strictly forbidden to use this equipment in flammable and explosive environments. -
Page 13: Packaging Accessories
After-sales service Before leaving the factory, the AP-DB1233 space ion bar undergoes rigorous testing and aging treatment, and its performance fully meets the relevant indicators marked in the user manual. AP&T makes a commitment to the customer that any defective parts inspected by AP&T will be repaired or replaced free of charge within one year from the date of purchase. - Page 14 SPECIALIZATION CREATION VALUE Professional electrostatic intelligent monitoring/analysis and elimination solution provider Shanghai Anping Static Technology Co.,Ltd Tel：021-6451 7676 Website：www.ap-static.com Address：3-4/F,Building 27,No.69,Guiqing Road,Shanghai,China...
