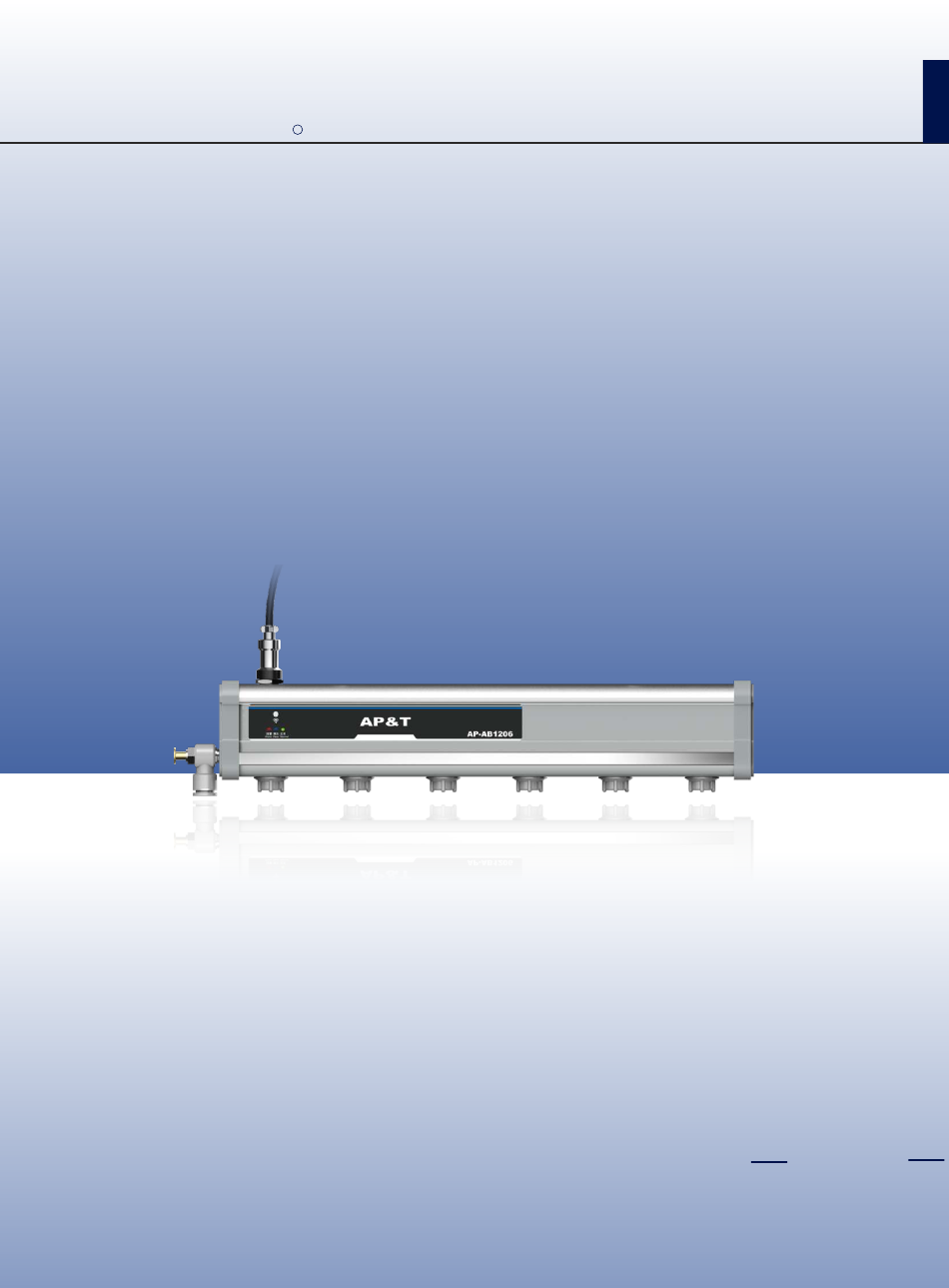

- Page 1 AP&T Shanghai Anping Static Technology Co.,Ltd High Efficient Electroshock-proof Intelligent Ion Bar AP-AB1206 AP&T...
- Page 2 Widely used in printing, UV flatbed industry Effectively solve the problem caused by static electricity Static removal Prevent adhesion of Prevent sticking Control ink splashing Prevent uneven scattering...
- Page 3 High efficient Safe Static removal...
-
Page 4: Intelligent Control
Intelligent Control Ion balance/ ion output frequency adjustable The output ratio of positive and negative ions is adjustable, which can be used to adjust the ion balance voltage Positive high voltage amplitude Positive high voltage amplitude (Positive high voltage) (Positive high voltage) The negative ion output increases with the increase of negative high voltage amplitude time... - Page 5 Intelligent Control Ion balance/ ion output frequency adjustable Button function instructions Symbol Operation instructions Function Unlock before adjusting operating parameters. Unlock Device starts running when power is on. Press "STOP" to standby and no high voltage Run / Pause output. Press "RUN" again and the device will start working. Press CTTH first, then +/- to increase or decrease the cleaning cycle.
- Page 6 Pulse AC The effect of static eliminating is better compare to power frequency AC ion bar Pulse AC Comparison with traditional AC Positive pulse Negative pulse Pulse AC Positive voltage working time (Positive high pressure) The pulsed AC method alternately applies "+" and "-" high voltage to one electrode needle to generate two polar ions.
- Page 7 Features Safe / Easy to use / Durable No.1 Easy installation M5 sheet slider nut installation accessories provided. Put the slider nut into the slot of the ion bar. Slide left and righ to adjust position and can adapt to various installation environments.
-
Page 8: Specification
Specification Details / Installation Product Details DC24V high flexible towline power cord M5*20 mounting bolt Strip grounding electrode Working status indicator Needle holder and electrode needle Product Size unit：mm DC24V high flexible towline power cord Working status indicator 304 stainless steel three-combination M5 pan head cross bolt Needle holder and electrode needle... -
Page 9: Product Parameter
Product Parameter Model AP-AB1206 Input voltage DC 24V Power Electrode pin voltage Vpp:8-12KV Ion emission Pulse AC Emitter electrode Discharge structure Resistance coupling Output frequency 0.1,0.5,1,5,10,30,55,65,105Hz；(EX-Work setting: 30Hz) Discharge range L*W*H：Bar Length*300*1000mm Installation distance 100→100mm Ion balance ≤|±30V| （ AVE ）... -
Page 10: Use Of The Product
Use of the product Installation step / Installation position Packaging accessories Installation step Adjustable brack Wiring method 1 Bracket installation Wiring method 2 1.Take out the ion bar, adapter power supply, power supply network cable , stainless steel Wiring method 1: Connect through DC24V high-flexible drag chain power cord. mounting brackets and other accessories from the packing box. -
Page 11: Installation Position
Installation position 1. Choose the best static elimination position and install the bar body and the matching power adapter firmlyafter the static detection of the on-site working environment. The installation angle should be perpendicular to the surface of the charged body, and the installation distance can be referred to the following table. -
Page 12: Packaging Accessories
Packaging accessories Name Image Part No. Specification Quantity GRT-240200: DC24V 2A, dual network Power Adapter OSP000601 port output, Size: 123*61*40.5mm (L*W*H) National standard power cord 8YXG25110 Standard:1.8m, optional:3m/5m Double ended crystal head 8WXI00004 Standard:2.5m, 5m/10m:optional black shield cable Single-ended crystal head FUTP CAT.5E 26AWG 4Pair Jacket PVC black shield 8WXI00002... -
Page 13: Troubleshooting
It can be used only after the electrical performance index is normal. After-sales service AP-AB1206 has undergone rigorous testing and aging treatment before ex-work. Its performance has completely reached the relevant indicators marked in the usage instruction. - Page 14 S pe cia lity C re a t es Val ue S pe cia lity C re a t es Val ue Shanghai Anping Static Technology Co.,Ltd Tel : 021-64517676 Fax : 021-64517673 Postcode : 200233 Website : www.ap-static.com Address : 3/F,Building 27,No.69,Guiqing Road,Shanghai,China...
