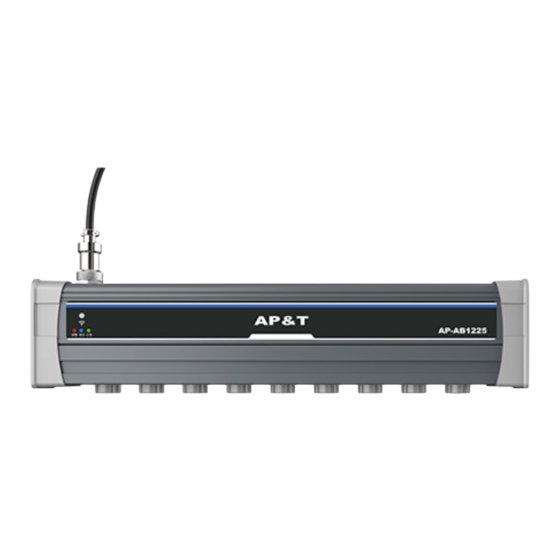

- Page 1 AP-AB1225 Intelligent Static Removal Ion Bar High speed Self-balancing Shanghai Anping Static Technology Co.,Ltd...
- Page 2 Suitable for UV printing industry Effectively solve the problems caused by static electricity Static removal Prevent adhesion of objects Prevent blockage of feeder Prevent material splash Prevent static electricity Performance can be adjusted by special ink-jet printing remote control Button function instructions Function adjustment Symbol Operation instructions...
- Page 3 Pulse AC Discharge effect is better compare to power frequency AC ion bar Pulse AC VS traditional AC Positive pulse Negative pulse Pulse AC Positive voltage working time Pulse AC method generate ions with two polarity by （Positive high voltage） applying "+"...
- Page 4 High Efficiency Static Removal Keep a clean production environment and stay away from static electricity 100mm 100mm 50mm +0.1s -20V 30mm +0.5s -10V 70mm +0.8s +1.0s +10V 100mm Test standard：ANSI/ESD.STM3.1，SJ/T 11446—2013 Test instrument: Trek charge plate tester Test voltage：±1000V → ±100V attenuation Test environment：humidity 50±5%；temperature 23±3℃...
- Page 5 Features Safe / Easy to use / Durable No.1 DC24V high flexible towline power cord The standard length of the power cord is 1500mm and the low voltage wiring of 24V can eliminate the aging phenomenon of the cable caused by the discharge and the impact on the peripheral equipment,which can build a highly reliable system.
- Page 6 Product Use Product details / Product size / Product specifications Product details DC24V high flexible towline power cord wiring diagram Connecting information Power cord color DC24V high flexible towline power cord Orange or brown +24 V White or grey Light green or black EGND Aviation socket Front...
-
Page 7: Product Specifications
Product specifications Model AP-AB1225 Input voltage DC 24V Power ＜ 5W Output voltage ±4000V~±7000V Ion emission Pulse AC Emitter electrode Tungsten Output frequency 0.1,0.5,1,5,10,30,55,65,105Hz；( Ex-work setting：55Hz) Duty ratio 5%—95% Discharge range L*W*H：{200，225，250 -500mm( Needle spacing 25mm)}*200*100mm Installation distance 50 → 100mm Ion balance ≤... - Page 8 Products Use Step of use/Installation position/Packing accessories Step of use Adjustable mounting bracket Bracket installation Take out ion bar, power adapter, power cable, Connection mode: Connect one end of the DC24V stainless steel mounting bracket and other accessories high flexible towline power supply cable to the power from the packing box and install the stainless steel supply and insert the other end of the aviation plug mounting bracket on the mounting slot of the ion bar base.
-
Page 9: Installation Position
6. The mounting angle of ion bar can be adjusted. Packing accessories Specification Part name Part No. Picture AP4855000 Three-core high-flexible power Standard 1.5m（Customizable on site） cord with aviation plug AP8933000 Square nut M5*12*12*4 —— AP6620003 Needle seat AP2253006 AP-AB1225 3 gears of voltage adjustment Infrared remote control（4 buttons）... - Page 10 Safety warning 1. Read the operating instruction carefully before installing and using the device. 2. The whole equipment must be reliably grounded with a grounding resistance of less than 1 ohms during use; Otherwise, it is easy to cause abnormal or even damage of ion bar. 3.
- Page 11 After-sales service AP-AB1225 intelligent high-speed static removal ion bar has undergone rigorous testing and aging treatment before ex-work. Its performance has completely reached the relevant indicators marked in the usage instruction. 1. AP&T makes a commitment to the customer that any defective parts inspected by AP&T will be repaired or replaced free of charge within one year from the date of purchase.
- Page 12 AP&T Professional electrostatic intelligent monitoring/analysis and elimination solution provider 专 业 创 造 价 值 S p ecia lit y C r ea t es Va l u e Shanghai Anping Static Technology Co.,Ltd Tel : +86-21-64517676 Fax : +86-21-64517673 AP&T Postcode : 200233 Website : www.ap-static.com...
