Leuze ODSL 8 Manual

Optical laser distance sensors
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

ODSL 8
IP IP 69K
69K
IP IP 67
67
 Reflection-independent distance
information
 Analog voltage output or current output (can
be inverted, teachable)
 2 teachable switching outputs (push-pull)
 M12 turning connector
 Easy alignment through visible red light
Accessories:
(available separately)
 Mounting systems
 Cables with M12 connector
(KD ...)
 Control guard
Leuze electronic GmbH + Co. KG
info@leuze.de • www.leuze.com
Dimensioned drawing
20 ... 200mm
A
B
C
D
E
F
G
Electrical connection
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
Receiver
Transmitter
Optical axis
Turning connector, turnable 90°
Yellow, green LED
Operational control (rotary switch)
Reference edge for the measurement (cover glass)
ODSL 8/V66-200-S12
ODSL 8/C66-200-S12
Optical laser distance sensors
ODSL 8/V66-200-S12 - 11,
ODSL 8/C66-200-S12 - 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODSL 8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leuze ODSL 8

Summary of Contents for Leuze ODSL 8

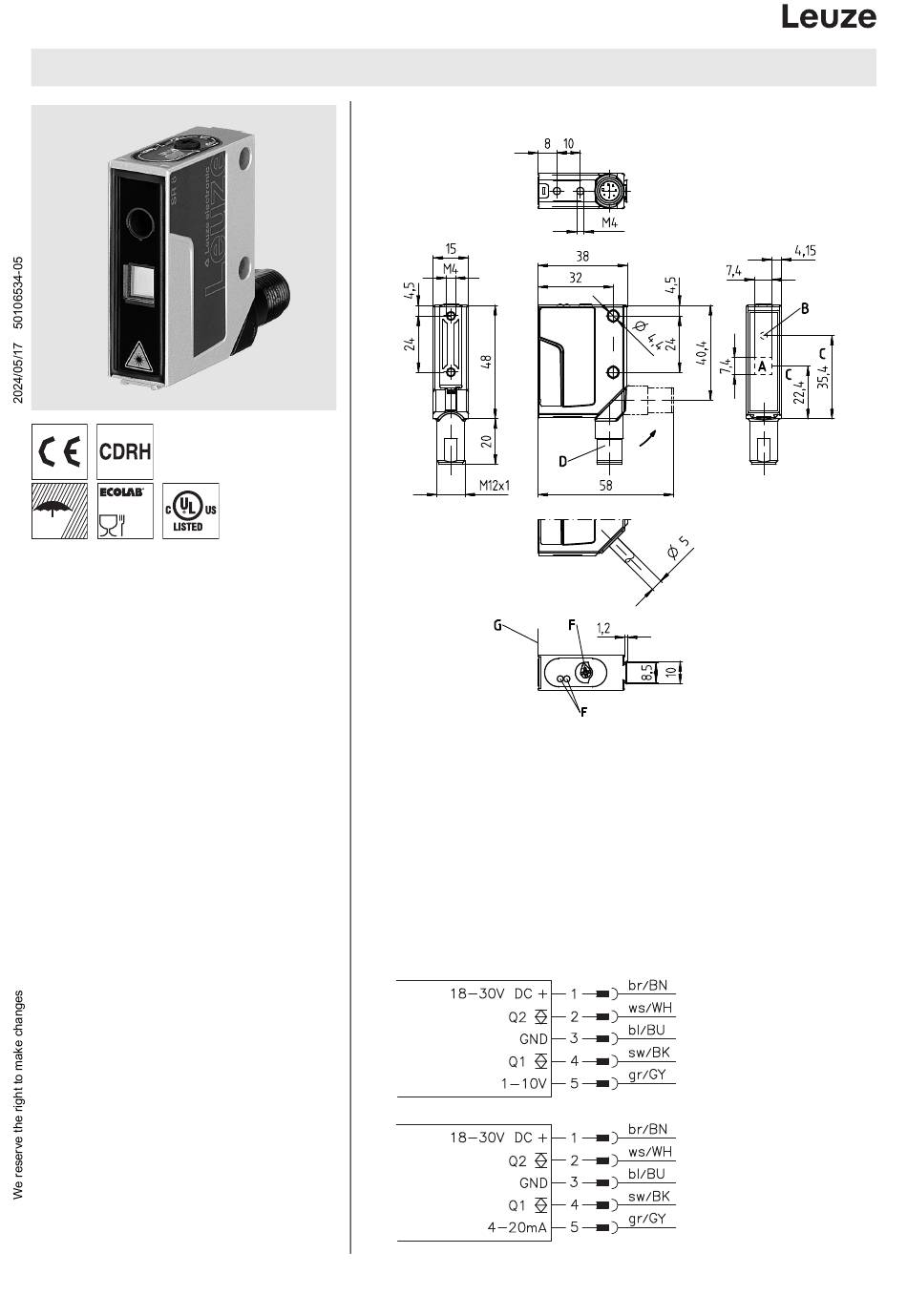

  • Page 1  Cables with M12 connector (KD …)  Control guard ODSL 8/C66-200-S12 Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 ODSL 8/V66-200-S12 - 11, info@leuze.de • www.leuze.com ODSL 8/C66-200-S12 - 11...

  • Page 2: Technical Data

    ODSL 8 Technical data Tables Optical data Measurement range 20 … 200mm Resolution 0.1 … 0.2mm Light source Laser Laser class 2 in acc. with IEC 60825-1:2014 / EN 60825-1:2014+A11:2021 Wavelength 650nm (visible red light) Max. output power < 1.2mW...
  • Page 3 CAUTION! Opening the device may result in hazardous radiation exposure! Repairs must only be performed by Leuze electronic GmbH + Co. KG. The device emits a collimated and pulsed laser beam. For laser power, pulse duration, wavelength and light spot diameter see Technical data.

  • Page 4: Mounting Instructions

    There are mounting systems available, which have to be ordered separately from Leuze electronic. Apart from this, the drilled-through holes and threaded holes are suitable for the individual mounting of the ODSL 8, depending on the area in which it is to be used. When mounting, do not subject the housing to excessive force.

  • Page 5: Error Messages

    Remedy:  Repeat teach event or  Disconnect sensor from voltage to restore the old values. Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 ODSL 8/V66-200-S12 - 11, info@leuze.de • www.leuze.com...
