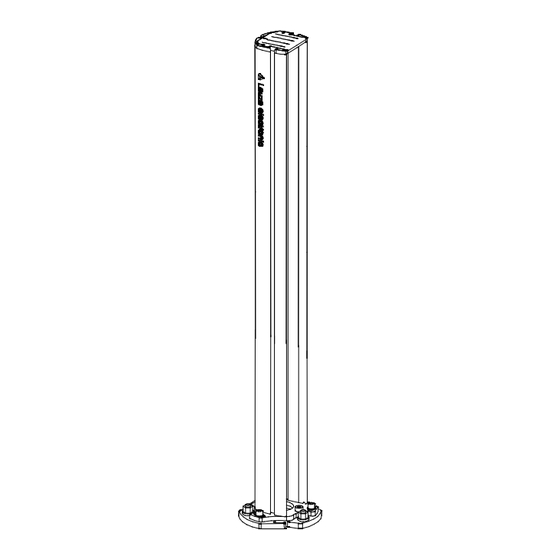

Leuze UDC-1300-S2 Mounting Instructions

Udc / dc device column for multiple light beam safety devices and light curtains

Hide thumbs

page of 12

/ 12
Bookmarks

Quick Links

Download this manual

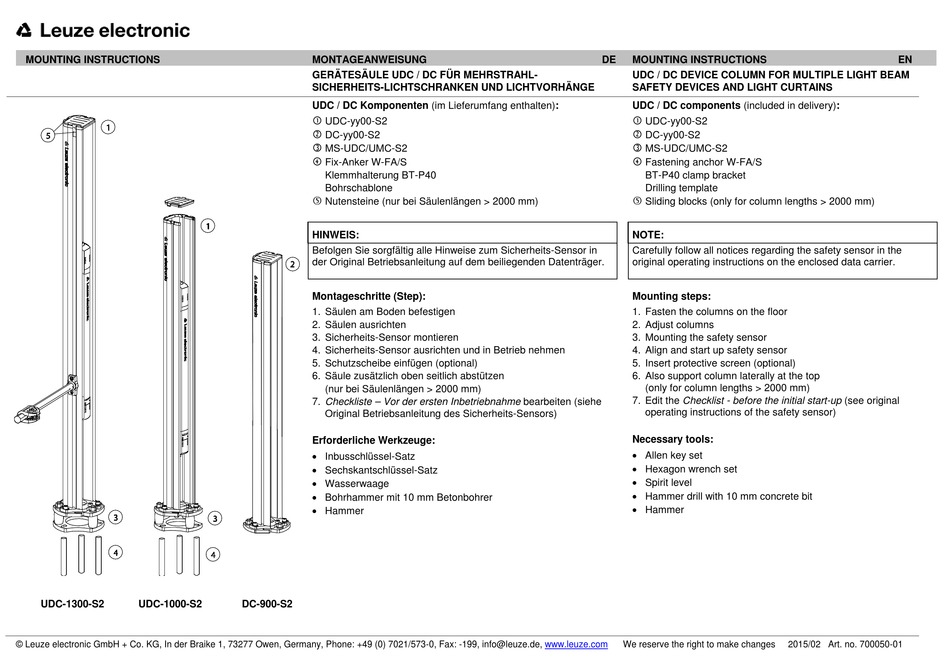

MOUNTING INSTRUCTIONS

UDC-1300-S2

UDC-1000-S2

MONTAGEANWEISUNG

GERÄTESÄULE UDC / DC FÜR MEHRSTRAHL-

SICHERHEITS-LICHTSCHRANKEN UND LICHTVORHÄNGE

UDC / DC Komponenten (im Lieferumfang enthalten):



UDC-yy00-S2



DC-yy00-S2



MS-UDC/UMC-S2



Fix-Anker W-FA/S

Klemmhalterung BT-P40

Bohrschablone



Nutensteine (nur bei Säulenlängen > 2000 mm)

HINWEIS:

Befolgen Sie sorgfältig alle Hinweise zum Sicherheits-Sensor in

der Original Betriebsanleitung auf dem beiliegenden Datenträger.

Montageschritte (Step):

1. Säulen am Boden befestigen

2. Säulen ausrichten

3. Sicherheits-Sensor montieren

4. Sicherheits-Sensor ausrichten und in Betrieb nehmen

5. Schutzscheibe einfügen (optional)

6. Säule zusätzlich oben seitlich abstützen

(nur bei Säulenlängen > 2000 mm)

7. Checkliste – Vor der ersten Inbetriebnahme bearbeiten (siehe

Original Betriebsanleitung des Sicherheits-Sensors)

Erforderliche Werkzeuge:

• Inbusschlüssel-Satz

• Sechskantschlüssel-Satz

• Wasserwaage

• Bohrhammer mit 10 mm Betonbohrer

• Hammer

DC-900-S2

MOUNTING INSTRUCTIONS

UDC / DC DEVICE COLUMN FOR MULTIPLE LIGHT BEAM

SAFETY DEVICES AND LIGHT CURTAINS

UDC / DC components (included in delivery):



UDC-yy00-S2



DC-yy00-S2



MS-UDC/UMC-S2



Fastening anchor W-FA/S

BT-P40 clamp bracket

Drilling template



Sliding blocks (only for column lengths > 2000 mm)

NOTE:

Carefully follow all notices regarding the safety sensor in the

original operating instructions on the enclosed data carrier.

Mounting steps:

1. Fasten the columns on the floor

2. Adjust columns

3. Mounting the safety sensor

4. Align and start up safety sensor

5. Insert protective screen (optional)

6. Also support column laterally at the top

(only for column lengths > 2000 mm)

7. Edit the Checklist - before the initial start-up (see original

operating instructions of the safety sensor)

Necessary tools:

• Allen key set

• Hexagon wrench set

• Spirit level

• Hammer drill with 10 mm concrete bit

• Hammer

www.leuze.com

We reserve the right to make changes

2015/02 Art. no. 700050-01
