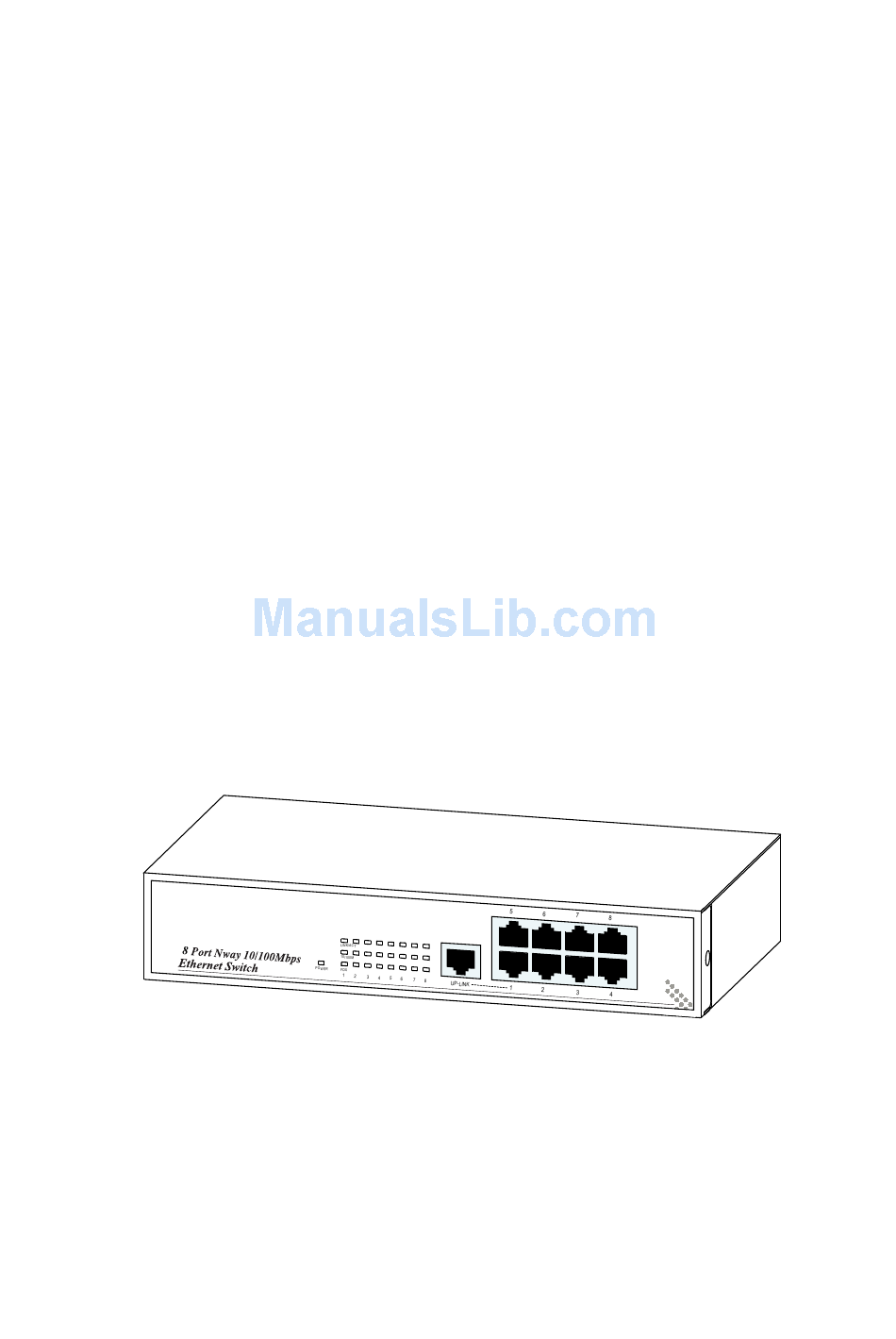

- Page 1 8 Port Nway Fast Ethernet Switch User's Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Table Of Contents Chapter 1 -------------------------------------------------------------------1 Introduction ---------------------------------------------------------------------1 Key Features -------------------------------------------------------------------2 Chapter 2 -------------------------------------------------------------------3 Package Contents ------------------------------------------------------------3 Chapter 3 -------------------------------------------------------------------4 Front Panel Layout -----------------------------------------------------------4 8 RJ-45 10/100Mbps Switch Ports ---------------------------------4 Uplink port----------------------------------------------------------------4 LED Indicators of 8 Port 10/100Mbps Switch---------------5 III. LED Definitions ----------------------------------------------------------6 Power LED --------------------------------------------------------------6 FDX LED -----------------------------------------------------------------6... -
Page 4: Introduction
Chapter 1 8 Port Nway Fast Ethernet Switch Introduction The Switch provides 8 10/100Mbps ports. The Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of user increase continuously. The compact rigid desktop size was specifically designed for ROBO (Remote Office &... -
Page 5: Key Features
Key Features 8 Port 10/100BASE T/TX Nway (Auto-negotiation) Switch with RJ-45 connectors Desktop size with compact rigid design Auto-detect of Full/Half-duplex modes in all ports Dedicated full-duplex 200Mbps bandwidth on each port Broadcast storm control Store & Forward switching methods IEEE 802.3x flow control for Full-duplex Zero-Packet Loss Back-pressure flow control for Half-duplex... -
Page 6: Package Contents
Chapter 2 Package Contents Before you start to install the Switch, please verify your package that contains the following items: One Fast Ethernet Switch One Power Cord One User's Manual 8 Port Switch User's Manual 8 Port Nway Fast Ethernet Switch User's Manual Power Cord Note: If any of these items is found missing or damaged, please... -
Page 7: Front Panel Layout
Chapter 3 Front Panel Layout I. 8 RJ-45 10/100Mbps Switch Ports There are 1~8 RJ-45 connector on the front panel for connecting to servers, workstation or other devices. The Switch provides 8 10/100Mbps switching ports that could sense the 10/100M speed and negotiate Full/Half-duplex mode automatically. -
Page 8: Led Indicators Of 8 Port 10/100Mbps Switch
III. LED Indicators of 8 Port 10/100Mps Switch Color Status Description No. Of LED Power Yellow Power on Green Full-duplex 8(1~8) Half-duplex 8(1~8) Flashing Partial collision 8(1~8) occurs 10/100M Green Port is on the 8(1~8) 100M status Port is on the 8(1~8) 10M status LINK/ACT Yellow... -
Page 9: Led Definitions
VI. LED Definitions Power LED : The unit is powered on and ready for use. : The unit is powered off. : The port is operating at Full-duplex. : The port is operating at Half-duplex without any data being transmitted or received. -
Page 10: Installation
Chapter 4 Installation I. To connect the Switch to PCs, servers, and other network devices. Use straight-through twisted-pair cable (Cat. 5) to connect the Switch to PCs, servers and other network devices. Networks can be built as figure shown. Server Workstation To connect the Switch to a Switch or a Hub... -
Page 11: Technical Specifications
Chapter 5 Technical Specifications 1. Standards Compliance - IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX 2. Number Of Ports - 8 integrated ports: 10/100Mbps Nway port 3. Expansion Interface - 1 uplink port 4. Fully Flow Control Supported - Half-duplex mode: Backpressure - Full-duplex mode: IEEE 802.3x 5. -
Page 12: Operating Temperature
12. Operating Temperature - 0 C ~ 60 C 13. Store Temperature - -20 C ~ 90 C 14. Humidity - 10% ~90% RH (Non-condensing) 15. Dimension (L x W x H) - 228mm x 123mm x 44mm 16. Weight - 0.93 Kg 17. - Page 13 DOC-UMWD080R002...
