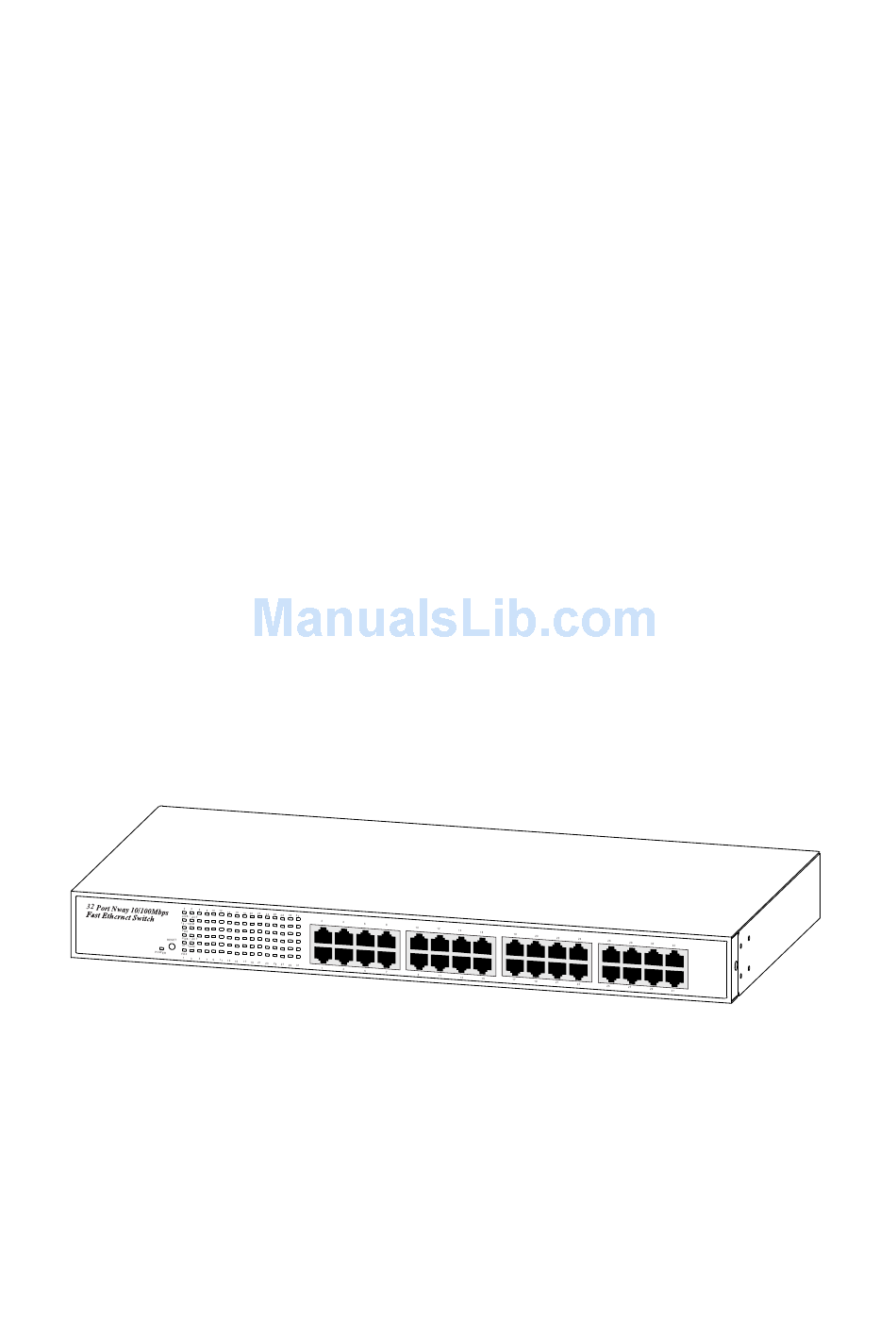

- Page 1 32 Port Nway Fast Ethernet Switch User's Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Chapter 5 -------------------------------------------------------------------8 Installation ----------------------------------------------------------------------8 The connect the Switch to PCs, servers, and other network devices. ---------------------------------------------------------8 The connect the Switch to a Switch or a Hub --------------------8 Chapter 6 ------------------------------------------------------------------9 Technical Specifications ----------------------------------------------------9 Appendix ------------------------------------------------------------------11 ANSI/TIA/EIA-568-A PLUG & Twisted-pair Cable -------------11 EIA568A pin assignment ---------------------------------------------11 III. -
Page 4: Introduction
Chapter 1 32 Port Nway Fast Ethernet Switch Introduction The Switch provides 32 10/100Mbps ports. The Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of user increase continuously. -
Page 5: Key Features
Key Features 32 Port 10/100BASE T/TX Nway (Auto-negotiation) Switch with RJ-45 connectors 19-inch standard Rack-mount size Auto-detect of Full/Half-duplex modes in all ports Dedicated full-duplex 200Mbps bandwidth on each port Broadcast storm control Store & Forward switching methods IEEE 802.3x flow control for Full-duplex Non-blocking &... -
Page 6: Package Contents
Chapter 2 Package Contents Before you start to install the Switch, please verify your package that contains the following items: One Fast Ethernet Switch Rack-mount Kit For Rack Installation One Power Cord One User's Manual Power Cord Rack-mount Kit Note: If any of these items is found missing or damaged, please contact your local supplier for replacement. -
Page 7: Front Panel Layout
I. 32 RJ-45 10/100Mbps Switch Ports There are 1~32 RJ-45 connectors on the front panel for connecting to servers, workstation or other devices. The Switch provides 32 10/100Mbps switching ports that could sense the 10/100M speed and negotiate Full/Half-duplex mode automatically. These switching ports allow users connect the Switch to 10Base-T and 100Base-TX devices.All ports support Auto MDIX crossover capability. -
Page 8: Iii. Reset
II. LED Indicators of 32 Port 10/100Mps Switch Color Power Yellow Green 10/100M Green LINK/ACT Yellow III. Reset Allows the users refresh Automatic-learning of network configuration. LINK / ACT 10 / 100M LINK / ACT RESET 10 / 100M POWER... -
Page 9: Iv. Led Definitions
IV. LED Definitions Power LED Flashing 10/100M LED LINK/ACT LED Flashing Rear Panel Layout AC input AC input (90~260V/AC, 50~60Hz) UL Safety.. : The unit is powered on and ready for use. : The unit is powered off. : The port is operating at Full-duplex. : The port is operating at Half-duplex without any data being transmitted or received. -
Page 10: Rack Mounting
First, put the Switch on the flat surface. Locate the mounting bracket on the sides of the Switch with the mounting holes on each. Next, insert the screw through the bracket and into the bracket mounting... -
Page 11: Installation
Switch to a Switch or a Hub Use straight-through twisted pair cable to connect the Switch to another Switch or Hub on uplink port. If you connect the Switches on port 1 to port 32, the cable should be changed to crossover cable. -
Page 12: Technical Specifications
Chapter 6 Technical Specifications 1. Standards Compliance - IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX 2. Number Of Ports - 32 integrated ports: 10/100Mbps Nway port 3. Fully Flow Control Supported - Half-duplex mode: Backpressure - Full-duplex mode: IEEE 802.3x 4. Network Transmission Media - 10BASE-T Cat. -
Page 13: Operating Temperature
14. Dimension (L x W x H) - 440mm x 220mm x 44mm 15. Weight - 2.8 Kg 16. Safety & EMI Certificates - CE & FCC-A Fast Ethernet Switch Laptop Router Proxy Server Firewall Fast Ethernet Switch FTP Server... -
Page 14: Iii. Recommend Cat5 Utp Specifications
Appendix I. ANSI/TIA/EIA-568-A PLUG & Twisted-pair Cable The IEE802.3ab Standards permits the use of category 5 or better balanced cable pairs, installed according to ANSI/EIA-568-A. This appendix provides pinout and brief information for the CAT5 unshielded twisted pair cables II. EIA568A pin assignment: Pin Number III. -
Page 15: Recommend Cat5 Utp Specifications
IV. RJ-45 Modular Phone Jack: 1 2 3 4 5 6 7 8 -12-... - Page 16 DOC-UMWR320B001...
