EGig eG2G24T User Manual

24 port 10/100mbps plus 2 gigabit tx/fx auto-mdix modular gigabit ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

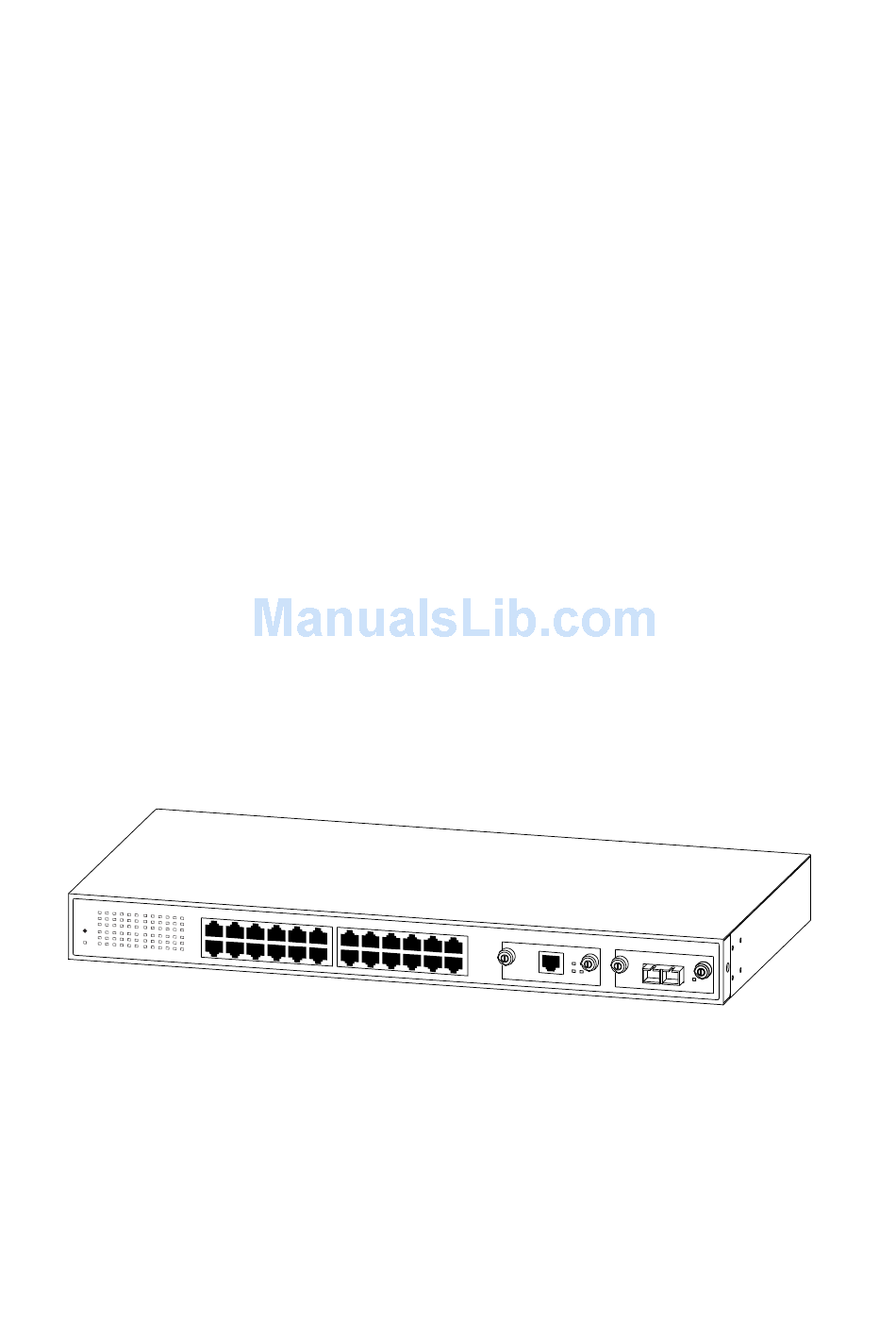

24 Port 10/100Mbps plus 2 Gigabit TX/FX
Auto-MDIX Modular Gigabit Ethernet Switch
2
4
6
8
10
12
14
16
18
20
22
24
LINK / ACT
10 / 100M
FDX
RESE T
LINK / ACT
10 / 100M
POWE R
FDX
1
3
5
7
9
11
13
15
17
19
21
23
User's Manual
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
18
20
22
24 Po rts + 2 Po rts
24
Gi ga bit Eth ern et Sw
I
1000 BASE -T Giga bit Ether
AUTO MDIX
17
19
21
23
itc h Au to MD IX
net
II
Fiber Optic Giga bit Ether
net
TX
RX
L.A.
1G
FDX
100M
LINK/A CT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eG2G24T and is the answer not in the manual?

Questions and answers

Related Manuals for EGig eG2G24T

Summary of Contents for EGig eG2G24T

  • Page 1 24 Port 10/100Mbps plus 2 Gigabit TX/FX Auto-MDIX Modular Gigabit Ethernet Switch LINK / ACT 10 / 100M RESE T LINK / ACT 10 / 100M POWE R User's Manual 24 Po rts + 2 Po rts Gi ga bit Eth ern et Sw...
  • Page 2 FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Table Of Contents

    Chapter 5 ------------------------------------------------------------------13 Installation ---------------------------------------------------------------------13 To connect the Switch to PCs, servers, and other network devices. -------------------------------------------------------13 To connect the Switch to a Switch or a Hub --------------------13 Chapter 6 ------------------------------------------------------------------14 Technical Specifications ---------------------------------------------------14 Appendix ------------------------------------------------------------------16 ANSI/TIA/EIA-568-A PLUG & Twisted-pair Cable -----------------16 EIA568A pin assignment: ------------------------------------------------16 III.

  • Page 4: Introduction

    24 Port 10/100Mbps plus 2 Gigabit TX/FX Auto-MDIX Modular switch Introduction The Switch provides 24 10/100Mbps ports. The Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of user increase continuously.

  • Page 5: Key Features

    Fully compliant with IEEE 802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3z 1000BASE-SX, 1000BASE-LX IEEE802.3ab 1000BASE-TStandards 24 ports 10/100Mbps Fast Ethernet switch and 2 ports Gigabit Ethernet optional slots, each allows for single-port Gigabit Ethernet Switch module 1000BASE-SX or 1000BASE-LX or 1000BASE-T Provided non-blocking and non-head-of-line-blocking full wire...

  • Page 6: Package Contents

    Chapter 2 Package Contents Before you start to install the Switch, please verify your package that contains the following items: One Fast Ethernet Switch Rack-mount Kit For Rack Installation One Power Cord One User's Manual Option Gigabit Module LINK / ACT...

  • Page 7: Front Panel Layout

    E/TIA568 standards. Please refer to the appendix at page 16 for quickly trouble-shooting. II. 2 Gigabit Optional module The Switch provided 2 Gigabit modular slots on the front panel for connecting to servers or other gigabit switches. The Gigabit modules have copper & fiber selection. The Gigabit modules only could negotiate Full-duplex mode and do not need jumper or software to configuration.

  • Page 8: Reset

    III. Reset Allows the users refresh Automatic-learning of network configuration. RESET POWER Yellow Green Green Yellow LINK / ACT 10 / 100M LINK / ACT 10 / 100M Green Green Yellow...

  • Page 9: Led Definitions

    IV. LED Definitions Power LED FDX LED Flashing 10/100M LED LINK/ACT LED Flashing 100M LED LINK/ACT LED Flashing 1G LED : The unit is powered on and ready for use. : The unit is powered off. : The port is operating at Full-duplex. : The port is operating at Half-duple without any data being transmitted or received.

  • Page 10: Gigabit Optional Module Series

    V. Gigabit Optional module series: 1000Base-T Gigabit Ethernet Module Model Name Description MB-001T Compliant with IEEE802.3ab 1000Base-T Std. 1 x 1000Mbps STP port (RJ-45 connector). Support Auto-MDIX & Auto-negotiation. Supports Cat5, 5e or 6 twisted pair cable. Jumper-less configuration. Full duplex operation only. LED-indicators for 1000M, 100M, Link/ACT, FDX.

  • Page 11: Gigabit 1000Base-Sx Fiber Module(Multi-Mode)

    Gigabit 1000Base-SX Fiber Module (Multi-Mode ) Model Name Description MG-001SC Distance: Use the 62.5/125um MMF optic cable for 220m (721 ft) links. Use the 50/125um MMF optic cable for 500 (1640 ft) links. Compliant with IEEE802.3z 1000Base-SX Std. 1 x 1000Base-SX Fiber port (SC connector). Supports 62.5/125um or 50/125um multi-mode optic cable.

  • Page 12: Gigabit 1000Base-Sx Fiber Module(Multi-Mode)

    Gigabit 1000Base-SX Fiber Module (Multi-Mode ) Model Name Description MG-001MT Distance: Use the 62.5/125um MMF optic cable for 220m (721 ft) links. Use the 50/125um MMF optic cable for 500 (1640 ft) links. Compliant with IEEE802.3z 1000Base-SX Std. 1 x 1000Base-SX Fiber port (MT-RJ connector). Supports 62.5/125um or 50/125um multi-mode optic cable.

  • Page 13: Gigabit 1000Base-Lx Fiber Module(Single-Mode)

    Gigabit 1000Base-LX Fiber Module (Single-Mode ) Model Name Description MG-001LS Distance: Use the 62.5/125um MMF optic cable for 220m (721 ft) links. Use the 50/125um MMF optic cable for 500 (1640 ft) links. Use the 9/125um SMF optic cable for 10Km links. Compliant with IEEE802.3z 1000Base-SX Std.

  • Page 14: Gigabit 1000Base-Lx Fiber Module(Single-Mode)

    Gigabit 1000Base-LX Fiber Module (Single-Mode ) Model Name Description MG-001LM Distance: Use the 62.5/125um MMF optic cable for 220m (721 ft) links. Use the 50/125um MMF optic cable for 500 (1640 ft) links. Use the 9/125um SMF optic cable for 10Km links. Rear Panel Layout AC input AC input (90~260V/AC, 50~60Hz) UL Safety.

  • Page 15: Rack Mounting

    First, put the Switch on the flat surface. Locate the mounting bracket on the sides of the Switch with the mounting holes on each. Next, insert the screw through the bracket and into the bracket mounting holes in the Switch.

  • Page 16: Installation

    To connect the Use straight-through twisted pair cable to connect the Switch to another Switch or Hub on uplink port. If you connect the Switches on port 1 to port 24, the cable should be changed to crossover cable. Workstation...

  • Page 17: Technical Specifications

    Chapter 6 Technical Specifications 1. Standards Compliance - IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX - IEEE802.3z 1000BASE-SX, 1000BASE-LX - IEEE802.3ab 1000BASE-T 2. Protocol: - CSMA/CD 3. Number Of Ports - 24 integrated ports (10/100Mbps Nway port) - 2 optional Gigabit Ethernet module 4.

  • Page 18: Operating Temperature

    17. Safety & EMI Certificates - CE & FCC-A LINK / ACT 10 / 100M RESET LINK / ACT 10 / 100M POWER Fast Ethernet Switch Laptop Router Proxy Server Firewall Gigabit Ethernet Switch 24 Ports + 2 Ports Giga bit Ethe rnet Switc...

  • Page 19: Appendix

    Appendix I. ANSI/TIA/EIA-568-A PLUG & Twisted-pair Cable The IEE802.3ab Standards permits the use of category 5 or better balanced cable pairs, installed according to ANSI/EIA-568-A. This appendix provides pinout and brief information for the CAT5 unshielded twisted pair cables II. EIA568A pin assignment: Pin Number III.

  • Page 20: Rj-45 Modular Phone Jack

    IV. RJ-45 Modular Phone Jack: 1 2 3 4 5 6 7 8 -17-...
  • Page 21 DOC-UMWR7242D01...
