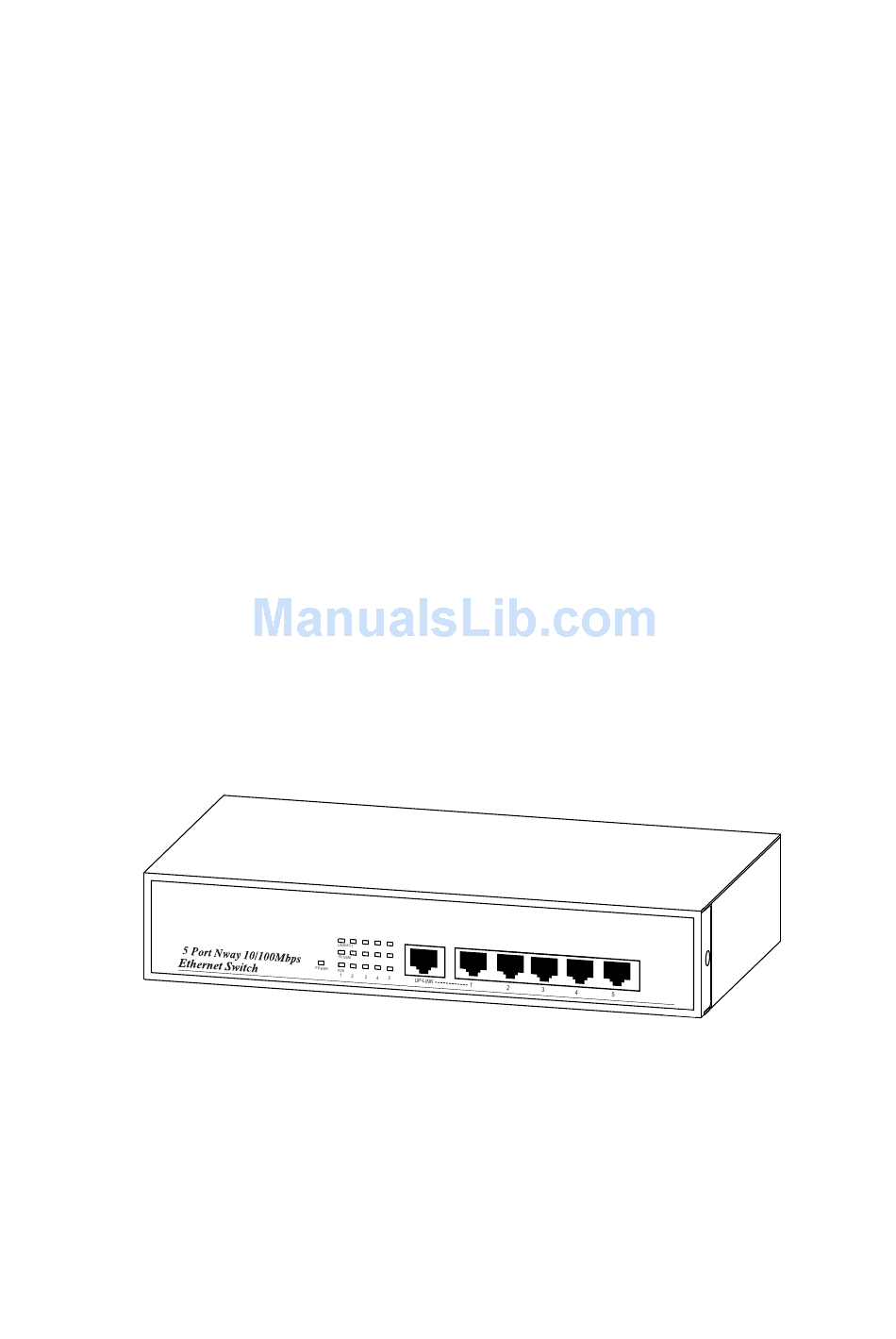

- Page 1 5 Port Nway Fast Ethernet Switch User's Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Rear Panel Layout ----------------------------------------------------------6 AC input---------------------------------------------------------------------6 Chapter 4 -------------------------------------------------------------------7 Installation ----------------------------------------------------------------------7 To connect the Switch to PCs, servers, and other network devices. ---------------------------------------------------------7 To connect the Switch to a Switch or a Hub ----------------------7 Chapter 5 -----------------------------------------------------------------8 Technical Specifications ----------------------------------------------------8... -
Page 4: Introduction
The compact rigid desktop size was specifically designed for ROBO (Remote Office & Branch Office) and small to medium workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrade to network... -
Page 5: Key Features
Key Features 5 Port 10/100BASE T/TX Nway (Auto-negotiation) Switch with RJ-45 connectors Desktop size with compact rigid design Auto-detect of Full/Half-duplex modes in all ports Dedicated full-duplex 200Mbps bandwidth on each port Broadcast storm control Store & Forward switching methods IEEE 802.3x flow control for Full-duplex... -
Page 6: Package Contents
Chapter 2 Package Contents Before you start to install the Switch, please verify your package that contains the following items: One Fast Ethernet Switch One Power Cord One User's Manual Note: If any of these items is found missing or damaged, please contact your local supplier for replacement. -
Page 7: Ii. Uplink Port
Uplink port shared with the port #1 for expanding to another Hub or Switch. The Uplink port and port 1 share the same port & function. Do not use both of the Uplink port and port 1 at the same time. -
Page 8: Led Indicators Of 5 Port 10/100Mbps Switch
III. LED Indicators of 8 Port 10/100Mps Switch Color Power Yellow Green 10/100M Green LINK/ACT Yellow Ethernet Switch Status Description Power on Full-duplex Half-duplex Flashing Partial collision occurs Port is on the 100M status Port is on the 10M status... -
Page 9: Led Definitions
VI. LED Definitions Power LED Flashing 10/100M LED LINK/ACT LED Flashing Rear Panel Layout AC input AC input (100~240V/AC, 50~60Hz) UL Safety : The unit is powered on and ready for use. : The unit is powered off. : The port is operating at Full-duplex. : The port is operating at Half-duplex without any data being transmitted or received. -
Page 10: Installation
Switch to a Switch or a Hub Use straight-through twisted pair cable to connect the Switch to another Switch or Hub on uplink port. If you connect the Switches on port 1 to port 5, the cable should be changed to crossover cable. -
Page 11: Technical Specifications
Chapter 6 Technical Specifications 1. Standards Compliance - IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX 2. Number Of Ports - 5 integrated ports: 10/100Mbps Nway port 3. Expansion Interface - 1 uplink port 4. Fully Flow Control Supported - Half-duplex mode: Backpressure - Full-duplex mode: IEEE 802.3x 5. -
Page 12: Operating Temperature
15. Dimension (L x W x H) - 228mm x 123mm x 44mm 16. Weight - 0.89 Kg 17. Safety & EMI Certificates - CE & FCC-B Fast Ethernet Switch Web Server Laptop Router Proxy Server Firewall Fast Ethernet Switch... - Page 13 DOC-UMWD050K001...
