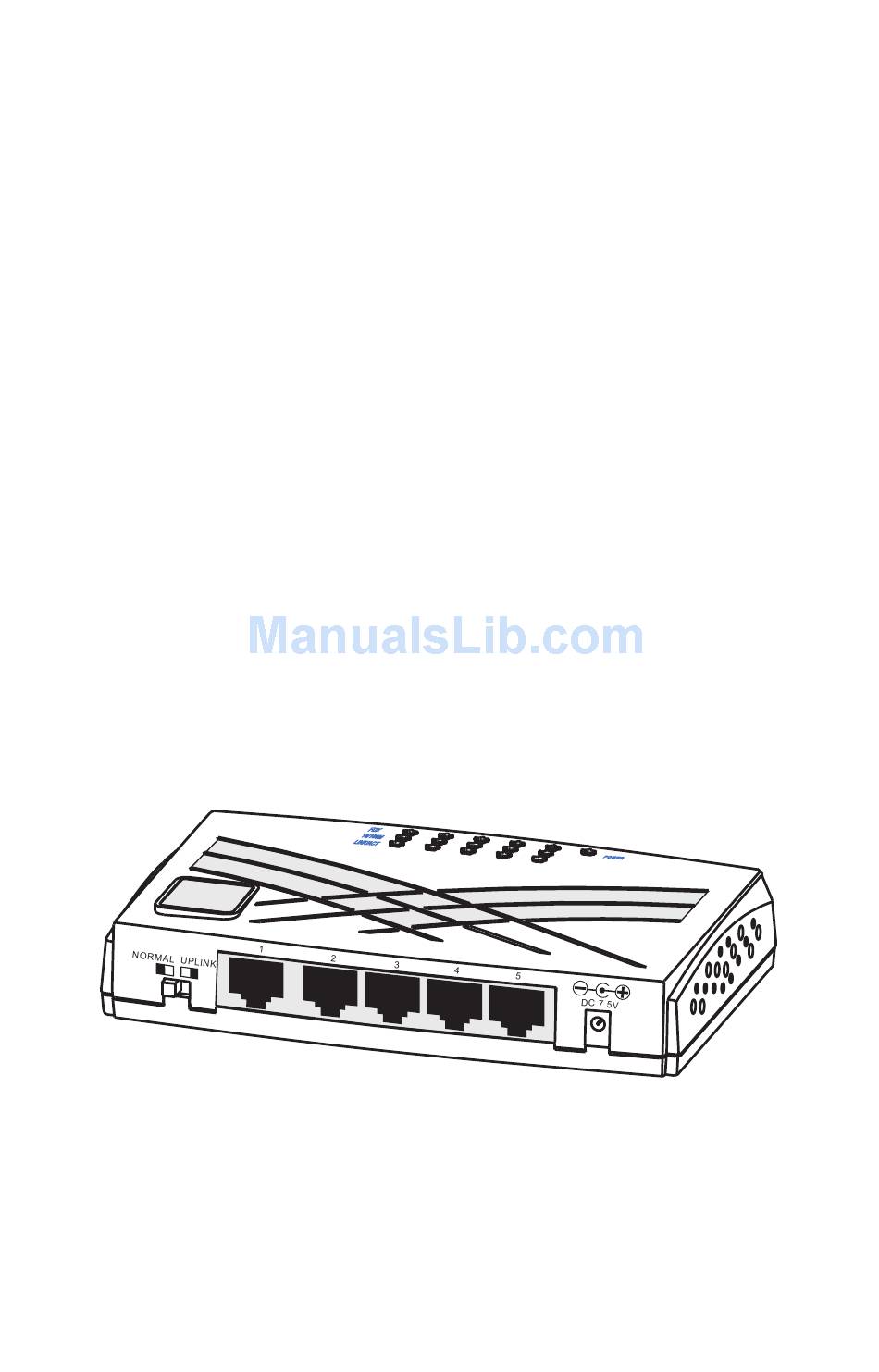

- Page 1 5 Port Nway Fast Ethernet Switch User's Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
10/100M LED -----------------------------------------------------------7 LINK/ACT LED ---------------------------------------------------------7 Chapter 4 -------------------------------------------------------------------8 Installation ----------------------------------------------------------------------8 To connect the Switch to PCs, servers, and other network devices. ----------------------------------------------------------8 To connect the Switch to a Switch or a Hub ----------------------9 Chapter 5 -----------------------------------------------------------------10 Technical Specifications ---------------------------------------------------10... -
Page 4: Introduction
Chapter 1 5 Port Nway Fast Ethernet Switch Introduction The Switch provides 5 10/100Mbps ports. The Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of user increase continuously. -
Page 5: Key Features
Key Features 5 Port 10/100BASE T/TX Nway (Auto-negotiation) Switch with RJ-45 connectors Palm Size With Transparent Enclosure Design Auto-detect of Full/Half-duplex modes in all ports Dedicated full-duplex 200Mbps bandwidth on each port Broadcast storm control Store & Forward switching methods IEEE 802.3x flow control for Full-duplex... -
Page 6: Package Contents
Chapter 2 Package Contents Before you start to install the Switch, please verify your package that contains the following items: One Fast Ethernet Switch One Power Adapter One User's Manual Magnet (optional) Power Adapter Magnet Note: If any of these items is found missing or damaged, please contact your local supplier for replacement. -
Page 7: Ii. Power Dc 7.5V
The Switch provides 5 10/100Mbps switching ports that could sense the 10/100M speed and negotiate Full/Half-duplex mode automatically. These switching ports allow users connect the Switch to 10BASE-T and 100BASE-TX devices. II. Power DC 7.5V Power adapter. -
Page 8: Iv. Uplink Port
III. NORMAL/UPLINK Switch One NORMAL/UPLINK switch on the front panel allows users to select connecting to a PC or a Hub/Switch. The default setting is in the "NORMAL" position. The port is configured to connect with a PC. When the switch is pushed forward in "UPLINK" position, it allows users to connect with a Hub or a Switch using straight-through twisted pair cable. -
Page 9: Led Indicators Of 5 Port 10/100Mps Switch
V. LED Indicators of 5 Port 10/100Mps Switch Color Power Yellow Green 10/100M Green LINK/ACT Yellow Yellow Status Description Power on Full-duplex Half-duplex Flashing Partial collision occurs Port is on the 100M status Port is on the 10M status 10/100Mbps port 5(1~5) -
Page 10: Vi. Led Definitions
VI. LED Definitions Power LED Flashing 10/100M LED LINK/ACT LED Flashing : The unit is powered on and ready for use. : The unit is powered off. : The port is operating at Full-duplex. : The port is operating at Half-duplex without any data being transmitted or received. -
Page 11: Installation
I. To connect the Switch to PCs, servers, and other network devices. Use straight-through twisted-pair cable (Cat. 5) to connect the Switch to PCs, servers and other network devices. The Normal/Uplink Switch is on the "Normal" position. Networks can be build as figure shown. Server Workstation... -
Page 12: To Connect The Switch To A Switch Or A Hub
II. To connect the Switch to a Switch or a Hub Use straight-through twisted pair cable to connect the Switch to another Switch or Hub on uplink port. The Normal/Uplink Switch is on the "Uplink" position. If you connect the Switches on port 1 to port 5, the cable should be changed to crossover cable. -
Page 13: Technical Specifications
Chapter 5 Technical Specifications 1. Standards Compliance - IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX 2. Number Of Ports - 5 ports: 10/100Mbps Nway port 3. Expansion Interface - 1 uplink port 4. Fully Flow Control Supported - Half-duplex mode: Backpressure - Full-duplex mode: IEEE 802.3x 5. -
Page 14: Operating Temperature
- 10% ~90% RH (Non-condensing) 15. Dimension (L x W x H) -130mm x 80mm x 25mm 16. Weight - 0.14Kg 17. Safety & EMI Certificates - CE & FCC-B Fast Ethernet Switch Laptop Router Proxy Server Firewall Fast Ethernet Switch Web Server... - Page 15 DOC-UMWS050K001...
