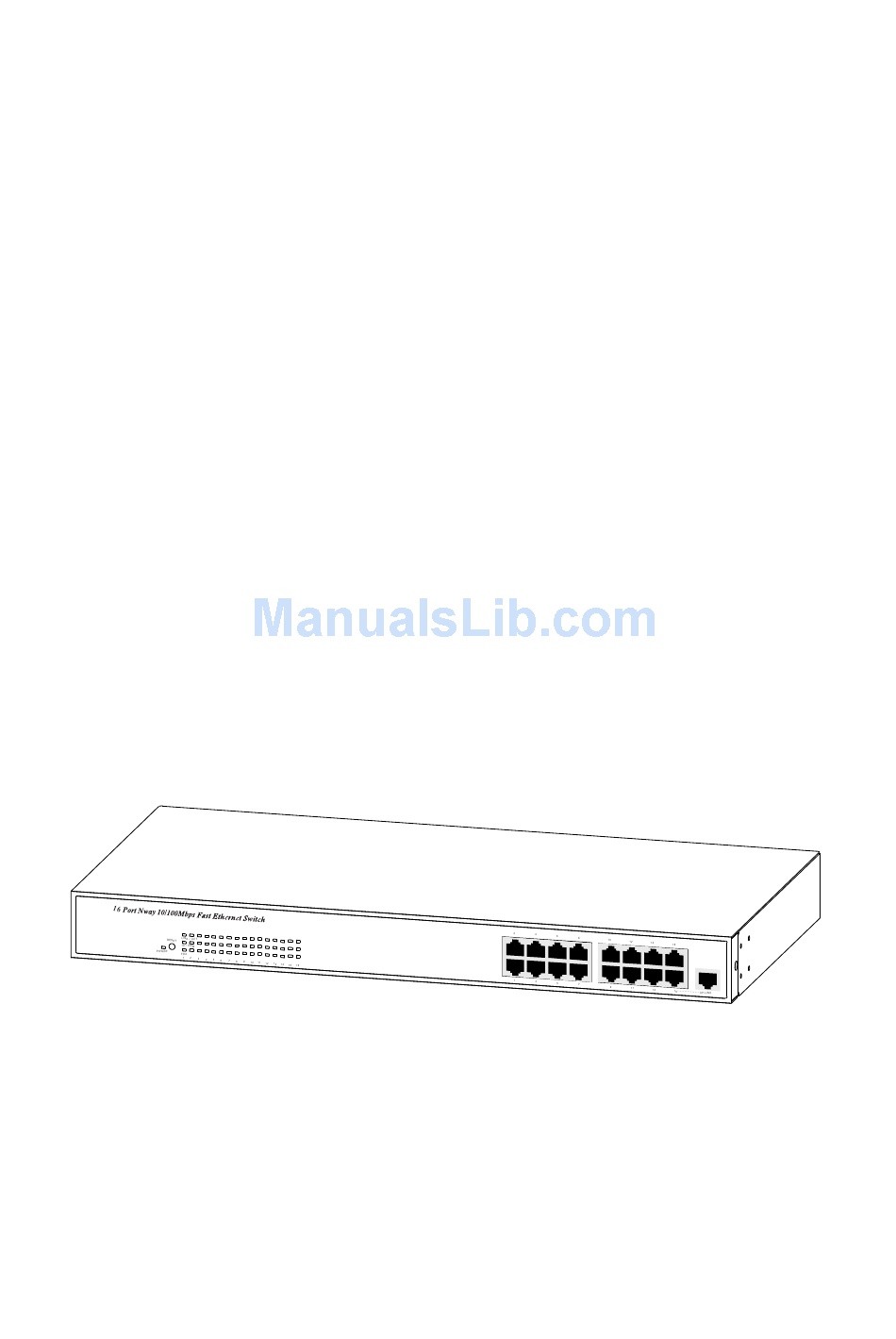

- Page 1 16 Port Nway Fast Ethernet Switch User's Manual...
- Page 2 FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Chapter 5 -------------------------------------------------------------------9 Rack Mounting -----------------------------------------------------------------9 Chapter 6 ------------------------------------------------------------------10 Installation ---------------------------------------------------------------------10 To connect the Switch to PCs, servers, and other network devices. -------------------------------------------------------10 To connect the Switch to a Switch or a Hub --------------------10 Chapter 7 -----------------------------------------------------------------11 Technical Specifications ---------------------------------------------------11... -
Page 4: Introduction
With the Rack-mount size was specifically designed for ROBO (Remote Office & Branch Office) and medium to large workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrades to network capacity. -
Page 5: Key Features
Key Features 16 Port 10/100Base T/TX Nway (Auto-negotiation) Switch with RJ-45 connectors. Plus 1 fiber (100Base-FX) module port 19-inch standard Rack- mount size Auto-detect of Full/Half-duplex modes in all ports Dedicated full-duplex 200Mbps bandwidth on each port Broadcast storm control Store &... -
Page 6: Package Contents
Chapter 2 Package Contents Before you start to install the Switch, please verify your package that contains the following items: One Fast Ethernet Switch Rack-mount Kit For Rack Installation One Power Cord One User's Manual Power Cord Rack-mount Kit Note: If any of these items is found missing or damaged, please contact your local supplier for replacement. -
Page 7: Ii. Uplink Port
Uplink port shared with the port #15 for expanding to another Hub or Switch. The Uplink port and port 15 share the same port & function. Do not use both of the Uplink port and port 15 at the same time. -
Page 8: Iv. Reset
III. LED Indicators of 16 Port 10/100Mps Switch Color Power Yellow Green 10/100M Green LINK/ACT Yellow IV. Reset Allows the users refresh Automatic-learning of network configuration. RESET POWER Yellow Status Description Power on Full-duplex Half-duplex Flashing Partial collision occurs Port is on the... -
Page 9: Led Definitions
V. LED Definitions Power LED Flashing 10/100M LED LINK/ACT LED Flashing : The unit is powered on and ready for use. : The unit is powered off. : The port is operating at Full-duplex. : The port is operating at Half-duplex without any data being transmitted or received. -
Page 10: Ii. Optional Module
This 100BASE-FX Module is for use with Fiber Optics cable with one SC or ST type connector. SC mode ST mode The fiber module supports non-console switch with hardware setting. For console switch, the fiber module supports software setting. Please refer to the following procedures at page 8:... -
Page 11: Hardware Setting
HALF1 pin. HALF1 Software Setting If your Switch supports console port, please use the software setting. For detail information, please to see the console port user's manual. Note: The power must be turned off before inserting or removing modules. -
Page 12: Rack Mounting
First, put the Switch on the flat surface. Locate the mounting bracket on the sides of the Switch with the mounting holes on each. Next, insert the screw through the bracket and into the bracket mounting... -
Page 13: Installation
Switch to a Switch or a Hub Use straight-through twisted pair cable to connect the Switch to another Switch or Hub on uplink port. If you connect the Switches on port 1 to port 16, the cable should be changed to crossover cable. -
Page 14: Technical Specifications
Chapter 7 Technical Specifications 1. Standards Compliance - IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX 2. Number Of Ports - 16 integrated ports: 10/100Mbps Nway port 3. Expansion Interface - 1 uplink port 4. Fully Flow Control Supported - Half-duplex mode: Backpressure - Full-duplex mode: IEEE 802.3x 5. -
Page 15: Operating Temperature
15. Dimension (L x W x H) - 440mm x 220mm x 44mm 16. Weight - 2.57 Kg 17. Safety & EMI Certificates - CE & FCC-B Fast Ethernet Switch Laptop Router Proxy Server Firewall Fast Ethernet Switch FTP Server... - Page 16 DOC-UMWR160T001...
