Connections

AV/Radio

Multi-channel/
Monoblock amplifier
IMPORTANT NOTE
Subwoofer pre-amp is a non-fading mono
output.
Always run signal wires away from power cables
to reduce the possibility of noise.
34
15
1

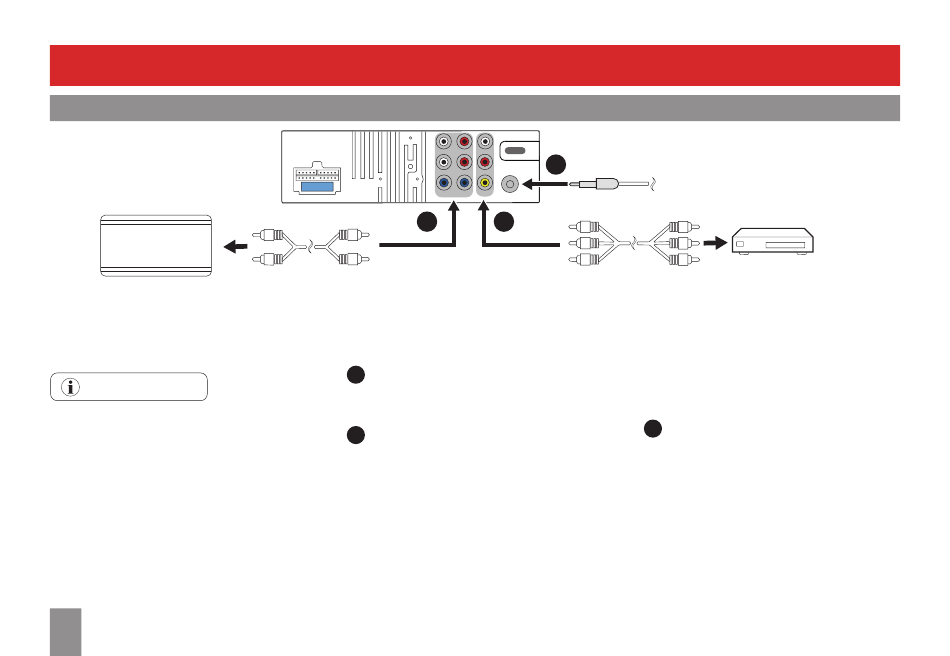

Pre-amp audio output
Front out (FL & FR)
Rear out (RL & RR)
Subwoofer out (SUB1 & SUB2)
1 Using RCA audio cables (not included),
connect the audio output on the unit to an
external amplifier (not included).
2
Using RCA audio cables (not included),
connect the audio input ("L-IN" and "R-
IN") on the unit to the audio output on an
external AV source.
Or using an RCA to 3.5mm/USB-C/lightning
adapter (not included), connect the audio
input ("L-IN" and "R-IN") to the audio output
on your mobile phone.
FL FR L-IN
3
RL RR R-IN
SUB1 SUB2 V-IN
RADIO
2
AV input
Audio in (L-IN & R-IN)
Video in (V-IN)
FM/AM antenna (not included)
External AV source
Using a yellow RCA cable (not included),
connect the video input ("V-IN") on the unit
to the video output on an external AV source.
3 Connect an FM/AM antenna (not included)
for better radio reception.
