Unit Installation

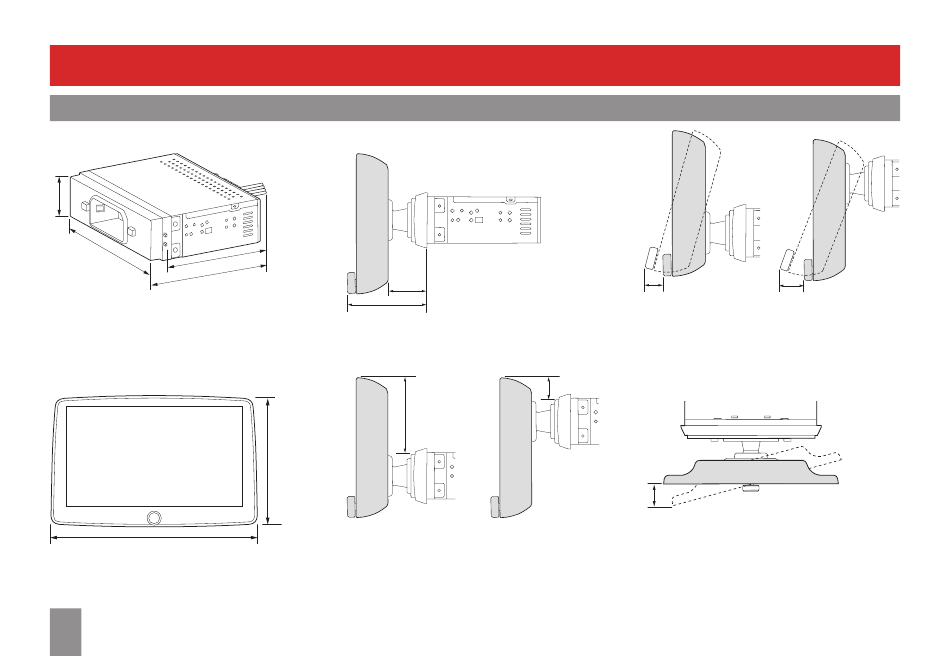

Installation Dimensions

Unit Dimensions
A
B
D
C
A: 1.85" (47mm) B: 6.79" (172.5mm)
C (Overall depth): 6.59" (167.5mm)
D (Installation depth): 5.93" (150.5mm)
Display Dimensions
E
E: 10.28" (261mm) F: 6.97" (177mm)
30
Display Mounting Dimensions
G2
G1
G1: 3.54" (90 mm)
H1
F
H1 (at highest position): 3.98" (101mm)
H2 (at lowest position): 1.54" (39mm)
J1
J1 (with maximum tilting angle at highest
position): 0.59" (15mm)
G2: 1.85" (47 mm)
J2 (with maximum tilting angle at lowest
position): 1.61" (41mm)
H2
K
K (with maximum tilting angle): 1.26" (32mm)
J2
