Connections

Speaker Wiring

CAUTION
Do not chassis ground any speaker wire leads.
Only use 4-8 Ω speakers.
DO NOT use 1-3 Ω speakers.
Do not bridge any of the channels. They are only
to be wired in stereo mode.
IMPORTANT NOTE
Unused speaker wires need to be insulated with
tape, heat shrink, or crimp connectors to avoid
damage to the unit. Never use wire nuts.
Double check speaker polarity when making
connections.
32
FL FR L-IN
RL RR R-IN
15
SUB1 SUB2 V-IN

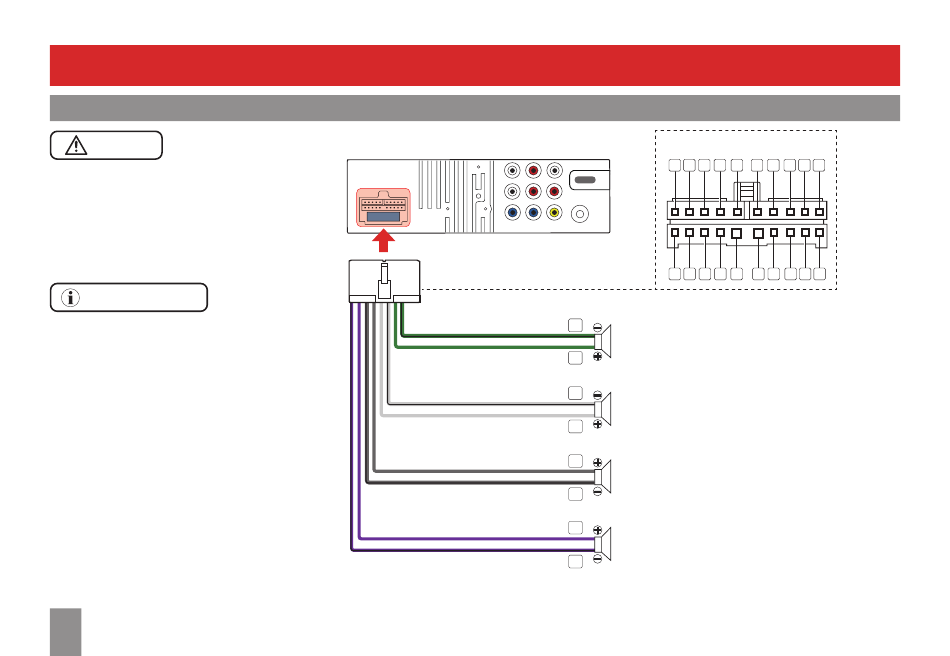

REAR L- (Green/black)
REAR L+ (Green)
FRONT L- (White/black)
FRONT L+ (White)
FRONT R+ (Gray)
FRONT R- (Gray/black)
REAR R+ (Purple)
REAR R- (Purple/black)
