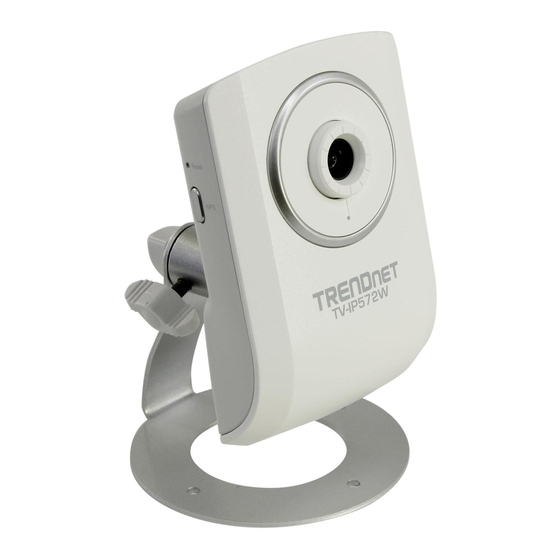

TRENDnet TV-IP572W User Manual

Megapixel wireless n internet camera megapixel wireless n day/night internet camera
Hide thumbs Also See for TV-IP572W:
Table of Contents

Advertisement

Quick Links

Cover Page
TRENDnet User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TV-IP572W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TV-IP572W

Summary of Contents for TRENDnet TV-IP572W

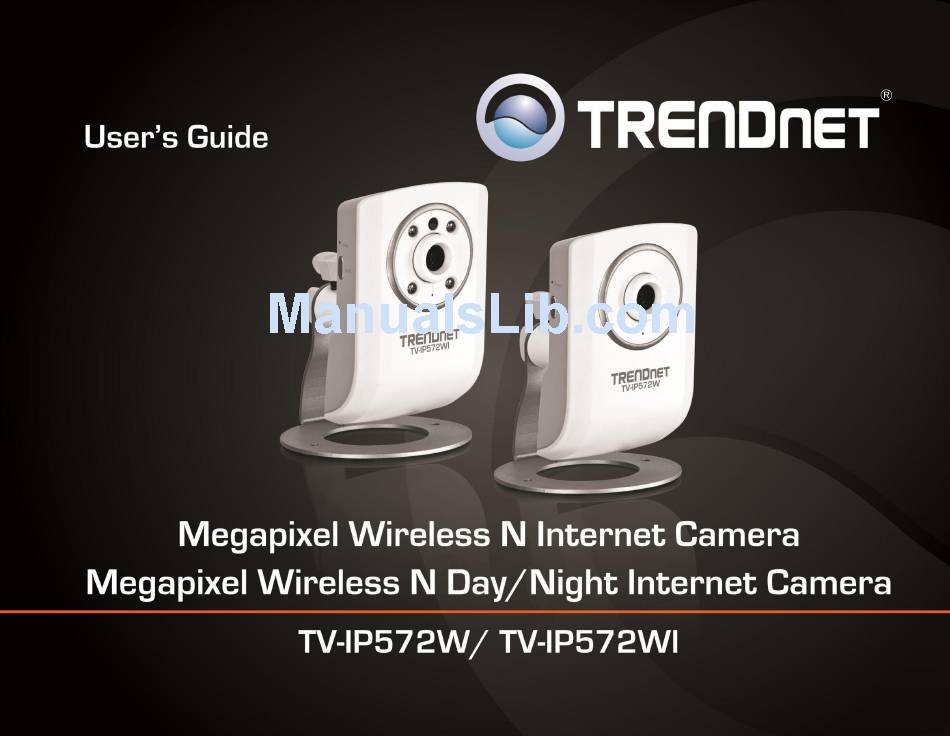

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Table of Contents TRENDnet User’s Guide Video Clip ........................ 24 Contents Snapshot ......................... 26 SD Management...................... 26 Product Overview ................1 Motion Detection ......................27 Package Contents ......................1 Tools ..........................28 Features ......................... 1 System ........................28 Product Hardware Features................... 2 Firmware Upgrade ....................

  • Page 3: Product Overview

    Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video profiles to record HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, H.264/MPEG-4/MJPEG image compression, date-and-time overlays,...

  • Page 4: Product Hardware Features

    Power -This LED indicator is solid blue when your camera is powered on. Otherwise if this LED indicator is off, there is no power to your camera.  Link – This LED indicator is blinking orange when there is connection/data to your camera. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 5 Micro SD slot – Insert a Micro-SD card to store camera video files.  WPS (Wi-Fi Protected Setup) – Push and hold this button for 3 seconds to activate WPS. The button LED is blinking green when WPS is activated. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 6: Application Diagram

     Washer- Place the washer between the camera and the Plastic Bolt  Plastic Bolt- Place the plastic bolt after the washer and screw the adjustable arm in place. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 7: Installation

    Attach the included power supply to the DC5V 1.2A receptor on the rear panel of the camera and then connect it to a wall outlet or power strip. A blue LED will light up under the lens indicating that the camera has power. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 8: Starting The Setup Wizard

    When the installation of the Setup Wizard is complete, run the Setup Wizard: 1. Click Start > Programs >TRENDnet>SetupWizard>SetupWizard. The TRENDnet Setup Wizard appears. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 9 Fixed IP: Select this option if your camera is directly connected to a DSL modem and your ISP has supplied you with a fixed IP for your Internet connection. Select the radio button for your connection type and click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 10 9. A summary screen of the settings you have chosen appears. Click Next to continue. You are now ready to use your camera. Click the IP address link or the link button to access the camera’s advanced configuration page. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 11 Select the type of authentication and encryption required by the access point and enter the Key required to connect. Check the radio button for the method of connection you want to use for your camera and click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 12 Next to continue. When the Setup Wizard has finished, the configuration is complete. If there is no wireless connection found, the following screen will appear: © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 13: Configuration

    Web configuration utility is designed to allow you to easily access and configure your TV-IP572W or TV-IP572WI camera. Open a web browser such as Internet Explorer® and enter the IP address of your camera. To log in, use the User name admin and the password you created in the Setup Wizard.

  • Page 14: Setup Wizard

    Select the appropriate option and click Next to 2. Click Wizard. The Welcome to Internet Connection Setup Wizard screen continue. appears. From the menu on the right side of the screen, click Next to start the Setup Wizard. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 15 Next again and then enter the Timeout settings in hours. Click Next to continue. If you do not want to use the DDNS settings uncheck the Enable checkbox and click Next. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 16 Next to continue. your time zone. Click Enable Daylight Saving if you are going to use that time method and select either Auto Daylight Saving or Set date and time manually. Click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 17: System

    Device Management consists of Admin Password Settings: Admin Password Settings: Here you can change the administrator password settings. Enter the Old Password, New Password, and Confirm New Password in their respective fields.Click Save to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 18 The camera allows users to access the video directly For Internet Explorer, http://camera ip/directview/tvaview.cgi For Non Internet Explorer, http://camera ip/directview/tvjview.cgi When HTTP Authentication is enabled, user name and password are required to access the direct view page. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 19: Network

    Under LAN Settings, select either DHCP Connection or Static IP Address. If you want to setup PPPoE, click the PPPoE checkbox and enter the Username, Password, confirm the Password and click Apply. The Status will change from Disabled to Enabled. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 20 Select the External HTTP port (the default is set) and select the RTSP port (the default is set at 554). If you are using a MAC check the Bonjour checkbox to enable this function. Click Apply to set the changes. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 21: Wireless Setup

    WPA-PSK - is a more secured method of wireless encryption. With WPA-PSK you don’t provide your router with an encryption key but rather a paraphrase. WPA2-PSK – highly secured method of wireless encryption. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 22: Video And Audio

    Video Profile One - Options:  Encode Type – H.264 & MPEG4  Resolution – 1280x800/640X400/320X192/160X96  FPS – 30/15/10/5/3/2/1  Encode Method – CBR/Quality  Bps – 4Mbps/3Mbps/2Mbps/1.5Mbps/1Mbps/768Kbps/512Kbps/384Kbps/256Kbps/12 8Kbps/64Kbps  RTSP URL – play1.sdp © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 23: Day/Night Mode

    Audio Setup The TV-IP572W/TV-IP572WI allows users to record and broadcast audio. Click the Speaker checkbox to change the volume settings on the camera’s speaker. Click the Video Profile Three - Options: Microphone checkbox and select your preference from the volume drop-down list.

  • Page 24: Action

    Click the Recording checkbox to enable camera recording. All data is stored on the removable SD card. There are three main sections: Trigger By: Always, Motion, Schedule, Recording: Configure the recording options SD Card: Recording files size © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 25 Here you can click one of the day’s checkboxes and you can create a start and authenticate the user every time they log on to the samba server. end time. The Recording Type changes to pre-record or pre-event settings. This means © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 26: Video Clip

    Target: The targets available are FTP and E-mail. If you want to record data to an FTP camera server, click FTP. If you want to record data to an E-mail account click E-mail. Passive Mode – Server/client initiation access to bypass proxies. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 27 Send next email after – the alert email interval times Use SSL-TLS – this is a secure method (please consult your administrator before using this setting). There are two options, SSL-TLS or STARTTLS. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 28: Snapshot

    Set Micro-SD card format toFAT32, it is recommendedformatting the SD card to make sure the SD card is compatible with the camera. (Please backup all data on the SD card to other locations prior to this procedure) © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 29: Motion Detection

    Drawing Mode provides two options. Once you select Draw motion area, take your mouse and draw a rectangular area where you want the camera to detect the motion. If you want to remove the motion detection area select Erase motion area and the red © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 30: Tools

    Upload button to upgrade the firmware. When you want to reset the camera to system default, click the Restore Factory Defaults button to reset the system. If the system © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 31: Advanced

    The description is laid out in the picture below. For more monitoring features, please refer to SecurView Pro software user’s guide for details. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 32: How To Setup/Access The Camera Remotely

    HTTP Port on the camera is 80. The example shows above is using port number 9000. 4. Open another web browser and go to your Router’s Web Configuration page. (In the example, TRENDnet’s TEW-651BR Wireless N router is used) © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 33 Configure DDNS on your router 3. Enable DDNS, fill out the following information and then click Apply. 1. Go to Camera’s DDNS  Ports Number section, assign a HTTP port for your camera and click Apply. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 34 Some router might use Port Forwarding or Special applications for this function. The setup steps should be very similar. 5. Open another web browser and enter your DDNS domain and camera’s port number. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 35: Technical Specifications

    802.11n: up to 150Mbps Output: 5V, 1.2A external power adapter Security 64/128-bit WEP, WPA/WPA2-PSK Dimension 75 x 115 x 30mm (2.95 x 4.5 x 1.2 in.) Output Power 802.11b: 17dBm (typical) Weight 115 g (4.2 oz) © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 36 Resolution: Define individual resolution for up to 4 profiles Power, Link/Act Required storage: 32MB (minimum per profile) SD slot Supports Micro SD (up to 32GB) Recording type: event based (motion detection and digital input trigger), © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 37 IEEE 802.11b, IEEE 802.11g and IEEE 802.11n Max frame rate: 1280 x 800 @ 5fps, 640 x 400/320 x 192@30fps Frequency 2.4 ~ 2.497 GHz ISM band JPEG quality: Low, Fair, Standard, Good, Excellent © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 38 Trigger event: motion detection or digital input signal Action: send real-time snapshot or video recording to FTP or email Port Settings HTTP port: 80 (default) RTSP port: 554 (default) Time Synchronize with NTP server or set time / date manually © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 39: Troubleshooting

    Makesure that the Network Camera isn’t conflicting with any Web server you may have running on your network. Thedefaultroutersettingmightbeapossiblereason.Checkthattheconfigurationoft heroutersettingsallowtheNetworkCameratobe accessed outside your local LAN. 4. White vertical lines appear on the image from the camera ItcouldbethattheCMOSsensor(asquarepanelsituatedbehindthelensthatmeasure sthelightsignalsandchangesitintoadigital formatsoyourcomputercanpresentitintoanimagethatyouarefamiliarwith)hasbec omeoverloadedwhenithasbeenexposedto © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 40 This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 41 Directive 1999/5/EC. Português TRENDnet declara que este TV-IP572W / TV-IP572WI está Español Por medio de la presente TRENDnet declara que el TV-IP572W / [Portuguese] conforme com os requisitos essenciais e outras disposições da [Spanish] TV-IP572WI cumple con los requisitos esenciales y cualesquiera Directiva 1999/5/CE.
  • Page 42 Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS the developers.
