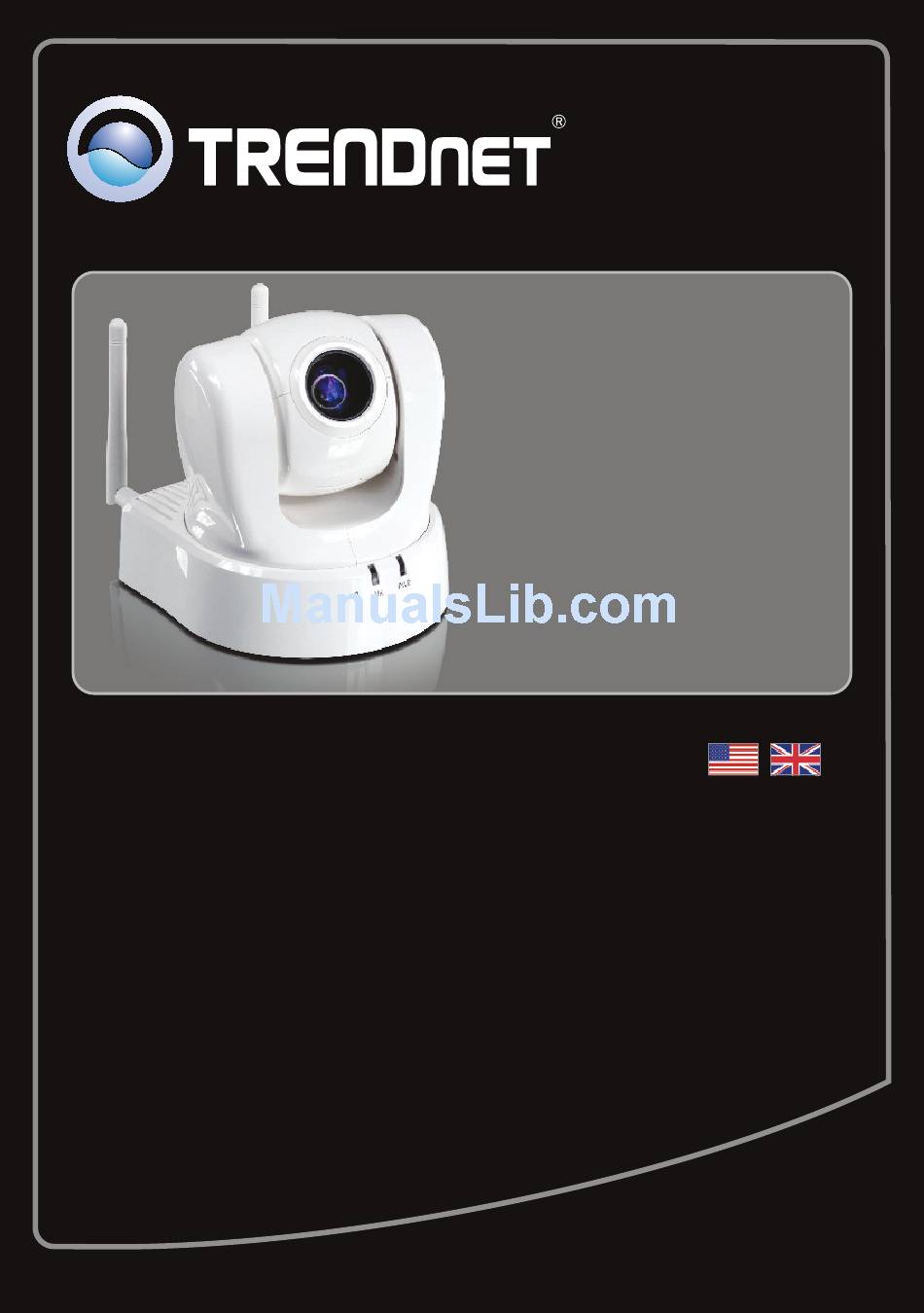

- Page 1 Quick Installation Guide TV-IP612WN 1.01...
- Page 2 Table of Contents English 1. Before You Start Hardware Installation and Configuration Troubleshooting Wireless Tips Version 08.26.2010...
-
Page 3: System Requirements
1. Before You Start Package Contents TV-IP612WN CD-ROM (Utility and User’s Guide) Multi-Language Quick Installation Guide 2 x 2dbi Detachable Antenna Cat. 5 Ethernet Cable (1.5m/5ft.) Mounting Kit Power Adapter (12V DC, 2A) System Requirements A computer with a wired network adapter properly installed. CD-ROM Drive VGA Resolution: 800 x 600 or above Web Browser: Internet Explorer (6.0 or higher) - Page 4 2. Hardware Installation and Configuration Note: 1. It is recommended that you configure the IP Camera from a wired computer. 2. If you would like to use IPViewPro 2.0 software, please install the software by clicking the Install IPView Pro 2.0 in the Autorun window and refer to the User's Guide on the CD for more information 1.
- Page 5 5. Click Close. 6. Double click on the SetupWizard icon on your desktop. 7. Attach the antennas to the IP camera. 8. Connect a RJ-45 network cable from a Switch/Router to the Ethernet port on the IP Camera. 9. Connect the Power Adapter to the IP Camera and then to a power outlet.
- Page 6 12. Enter your ID and password. Then click Next. By default: ID: admin Password: admin 13. Configure the Camera Name and Camera Time. Click Copy Local Time to automatically configure the Camera Time to match your computer. Then click Next. 14.
- Page 7 17. Select your wireless network from the Available AP dropdown list. If your wireless network does not appear, manually enter the SSID of your wireless network. If you have Encryption enabled, select the Authentication, select the Encryption and enter your Key. Then click Next.
- Page 8 22. Please wait while the settings on your cameras are being saved. 23. Click on the following URL or click Link to open up the browser configuration. 24. Enter the User name and Password, and then click OK. By default: User Name: admin Password: admin 25.
- Page 9 Troubleshooting section, User's Guide on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet...
- Page 10 Troubleshooting I inserted the Utility CD-ROM into my computer's CD-ROM Drive but the installation menu does not appear automatically. What should I do? For Windows 7, if the installation menu does not appear automatically, click on the Windows Icon on the bottom left hand corner of the screen,, click the “Search programs and files”...
- Page 11 Configuration. If you do not have a DHCP server on your network, the default IP address is 192.168.10.30. The default administrator ID and password is admin. If you still encounter problems or have any questions regarding the TV-IP612WN, please contact TRENDnet's Technical Support Department.
- Page 12 Wireless Tips The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. Do not turn off the SSID broadcast The SSID broadcast is intended to be on and turning it off can cause connectivity issues.
- Page 13 There are a number of other environmental factors that can impact the range of wireless devices. 1. Adjust your wireless devices so that the signal is traveling in a straight path, rather than at an angle. The more material the signal has to pass through the more signal you will lose. 2.
- Page 18 Copyright ©2010. All Rights Reserved. TRENDnet.
