Summary of Contents for HighPoint RocketAIC 7749M2W

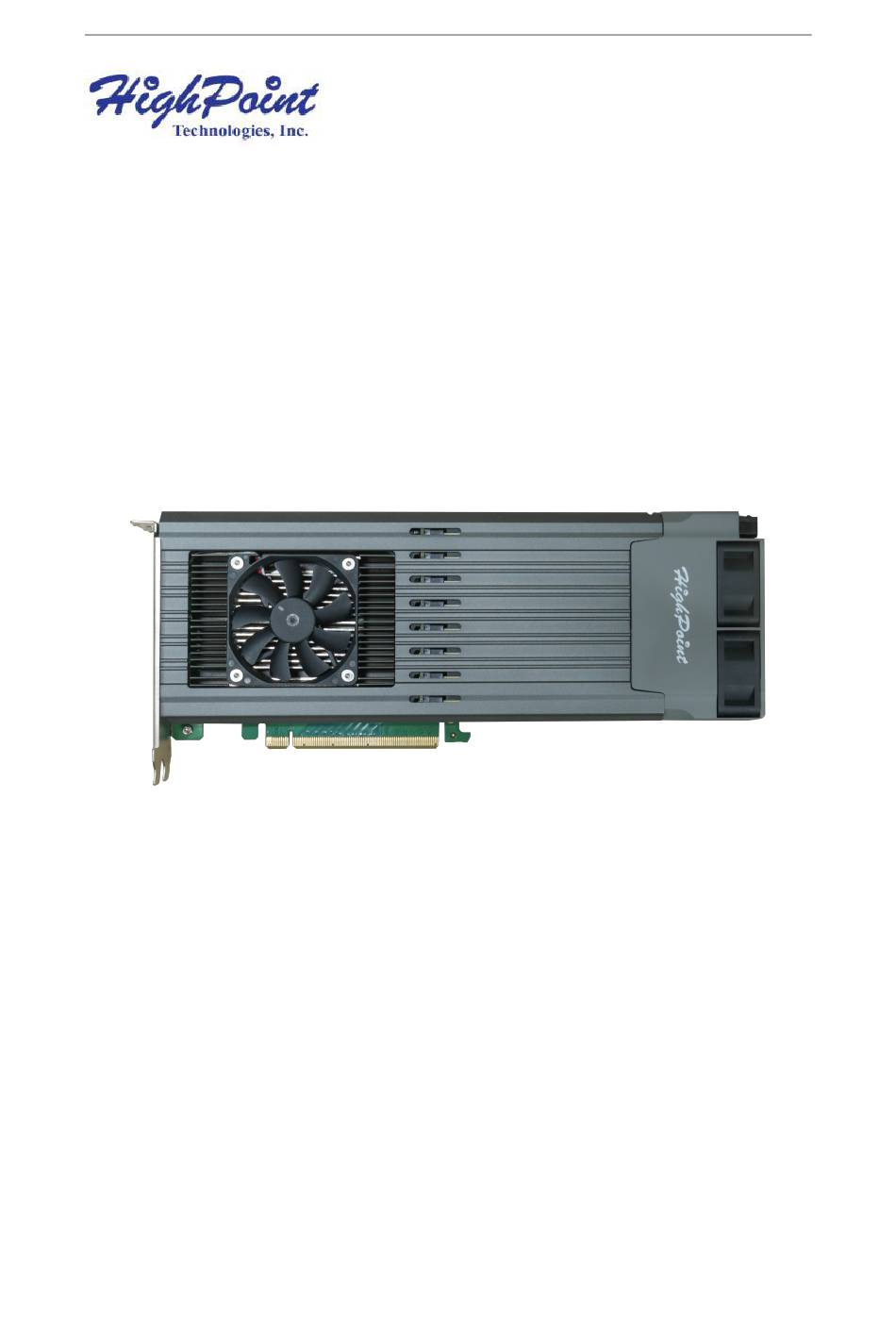

- Page 1 RA7749M2W NVMe AIC SSD User Guide RocketAIC 7749M2W NVMe AIC SSD User Guide V1.00 - August 13, 2024 Copyright 2024 HighPoint Technologies, Inc. All rights reserved HighPoint Technologies, Inc...
-
Page 2: Table Of Contents
2.1. RA7749M2W Layout ..................3 2.2. PCIe Host Interface ..................4 2.3. Storage Interface ................... 4 2.4. Basic Specifications ..................4 3. RA7749M2W Installation Instructions ..........5 4. Revision History ..................6 Version 1.00, August 13, 2024 ................6 HighPoint Technologies, Inc... -
Page 3: Overview
RA7749M2W NVMe AIC SSD User Guide 1. Overview The RocketAIC 7749M2W is the latest member of our PCIe Gen4 NVMe AIC SSD product family. The RocketAIC 7749M2W represents the next generation of compact RAID solutions and was designed for Industrial & Edge Server applications that demand a compact, easily integrated, ultra- high-density RAID storage solution with blistering PCIe Gen4 x16 performance and enterprise-class reliability and endurance. -
Page 4: Ra7749M2W Hardware Description
The fan is used to dissipate heat from the SSDs in the institution. ⑤ ⑥ External Power Port The system power supply unit powers the RA7749M2W through this port connected to the external 6-pin PCIe power cable. HighPoint Technologies, Inc... -
Page 5: Pcie Host Interface
11.18" Width 1.53" Dimension Height 4.92" Power consumption 154.88W Power supply PCIe 3.3V rails and the 12V rails Work temperature +5°C ~ + 55°C Storage temperature -20°C ~ +80°C MTBF (Mean Time Before Failure) 1.5 million hours HighPoint Technologies, Inc... -
Page 6: Ra7749M2W Installation Instructions
When finished, turn on the power to the system. Note: In case of insufficient power supply to the motherboard PCIe slot, connect the 6-pin PCIe power cable to the external power connector on the right side of the RocketAIC 7749M2W before turning on the power to the system. -
Page 7: Revision History
RA7749M2W NVMe AIC SSD User Guide 4. Revision History Version 1.00, August 13, 2024 Initial version. HighPoint Technologies, Inc...
