TRENDnet TV-IP651W User Manual

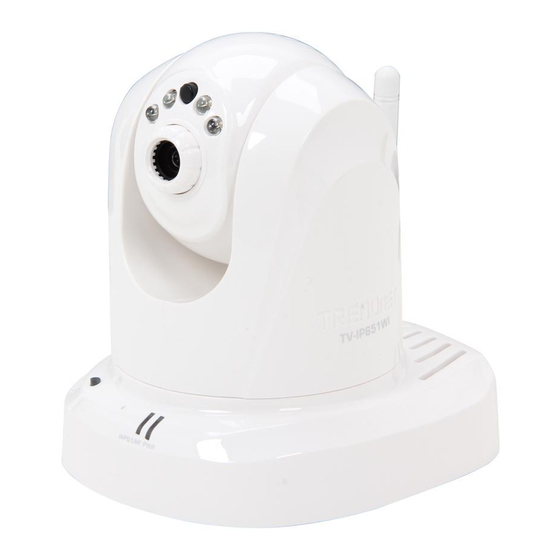

Wireless n ptz internet camera day/night
Hide thumbs Also See for TV-IP651W:
Table of Contents

Advertisement

Quick Links

Cover Page
TRENDnet User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TV-IP651W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TV-IP651W

Summary of Contents for TRENDnet TV-IP651W

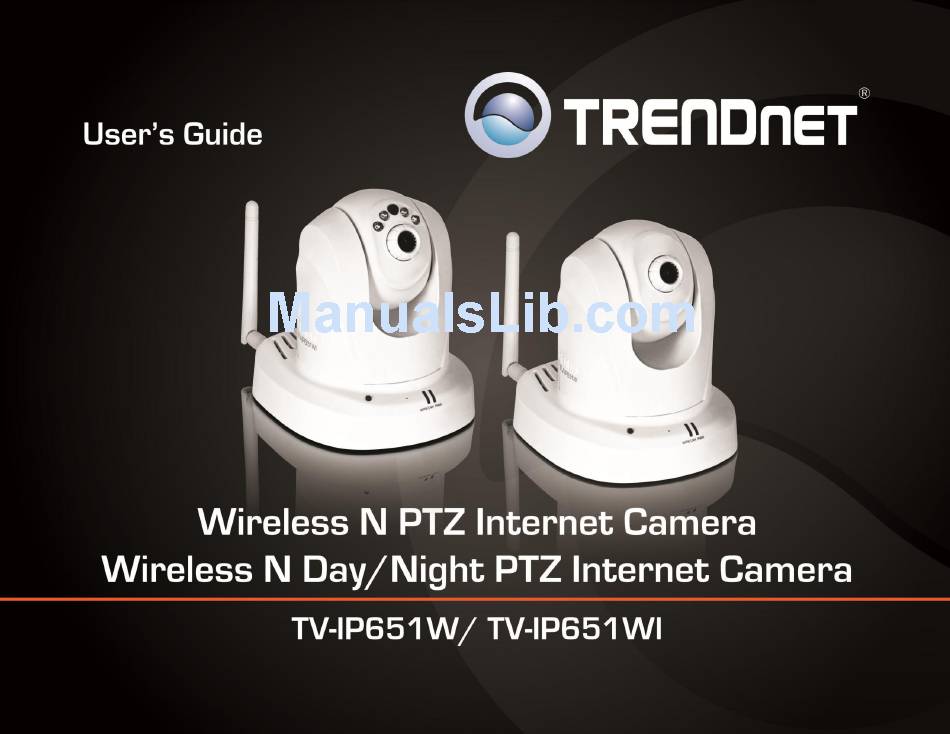

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    Video ........................13 Audio ........................13 Wireless ........................13 Network........................14 Active Users ......................14 Configuring Camera Settings ..................14 System ........................14 Video ........................15 Audio ........................15 Wireless ........................16 Network........................17 © Copyright 2011 TRENDnet. All Rights Reserved.

  • Page 3: Product Overview

    Wi-Fi Protected Setup (WPS). Record 640 x 480 pixel (VGA) video at up to 20 frames per second (fps). Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, pan/tilt Auto-Patrol, date-and-time overlays, one-way audio, an adjustable lens, and four times digital zoom.

  • Page 4: Product Hardware Features

    Antenna – 2dBi detachable antenna Otherwise if this LED indicator is off, there is no power to your camera.  Link – This LED indicator is blinking orange when there is connection/data to your camera. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 5 TV-IP651W / TV-IP651WI TRENDnet User’s Guide © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 6: Installation

    Attach the included power supply to the DC 12V 1.25A receptor on the rear panel of the camera and then connect it to a wall outlet or power strip. A blue LED will light up under the lens indicating that the camera has power. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 7: Wall Mount Installation

    Secure the metal plate to the base of the Camera with the two screws provided.  The camera can now be mounted to the ceiling or a wall. See the diagram below for more information. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 8: Starting The Setup Wizard

    When the installation of the Setup Wizard is complete, run the Setup Wizard: 1. Click Start > Programs > TRENDnet > SetupWizard > SetupWizard. The TRENDnet Setup Wizard appears. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 9 Fixed IP: Select this option if your camera is directly connected to a DSL modem and your ISP has supplied you with a fixed IP for your Internet connection. Select the radio button for your connection type and click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 10 9. A summary screen of the settings you have chosen appears. Click Next to continue. You are now ready to use your camera. Click the IP address link or the link button to access the camera’s advanced configuration page. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 11 Select the type of authentication and encryption required by the access point and enter the Key required to connect. Check the radio button for the method of connection you want to use for your camera and click Next to continue. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 12 Next to continue. When the Setup Wizard has finished, the configuration is complete. If there is no wireless connection found, the following screen will appear: © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 13: Configuration

    Web configuration utility is designed to allow you to easily access and configure Click VIEW VIDEO | ACTIVEX or VIEW VIDEO | JAVA to begin viewing live video from your TV-IP651W or TV-IP651WI camera. Open a web browser such as Internet Explorer® your camera.

  • Page 14: Viewing Camera Settings

    Sun’s website free of charge (http://www.java.com) 1. Login to the camera 2. Click ADMINISTRATION. The system status screen appears. From the menu on the left side of the screen, select an option under the STATUS heading. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 15: System

    This screen shows the connection mode, link status, SSID name, channel and encryption This screen shows the details of the video capture settings including Video Resolution, status. Compression Rate, Frame Rate, Frame Size and Light Frequency. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 16: Network

    This screen shows various network statistics related to your camera including IP Address, Subnet Mask and Default Gateway. The TV-IP651W/TV-IP651WI allows you to make configuration changes from anywhere by connecting to the camera using a standard web browser. To configure camera settings: 1.

  • Page 17: Video

    Contrast Control: Allows you to control the contrast level. Enter a value between 1 and 128.  Saturation Control: Allows you to control the saturation level. Enter a value between 1 and 128. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 18: Wireless

    Connection Mode: Infrastructure is a wireless connection using an access point as a transmission point of all wireless devices. Ad-Hoc is a wireless connection used without an access point, where your TV-IP651W or TV-IP651WIis directly connected to your PC. This is done using the on-board wireless adapter on the TV-IP651W or TV-IP651WIconnected to a wireless adapter on the PC.

  • Page 19: Network

    For example, if the port is changed to 1010, users must type “http://192.168.0.100:1010” instead of only “http://192.168.0.100”.  uPnP & uPnP Port Forwarding: Enable these to set your camera as a universal plug n play device on your network. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 20: User

     Sensitivity: Set a percentage level to determine how sensitive the camera is to activity. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 21: Upload

    On this screen you can enter details of an FTP Server that you want to upload images from the camera to.  Host Address: The IP address of the FTP Server  Port Number: The port number to connect to the FTP on, default port is 21. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 22 Motion Detection: Selecting this option sets the camera to e-mail images upon detection of motion. Manual Operation: Selecting this option means the user is responsible for taking a snapshot from the camera to e-mail. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 23: Day/Night Mode (For Tv-Ip651Wi)

    Day Mode Schedule: using the time tabs 00:00 ~ 00:00, it is possible to select times for normal mode. Times outside this will be in night mode. The times need to be entered in a 24 hour format. For example, 08:00 ~ 18:30. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 24: Tools

    If you do not receive the test e-mail, you should check that you have entered the e-mail details correctly in the configuration section. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 25: Factory Reset

    Note: Upgrading the firmware is a sensitive process. Be sure that you have the correct firmware for your model of camera and do not disconnect the power during the upgrade process. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 26: How To Setup/Access The Camera Remotely

    HTTP Port on the camera is 80. The example shows above is using port number 9000. 4. Open another web browser and go to your Router’s Web Configuration page. (In the example, TRENDnet’s TEW-651BR Wireless N router is used) © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 27 Configure DDNS on your router 1. Go to Camera’s DDNS  Ports Number section, assign a HTTP port for your camera and click Apply. 4. Enable DDNS, fill out the following information and then click Apply. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 28 Some router might use Port Forwarding or Special applications for this function. The setup steps should be very similar. 6. Open another web browser and enter your DDNS domain and camera’s port number. © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 29: Technical Specifications

    Date Rate 802.11b: up to 11Mbps 802.11g: up to 54Mbps Privacy Button Privacy mode on/off 802.11n: up to 150Mbps Power Consumption Max. 6.12 Watts Security 64/128-bit WEP, WPA/WPA2-PSK Power Input: 100~240V, 50/60Hz 0.5A © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 30 112 x 110 x 130 mm (4.4 x 4.3 x 5.1 in.) General Sensor: 1/5” CMOS Sensor Weight 485 g (1.1 lbs.) Board Lens Temperature Operating: 0C ~ 40C (32F ~ 104F) Focal Length: 4mm Storage: -25C ~ 70C (-13F ~ 158F) F/No: 1.5 © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 31 802.11n: up to 150Mbps Security 64/128-bit WEP, WPA/WPA2-PSK Output Power 802.11b: 18dBm (typical) 802.11g: 15dBm (typical) 802.11n: 15dBm (typical) Receiving Sensitivity 802.11b: -85dBm at 11Mbps 802.11g: -76dBm at 54Mbps 802.11n: -65dBm at 150Mbps © Copyright 2012 TRENDnet. All Rights Reserved.

  • Page 32: Troubleshooting

    © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 33 This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 34 Directive 1999/5/EC. Português TRENDnet declara que este TV-IP651W / TV-IP651WI está Español Por medio de la presente TRENDnet declara que el TV-IP651W / [Portuguese] conforme com os requisitos essenciais e outras disposições da [Spanish] TV-IP651WI cumple con los requisitos esenciales y cualesquiera Directiva 1999/5/CE.
  • Page 35 Download section limited to, duty, tax, and other fees. and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS the developers.

This manual is also suitable for:

Tv-ip651wi
