TN505 MT5-SR-00-01 Subrack
The MT5-SR-00-01 subrack is designed to hold and interconnect the MT-4E/Z and MT-5 series of receiver,
transmitter and control modules on one universal motherboard. The motherboard makes extensive use of cage
jacks to interconnect the A and B systems supporting a number of fi eld confi gurations. Additional auxiliary control
connectors provide easy access to virtually all control and audio lines, simplifying many standard base / repeater
confi gurations. Modules may be inserted in the subrack in many various confi gurations as shown in Figure 1. The
Control Module can be an audio, base, or repeater controller, as well as UIC-5 or paging modulator. The optional
Utility Module is connected to the left side of the rack (this replaces the old System Regulator functionality). Up
to two optional antenna relays can be connected on the right side of the subrack. The subrack has room for two
transmitter and receiver pairs. The left side connectors are reserved for transmitter and receiver A (C in second
subrack) respectively, while the right side connectors are reserved for transmitter and receiver B (D in second
subrack). Although any transmitter and receiver can be placed in either of the respective slots, convention usually
follows that the lower frequency radios will go in slots A and the higher in slots B to D.

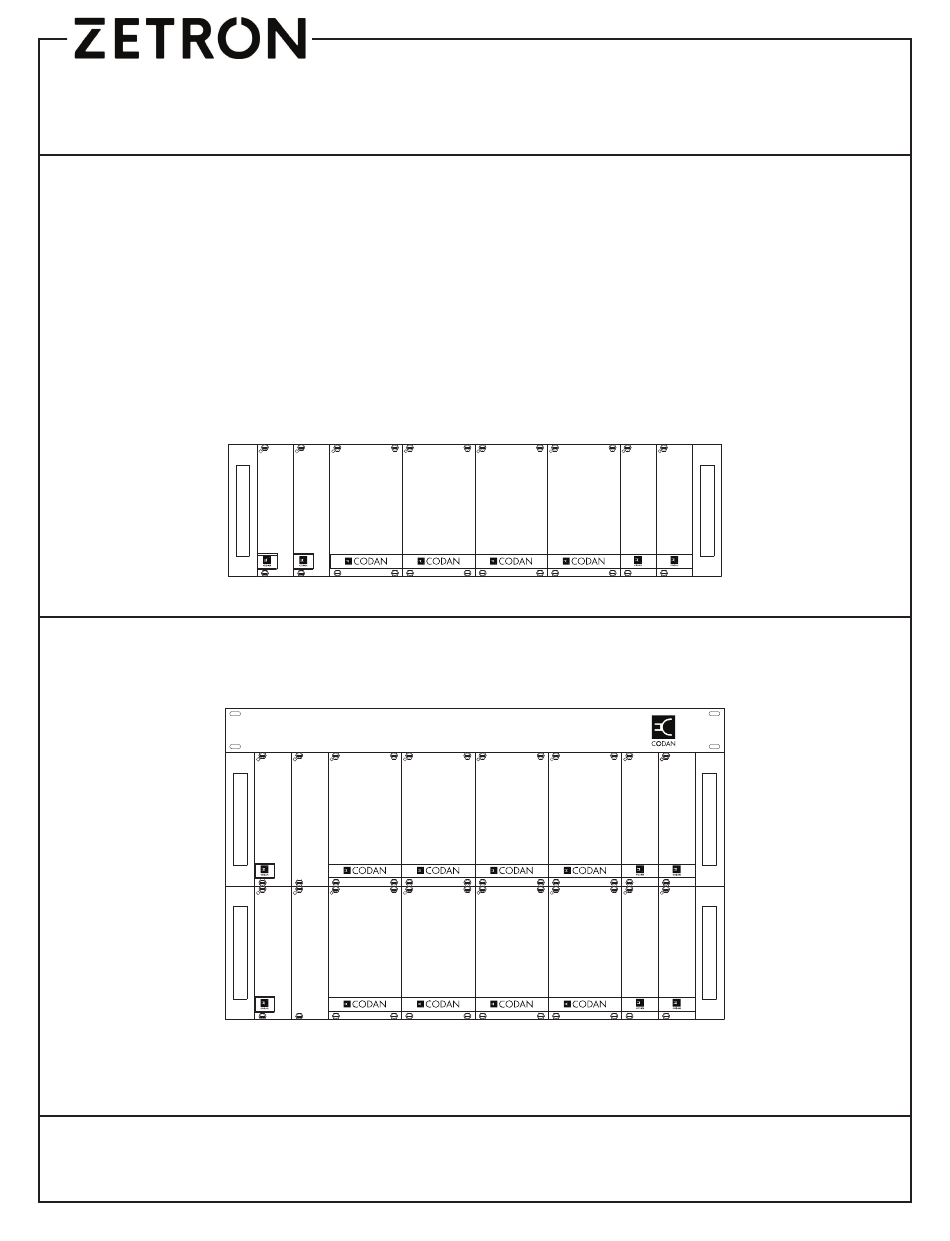

Figure 1: Standard Subrack
A quadruple system is shown in Figure 2 with A and B pairs in the fi rst rack, and C and D pairs in the second rack.
This system requires a multiple link controller.
Figure 2: Dual Subracks for Multiple Link Confi guration
TECHNICAL NOTE:
TN505, REV 3-0-0, © Jul 2024
CANADA/US
+1 250 382 8268
UTILITY
CONTROL
TRANSMITTER
RECEIVER
MODULE
MODULE
A
A
UTILITY
BLANK
TRANSMITTER
RECEIVER
MODULE
PANEL
A
A
UTILITY
BLANK
TRANSMITTER
RECEIVER
MODULE
PANEL
C
C
| TOLL FREE
+1 800 664 4066
TECHNICAL NOTES
MT-5 Radio Systems
TRANSMITTER
RECEIVER
ANTENNA
ANTENNA
RELAY
B
B
A
TRANSMITTER
RECEIVER
ANTENNA
ANTENNA
RELAY
B
B
A
TRANSMITTER
RECEIVER
ANTENNA
ANTENNA
RELAY
D
D
A
RELAY
B
RELAY
B
RELAY
B
ZETRON.COM
