ZETRON MAX Connection Manual

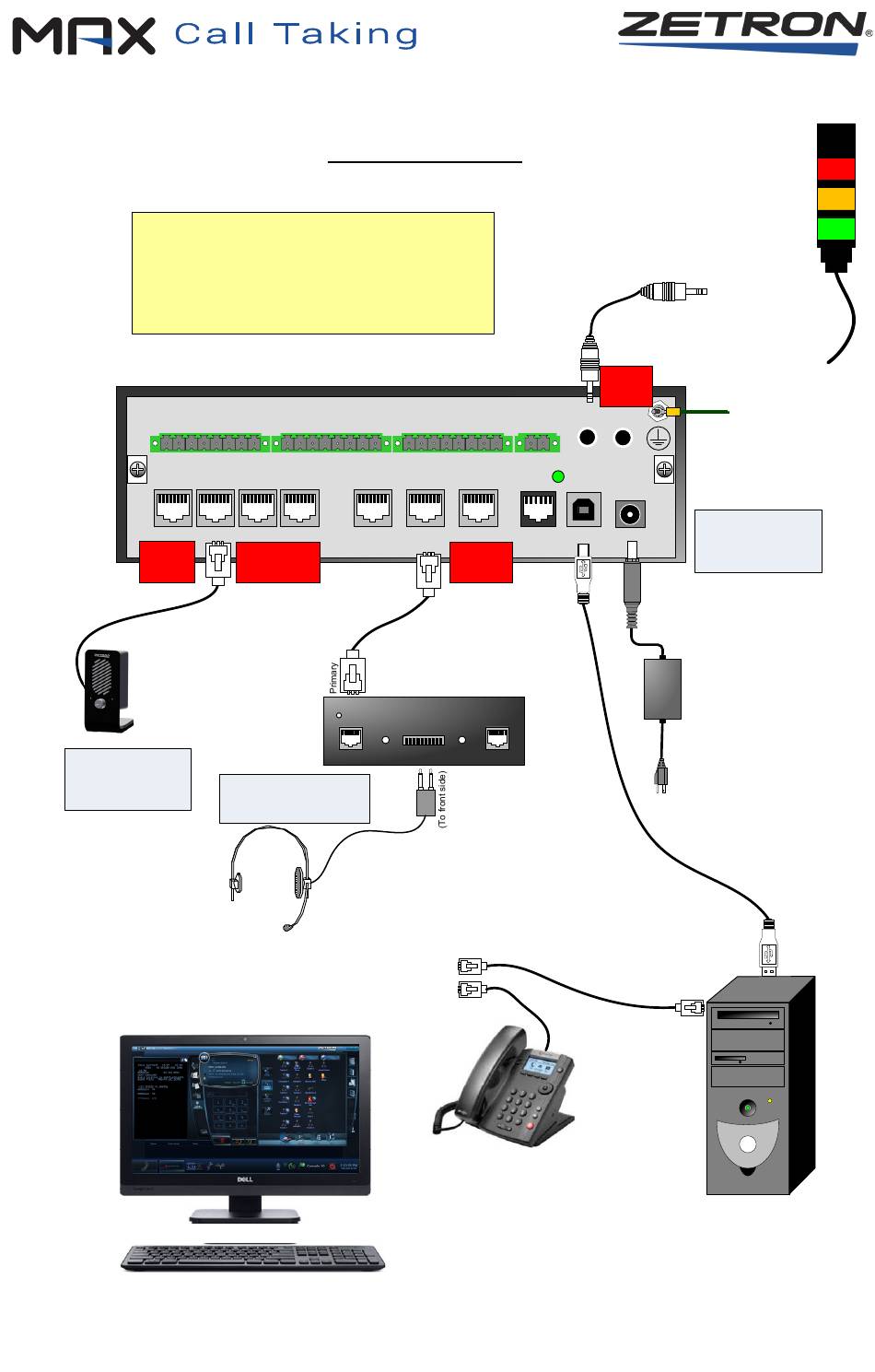

System Interconnect for Core Servers
Notes
Some accessories in this diagram are optional and not required for operation.
The Headset 2 port, Aux In, Speakers 1, 3, and 4 are not used with MAX Call Taking.
A shielded Ethernet patch cable can be used in place of cable 709-0170.
Relay Outputs Out1 and Out2 (normally open) are both active and usable during
MAX CT Operation.
Media Dock XS
901-9691 rear view
Relay Outputs
| Out1 | Out2 | Out3 | Out4 |
Cable
Strain
Relief
Speaker 1 Speaker 2 Speaker 3 Speaker 4
Speaker 1
Not
Supported
Cable P/N 709-0170-10
Zetron Desktop
Speaker V2
P/N 950-1405
For Additional Information
Amplified 5W Speaker V2
Product Manual
P/N 025-9585
23" LCD Monitor
Call-Taker Position Detail
Digital Outputs
| Out1 | Out2 | Out3 | Out4 |
Desk Mic
Speaker 3 and 4
Not
Supported
Cable P/N
709-0170
For Additional Information
Headset Jackbox Product Manual
P/N 025-9632
Headsets
950-0031, 4-Wire
950-0033, 4-Wire, Noise Cancelling
950-0030, 6-Wire
950-0453, 6-Wire, Wireless
950-0032, 6-Wire, Noise Cancelling w/PTT
950-0454, 6-Wire, Wireless, Noise Cancelling
To POE Ports on LAN Switch
P/N 802-2311
Digital Inputs
| In1 | In2 | In3 | In4/ |
Footswitch
Status
Headset 1 Headset 2 TRHI
Headset 2
Not
Supported
Telephone Radio
Headset Interface
950-9439
(not shown)
-or-
Headset Jackbox
950-1082 or 950-1077
(rear view shown)
To LAN Switch
SIP Phones
950-1350 Polycom VVX 201
950-1351 Polycom VVX 311
950-1352 Polycom VVX 411
950-1353 Polycom VVX 501
950-1354 Polycom IP 5000
950-1355 Polycom VVX Expansion
950-1357 Polycom Power (VVX 201)
950-1358 Polycom VVX D60 Wireless Handset
To Instant Recall
Recorder
P/N 709-0055
Aux In
Not
Supported
Ground
Stud
Aux In
Aux Out
Power Cable
Strain Relief
For Additional Information
USB DC Power
Media Dock XS Product
Manual
P/N 025-9658
Power
Supply
P/N 802-0692
Power Supply
Mains Cable
P/N (various)
USB P/N
709-0163
Connect to
"LAN" port on
SIP phone
Zetron Console
Workstation PC
Workstation Touchscreen Laptop
Workstation Laptop
Console
Position
Light Pole
P/N 950-1237
P/N 950-1438
To Media Dock
XS Relay
Outputs
P/N 950-1337
P/N 950-1437
P/N 950-1394
024-0357 K
Page 1 of 3
