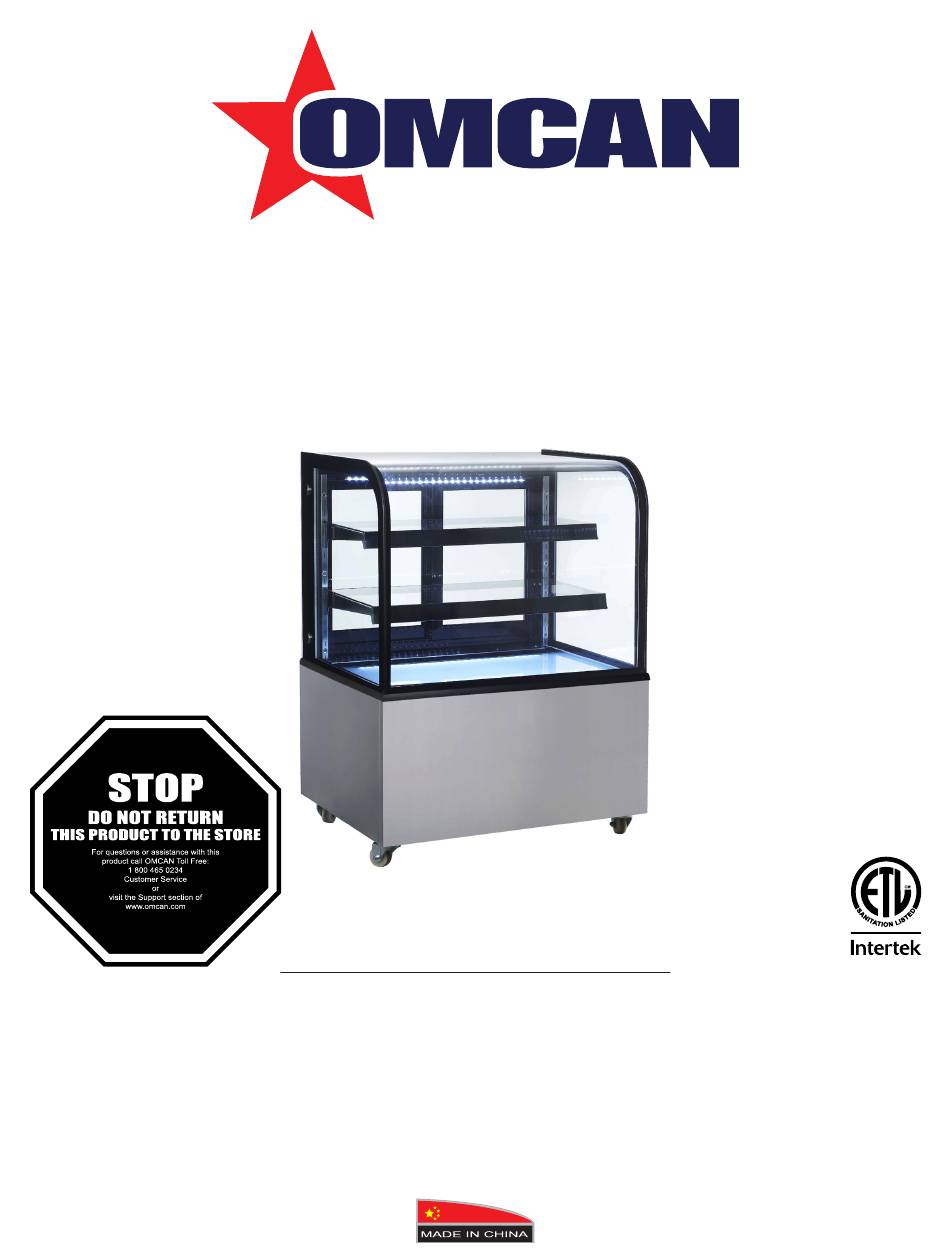

- Page 1 Dry Bakery Display Cases Models DS-CN-0270, 0370, 0470 Items 47102*, 47103*, 47104* Instruction Manual Revised - 09/13/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com *also ETL certified for Light and Transformer.
-
Page 2: Table Of Contents
Table of Contents Model DS-CN-0270 / Model DS-CN-0370 / Model DS-CN-0470 Section Page General Information --------------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------------- 4 - 5 Technical Specifications ------------------------------------------------------------------------------- 6 Installation ----------------------------------------------------------------------------------------------- 6 - 7 Operation ------------------------------------------------------------------------------------------------------ 7 Maintenance ------------------------------------------------------------------------------------------------- 7... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
-
Page 6: Technical Specifications
Technical Specifications Model DS-CN-0270 DS-CN-0370 DS-CN-0470 Item Number 47102 47103 47104 Electrical 110-120V / 60Hz / 1 Capacity 295 L / 10.41 cu.ft. 400 L / 14.12 cu.ft. 500 L / 17.65 cu.ft. 31.5” x 12.2” 43.3” x 12.2” 55.2” x 12.2”... -
Page 7: Operation
Installation • Avoid installation in a high humidity and / or dusty area. - High humidity can cause the unit to rust and may decrease efficiency. - Dust collected on the condenser coil may cause unit to malfunction. - Malfunction due to high ambient temperatures, humidity, or improperly maintained condenser coil will void the warranty. -
Page 8: Parts Breakdown
Parts Breakdown Model DS-CN-0270 47102... - Page 9 Parts Breakdown Model DS-CN-0270 47102 Item No. Description Position Item No. Description Position Item No. Description Position Rear Swivel Caster with Brake 71042 41612 Shelf Bracket-Top Left for 47102 71071 Bottom Door Frame for 47102 for 47102 Swivel Front Castor without Brake...
- Page 10 Parts Breakdown Model DS-CN-0370 47103...
- Page 11 Parts Breakdown Model DS-CN-0370 47103 Item No. Description Position Item No. Description Position Item No. Description Position Rear Swivel Caster with Brake 71042 41612 Shelf Bracket-Top Left for 47103 71114 Door Glide Wheel for 47103 for 47103 Swivel Front Castor without Brake 79763 64749 Metal Shelf Support for 47103...
- Page 12 Parts Breakdown Model DS-CN-0470 47104...
- Page 13 Parts Breakdown Model DS-CN-0470 47104 Item No. Description Position Item No. Description Position Item No. Description Position Rear Swivel Caster with Brake 71042 AS160 Bottom Glass Shelf for 47104 71114 Door Glide Wheel for 47104 for 47104 Swivel Front Castor without Brake 79763 71051 Right Top Shelf Holder for 47104...
-
Page 14: Electrical Schematics
Electrical Schematics Model DS-CN-0270 47102 Model DS-CN-0370 47103 Model DS-CN-0470 47104... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 à plus de 6500 produits provenant du monde entier. Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir a nuestro compromiso de fortalecer y desarrollar nuevas relaciones...
