2-Wire Hotel Solution

User Manual

Version: 1.0 | Date: 2024.06.29

Table of Contents

Need help?

Do you have a question about the PN1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fanvil PN1

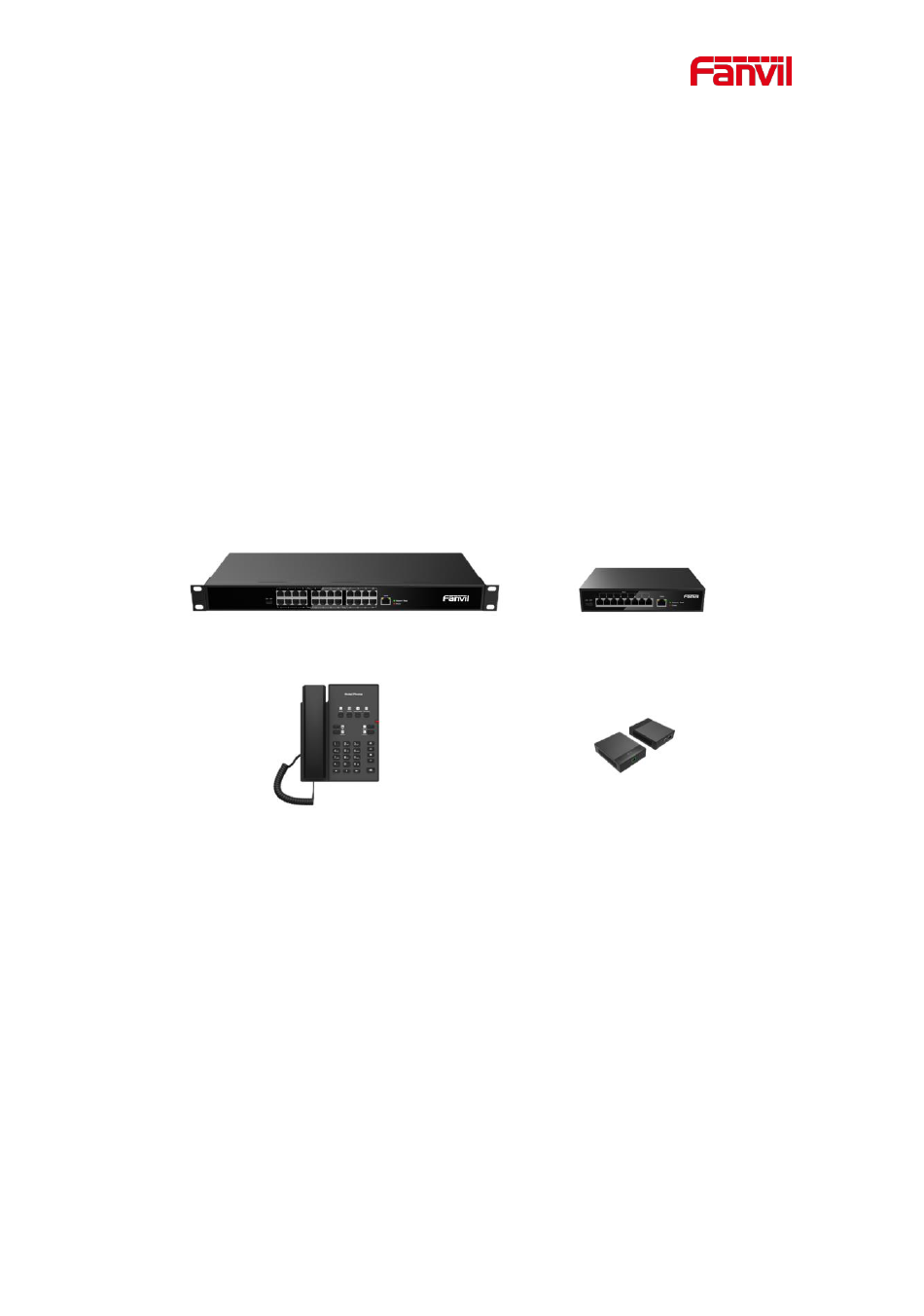

Page 1 2-Wire Hotel Solution User Manual Version: 1.0 | Date: 2024.06.29...
Page 2: Table Of Contents
3.2.3 Connect To Other Standard RJ45 Interface Device ........11 4 User Guide ..........................13 4.1 Button and Interface Instructions ................13 4.1.1 PN1 Button And Interface Instructions ............13 4.1.2 PN8/PN24 Button and Interface Description ..........14 4.1.3 H1-2 Wire Button And Interface Instructions ..........15 5 2-Wire Hotel Phone ........................
Page 3 5.4 Line Settings......................... 17 6 Network Topology Diagram ..................... 19 7 2-Wire Transmission Distance ....................21 8 Equipment maintenance ......................22 8.1 Network Grouping Key Configuration ............... 22 8.1.1 Get Network Grouping Configuration Tool ............22 8.1.2 Network Grouping Key Configuration .............. 23 8.1.3 Clear Network Grouping Key ................
Page 4: Safety Instruction
Safety Instruction 1.1 Safety Instruction Please read the following safety notices before installing or using this unit. They are crucial for the safe and reliable operation of the device. ⚫ Please use the product-specified power adapter. If you need to use a power adapter provided by another manufacturer due to special circumstances, please confirm that the voltage and current of the provided adapter meet the specifications of this product, and it is recommended to use a product that has passed safety certification,...
Page 5: Product Overview
The 2-Wire devices PN1, PN8, and PN24 are efficient, flexible, and easy-to-install network devices. They provide excellent connectivity and communication, utilizing existing wiring (PSTN lines, 2-wire intercom, analog phone lines) for seamless data transfer and integration.
Page 6: Specification Parameter
2.2 Specification Parameter Switch Specifications 2.2.1 Model PN24 Network 1 RJ45 1 RJ45 1 RJ45 Interface Network 10/100Mbps 10/100Mbps 10/100Mbps Speed 2-Wire 1 group of 8*RJ11 interface 24*RJ11 interface Interface terminal blocks Power 54V 1.5A 54V 1.5A 54V 3A Supply Operating -20℃~50℃...
Page 7: Phone Specifications
Phone Specifications 2.2.2 Model H1-2 Wire SIP Line Line Key High-definition Support G.722, Opus voice coding Voice Operating 0℃- 45℃ Temperature Size (LWH) 169x184x124mm Power Supply 2-Wire Power over Ethernet Method 12V DC Power Supply Installation Desktop/Wall-mounted Method...
Page 8: Installation Instruction
Installation Instruction 3.1 Device Inventory PN1 Device Inventory 3.1.1 PN1*2 Power Adapter Quick Installation Guide Terminal block *2 PN8 Device Inventor 3.1.2 Screw *2 Expansion Plug *2 Quick Installation Guide Power Cord...
Page 9: Pn24 Device Inventory
PN24 Device Inventory 3.1.3 Screw *8 PN24 Mounting Ear *2 Power Cord Quick Installation Guide H1-2 Wire Device Inventor 3.1.4 2-Wire Cord Handset Handset Hotel Phone Cord Wall Stand (Buy separately) Power Adapter (Buy separately) Stand 3.2 Network Installation Installation PN8/PN24 3.2.1 1.
Page 10: Connect H1-2 Wire
2. Turn on the power switch Switch from OFF to ON, and the power indicator light will turn on, indicating that the device can started normally. Connect H1-2 Wire 3.2.2 Take out the 2-Wire cord from the H1-2 Wire package and use it to connect the switch and the phone.
Page 11: Connect To Other Standard Rj45 Interface Device
3.2.3 Method 1: 1. Connect the PN8/PN24 according to the switch installation method described above. 2. Use the 2-Wire cord to connect PN8/PN24 and PN1, and then connect them to the devices via Ethernet cables. Method 2: 1，Insert the circular end of the power cord as shown in the picture, and then plug the other end into the power strip.
Page 12 Note: ⚫ The 2-Wire connection between two PN1 devices needs to distinguish positive and negative poles.
Page 13: User Guide
Connect the external power supply, 54V 1.5A RJ45 interface, used to connect to the ③ Network Port upper-level switch to access the network Use the connector to connect to another PN1 ④ 2-Wire Port via 2-Wire ⚫ When there is network data exchange...
Page 14: Pn8/Pn24 Button And Interface Description
PN8/PN24 Button and Interface Description 4.1.2 Number Name Description Choose between two operating modes: power ① Power and Network Switch and network supplied / power not supplied. (Default setting is power and network supplied.) ② 2-Wire Port RJ11 Interface, Connect to 2-Wire Phone RJ45 Interface, Used to Connect to Upper-level ③...
Page 15: H1-2 Wire Button And Interface Instructions
Press and hold for 10 seconds to restore the ⑤ Reset Button device to factory settings. ⑥ Master Switch Used to turn on/off the main power of the switch ⑦ Power Port Connect the power cord H1-2 Wire Button And Interface Instructions 4.1.3 Number Name...
Page 16: 2-Wire Hotel Phone
5.3 Web Management Device IP Address 5.3.1 Retrieve Device IP through Scanning Tool: Connect the computer and H1-2 Wire to the same local network, and install Device Manager on the PC. (Device Manager download link: https://www.fanvil.com/service/doc/soft/tools/tools/ipscanner/index.html)
Page 17: Web Interface
Open the IP scanning tool (Device Manager), click on the scan button to obtain the IP address of the H1-2 Wire within the local network. Retrieve the device IP by pressing the button: The user can retrieve the device IP address by long-pressing the "#" key, which will announce the IP.
Page 18 Parameters: Parameters Description Line Status On this page, the current status of the line is displayed. To obtain the latest online status, users must manually refresh the page. Enable The status of this line is 'Enabled' Username Enter the username of the service account. Authentication Enter the authentication name of the service account.
Page 19: Network Topology Diagram
Network Topology Diagram Small to medium-sized hotels (55 Phones) Note: ⚫ If it is a large-scale enterprise office (≥55 Phones) network, or if networking is done using cables of 100 cores and above, PLC tools are required for network grouping settings. Please refer to the Network Grouping Key Configuration details.
Page 20 ⚫ Strong electricity and weak electricity cannot be wired in the same route, they need to be wired separately and the distance should be more than 0.5 meter. 2. PN1 Network Topology Diagram...
Page 21: 2-Wire Transmission Distance
PN24 ~ H1-2 PN8 ~ PN24~PN PN1~PN1 Wire Wire Type Cat 5e 300m 300m 300m 300m 300m 300m 300m 300m 300m 300m 2*0.5 300m 300m 300m 300m 300m 2*0.5 The 2-Wire connection distance for PN1 is 1600 meters (only supply network)
Page 22: Equipment Maintenance
Equipment maintenance 8.1 Network Grouping Key Configuration Get Network Grouping Configuration Tool 8.1.1 Contact technical support personnel in your region to obtain the network grouping configuration tool (Fanvil PLC Tool) installation files and proceed with the installation.
Page 23: Network Grouping Key Configuration
Network Grouping Key Configuration 8.1.2 Note: ⚫ When performing network grouping settings, power on individual switch and the phones under that switch separately. After completing the network grouping settings, power on another group and perform network grouping settings. Otherwise, network interference may occur, resulting in phones unable to access the network.
Page 24 3. Click [All Device], enter the desired network grouping key in the input box (password format: limited to within 64 characters, including uppercase letters, lowercase letters, numbers, and special characters (/"?,"}-+!@(#￥%.&) ), and click [Set] to complete the network grouping settings for the gateway and all phones connected to it. 4.
Page 25: Clear Network Grouping Key
Clear Network Grouping Key 8.1.3 1. Choose the corresponding network card (default selection is the first one), and select the gateway device you want to configure. 2. Click on [Network Password] > [All Device]>[Get] to obtain the relevant information of the switch and all phones connected to it.
Page 26: Power Configuration
8.2 Power Configuration If you need to change the power configuration, please contact the technical support personnel in your area to obtain the appropriate power configuration file. The steps for importing the configuration file are as follows: The steps for importing the configuration file are as follows: Click the [Config Upgrade] interface to perform configuration upgrade operations.
Page 27 After the upgrade is complete, you can click [Get] to obtain the version information of all devices for verification.
Page 28: Trouble Shooting
Trouble Shooting 9.1 Get Device System Information Get Phone Information 9.1.1 Users can obtain device information through the device webpage [System] >> [Information] or the device [Menu] >>[Status] options. The following information will be provided: 1. Device information (model, MAC address, software and hardware versions, etc.) 2.
Page 29: Reboot Switch
Reboot the device via the gateway: Use the power master switch of the switch device to restart both the switch and the phones. Reboot the device via the PLC Tool: Open the PLC Tool, select the phone device you want to restart, and click [Reset]. Reboot Switch 9.2.2 Use the power master switch of the switch device to restart the switch.
Page 30 Fanvil only guarantee the performance of our own equipment. Q2: Can Fanvil's 2-Wire PoE Switch be directly connected to an analog phone? A: Not supported. Q3: Can it be compatible with mainstream PBX manufacturers, such as 3CX, Yeastar, and so on?
