PRODUCT INTRODUCTION
It is a wireless video conferencing solution designed for small&medium meeting rooms. It mainly consists of a wireless screen-sharing
speakerphone MS10, a receiver hub RC10 and a 4K UHD camera CM70, designed to simplify your meetings. With full BYOD support, it allows
you to e ortlessly connect your laptop to the speakerphone using a single cable.
Enjoy 4K wireless screen-sharing, access to conference camera streaming in 1080p, and the convenience of plug-and-play functionality
without the need for software or drivers.
It streamlines your conferencing experience, eliminates cable clutter, and ensures secure and e cient collaboration.
IN THE BOX
USB Camera
Speakerphone
USB-C to HDMI &
HDMI Cable
USB-A/C Adapter

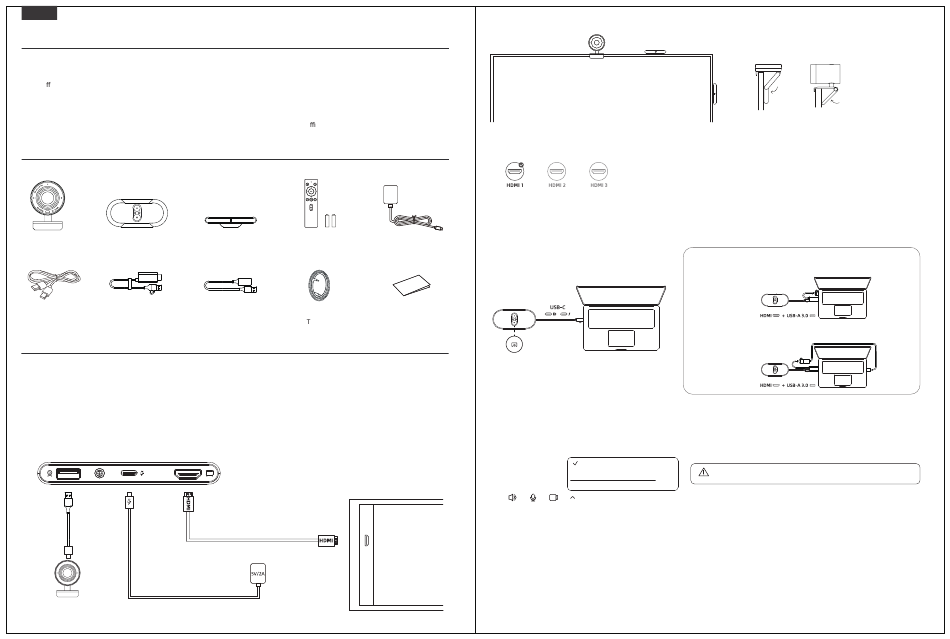

HOW TO START
(1) Plug the 5V/2A power supply into the receiver and connect it to the HDMI cable of the display.
(2) To connect the USB camera, plug the camera's USB cable into the USB-A port on the receiver.
(3) Mount the receiver and USB camera on the display using the built-in mounting clip. Ensure that the receiver is positioned
towards the front side for optimal wireless signal transmission. The optimal wireless transmission range is within 5 meters.
Camera In
Power
HDMI Out
Power Cable 5V/2A
USB Camera
Receiver
Remote Control
Battery x2
USB
USB Cable
Extension Cable
( ype C-A)
Installation Guide
The back of TV
HDMI Cable
HDMI IN
01
(4) Switch the display output source to the connected HDMI port.
(5) Connect the speakerphone to a full-featured Type-C port on your laptop. Wait until the screen-sharing button
light turns green, then press the button to start sharing your screen. Press the button again to end screen-sharing.
Power Adapter
Quick
Press to start/end
screen-sharing
(6) To use the speakerphone and access the camera wirelessly, in your video conference software, select "CA400-CM70
Wireless Camera "as your microphone, speaker, and camera.
The front of TV
* In the case where the laptop's type C port does not meet the full feature
requirement, use the USB-C to HDMI & USB-A/C adapter instead.
USB-C to HDMI &
USB-A/C Adapter
* Use the USB extension cable if the laptop's USB 3.0 port is not nearby the
HDMI port.
USB-C to HDMI &
USB-A/C Adapter
+
USB
Extension cable
CA400-CM70 Wireless Camera
"CA400-CM70 Wireless Camera" option is only available in the camera
Integrated Camera
device list when a camera is connected to the receiver.
Video Setting...
02
