Chapter 3: Equipment

Computer Console

The operator console is comprised of:
media tower
scan monitor
display monitor
Scan Control Interface Module (SCIM) and keyboard
mouse
Bright Box
Computer

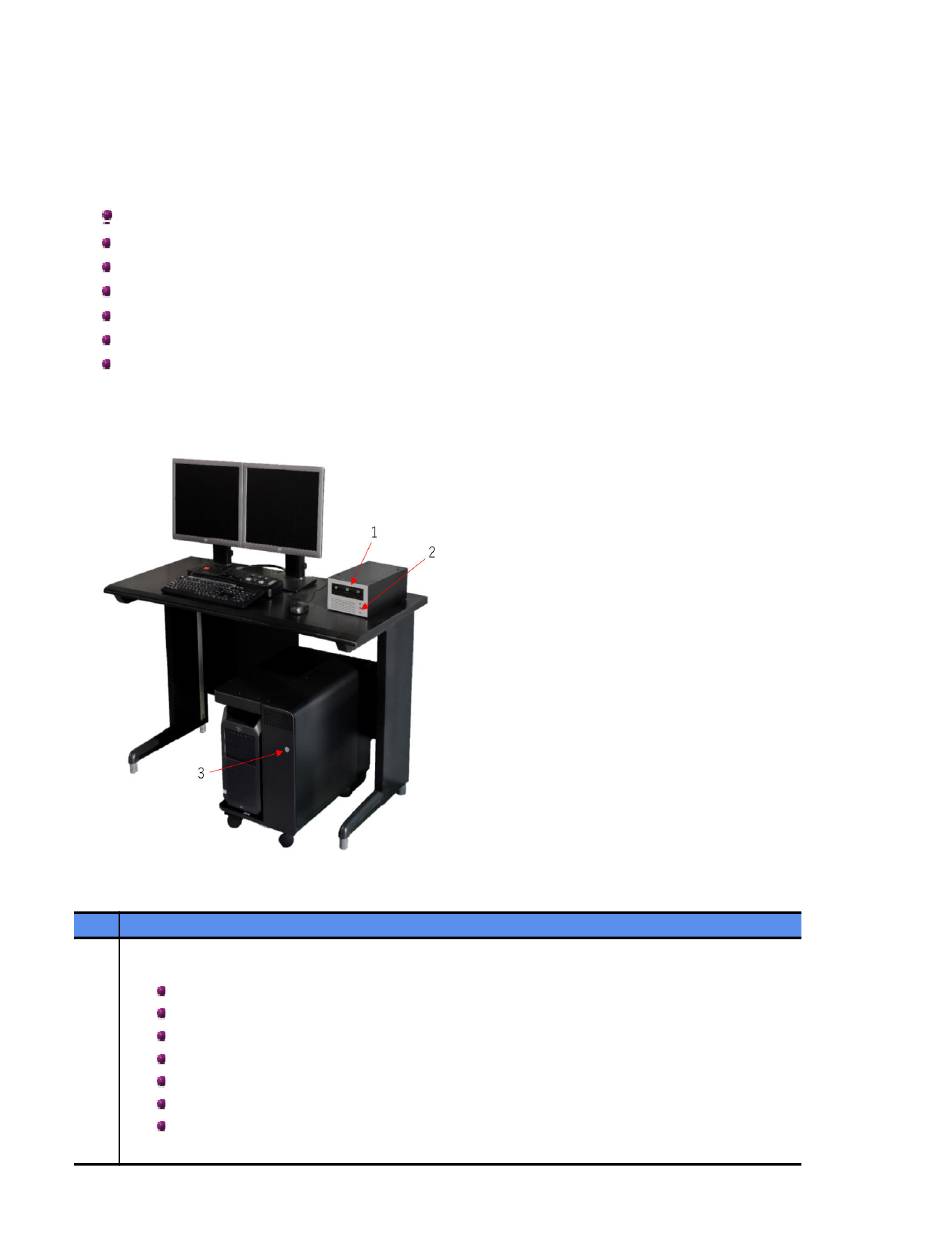

Figure 3-1: Operator console
Table 3-1: Operator console components
No.
Digital Video Disk Read/Write (DVD-R/W)drive
The CD/DVD/USB option uses the DVD-R drive to write to or restore from CD-R or DVD-R.
The Data Export option can save information to CD-R.
Use to save ECG traces.
1
Use to export protocols.
Use to save scan files, protocols and service files to DVD-RAM media.
Use to access the electronic copies of the operator documentation.
The CD/DVD/USB recognizes Hard Disk Drive(USB drive) or USB key(Flash memory) with
VFAT format. It does not recognize any hardware with extension 3 format.
