Source SEM-TWSP P04 Installation Instructions

DISASSEMBLY INSTRUCTIONS
Product end of life instruction.
This Lighting product is in the scope of EU 2019/2020 directive on Waste Electrical and Electronic Equipment
(WEEE). This product must be disposed of, according to the legislation. This document is intended for use by
end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life
treatment for the components and materials of the product.
Please follow pictured diagram on the back of this manual showing how to dismantle the product into different
components which should be disposed of correctly. These components consist of plastic, metal and electronic
materials.
It is the responsibility of the end user to dispose of this product correctly. Contact www.weeeireland.ie or your
local council for further information.

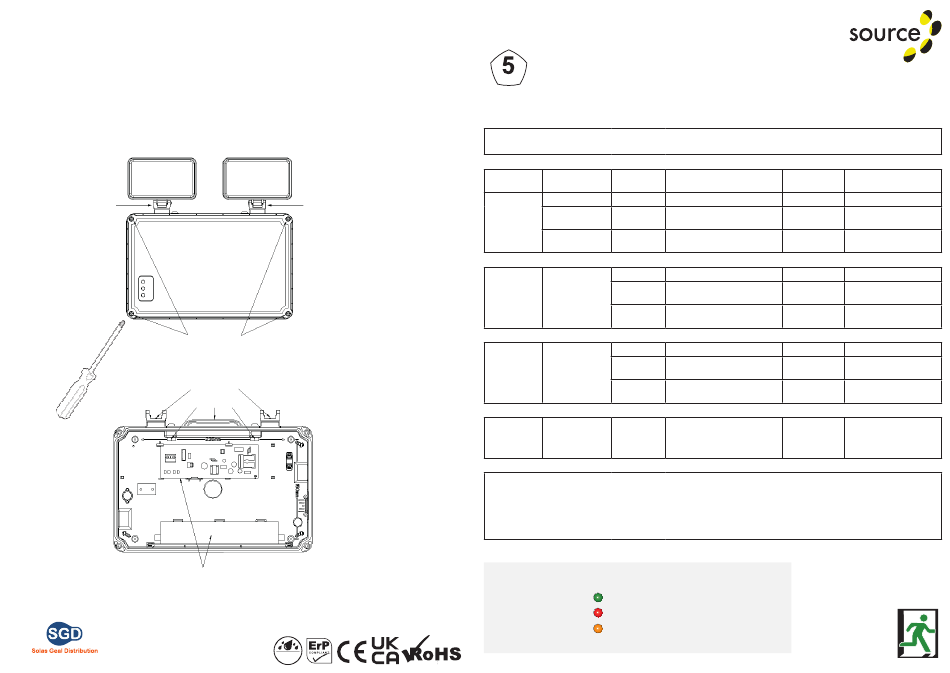

Loosen Screws with
Screwdriver and
dismantle Cover
Dismantle Driver & Battery
Unit 7/8 Ashbourne Business Centre, Ballybin Road, Ashbourne, Co. Meath, Ireland, A84 YP58,
For more information contact: Phone:
00353 1 835 7447
Unit 32 Junction One Business Park, Valley Road, Birkenhead, Merseyside, UK, CH41 7ED,
UK Ph:
0330 551 7000
Website: www.sgd.ie
Loose screw, dismantle cover
loose screw to dismantle two
heads
Dismantle driver and battery
IP65
Self Test Instructions
EMERGENCY TWIN SPOT
years
Quality
Assurance
Self Test Method: Please ensure this product is tested monthly and half yearly.
The warranty is only valid if a Test Log is kept
MODE METHOD FOR
MODE
Mains ON No Action Needed
No Action Needed
No Action Needed
Monthly self Self Testing
test battery
discharge
(discharges
the battery for
10 seconds)
Half yearly self Self Testing
test battery
discharge
(discharges
the battery for
3 hours)
Mains Failure No action needed
Luminaire enters
3 hour emergency
mode
Note:
• No AC power will cause luminaire to enter Emergency mode
• After a repair, please connect AC power and perform a test (for performance confirmation).
To do this, operate your emergency key switch.
• If the battery and LED board failure simultaneously, the red LED will flash.
• Any beep sound will stop after correct maintenance or repair.
• Manual testing will not affect the monthly and half yearly testing schedule
Self Test
LED Light Status Beep Sound
OFF
Green LED Constant
Beep every 45 seconds
Red LED (flashes every 1 second)
Beep every 45 seconds
Amber LED (flashes every 1 second)
No indicator
Mains Failure
COMPLIANT
Installation &
PRODUCT CODE: SEM-TWSP P04
IF LED INDICATOR STATUS BEEP SOUND
Battery Ok Green (Permanently On)
Battery Fault Red (Flashes every 1 second) Beep every 45
LED Fault* Amber (Flashes every 1 Beep every 45
second)*
Battery Ok All Indicators Off
Battery Fault Red (Flashes every 1 second) Beep every 45
LED Fault Amber (Flashes every 1 Second) Beep every 45
Battery Ok All Indicators Off
Battery Fault Red (Flashes every 1 second) Beep every 45
LED Fault Amber (Flashes every 1 Second) Beep every 45
Battery Ok All Indicators Off
Status
Battery Charging, No faults, Mains On
Battery Fault
LED Fault
Check Power Supply
RESULT
OFF Green LED
Red LED, Loud Beep
Seconds* sound*
Amber LED, Loud Beep
Seconds* Sound
OFF Green LED
Red LED, Loud Beep
seconds sound
Amber LED, Loud Beep
seconds Sound
OFF Green LED
Red LED, Loud Beep
seconds sound
Amber LED, Loud Beep
seconds Sound
OFF
