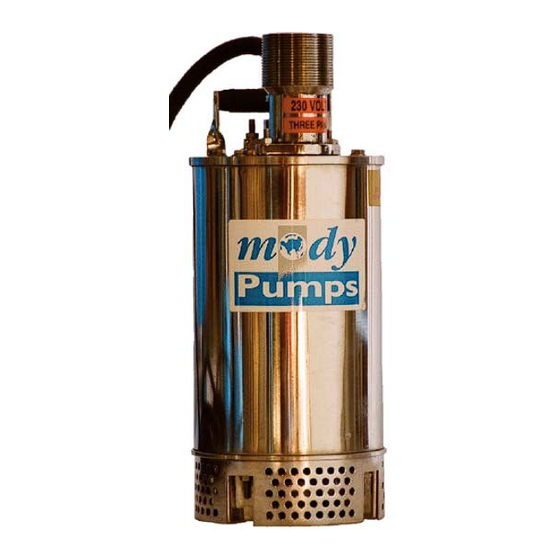

MODEL: M100T/316SS SERIES
OPERATING INSTRUCTIONS, INSTALLATION & MAINTENANCE
MANUAL INCLUDING SPARE PARTS LIST
Illinois Location:
(847) 841-7867
860 Church Rd Elgin, IL 60123
Minnesota Location:
(651) 758-7867
330 Mill Bay South Suite 1511
Afton, MN 55001
PumpSupplyInc.com
IL - (847) 841-7867
Distributed by Pump Supply Inc
PumpSupplyInc.com
MN - (651) 758-7867
MN - (651) 758-7867
Advertisement
Table of Contents
Related Manuals for Mody Pumps M100T/316SS Series
Summary of Contents for Mody Pumps M100T/316SS Series
- Page 1 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 MODEL: M100T/316SS SERIES OPERATING INSTRUCTIONS, INSTALLATION & MAINTENANCE MANUAL INCLUDING SPARE PARTS LIST Illinois Location: (847) 841-7867 860 Church Rd Elgin, IL 60123 Minnesota Location: (651) 758-7867...
- Page 2 Never operate a pump with a plug-in type power cord without a ground fault circuit interrupter, adequate overload and short circuit protection. IMPORTANT !!! MODY Pumps Inc. is not responsible for losses, injury, or death resulting from a failure to observe these safety precautions, misuse or abuse of pumps or equipment.
- Page 3 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 WARNING !!! Mody Single Phase Pumps Must be Run Using a Capacitor Pump Panel. Wiring Schematic is at the end of this manual. Run Capacitor (Rc): 35mfd, 370-440v. MARS # 12243 Start Capacitor (Sc): 215-259mfd, 220-250v.
-
Page 4: Technical Data
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 TECHNICAL DATA MOTOR 2-POLE SQUIRREL-CAGE AC MOTOR CLASS ‘H’ INSULATION (180C°) FOR 3-PHASE OR SINGLE PHASE ELECTRIC SUPPLY. MOTOR RATED 1.3 HP (M100M/M100S/M) AND 2 HP (M120M/M126M) ROTATING AT 3450 RPM (APPROX.) AT 60 HZ SUPPLY AND 2850 RPM AT 50HZ. -
Page 5: Installation And Maintenance
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 INSTALLATION AND MAINTENANCE. • CHECK THAT THE SITE VOLTAGE AND POWER SUPPLY CORRESPOND TO THAT OF THE PUMP. • CHECK THAT THE FUSES ARE INTACT. • USE SHORTEST POSSIBLE HOSE OF THE CORRECT SIZE. AVOID CREASES, SHARP BENDS, AND CONTRACTIONS. -
Page 6: Overload Protection
IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 OVERLOAD PROTECTION IT IS ESSENTIAL THAT A STARTER BE USED WHEN OPERATING THE PUMP. CHOOSE THE CORRECT RATING OF STARTER AS PER THE NAME PLATE OF THE PUMP. THE OVERLOAD SETTING ON THE STARTER RELAY SHOULD BE SET TO THE FULL LOAD CURRENT OF THE PUMP AS INDICATED ON THE NAME PLATE. - Page 7 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 DISMANTLING (REFER DRG. DW/041/00-- SHEET 1 & 2). PLEASE NOTE THE DIFFERENT DRAWING NUMBERS FOR VARIOUS MODELS IN THE SERIES. • BACK OFF THE TWO DISCHARGE OUTLET NUTS (18,50) AND LIFT OFF THE OUTLET (23). PUT ASIDE THE OUTLET GASKET (36).
- Page 8 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 RE-ASSEMBLY(REFER DRG. NO. DW/041/00-- SHEET 1 & 2). • THE REVERSE OF LAST TWO STEPS (OF THE DIS-ASSEMBLY PROCEDURE) CAN BE FOLLOWED FOR ASSEMBLY OF THE TOP BRACKET AND THE GLAND ASSEMBLY. REMEMBER TO FIT "O"...
- Page 9 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 RECOMMENDED SPARES FOR TWO YEARS OPERATION SR. NO. DESCRIPTION PART NO. RECOMMENDED QTY. MECHANICAL SEAL 535-033-00 2 NOS. "O" RING SET 375-100-74 2 SETS. CABLE GROMMET 260-034-66 2 NOS.
- Page 10 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 IL - (847) 841-7867 PumpSupplyInc.com MN - (651) 758-7867...
- Page 11 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 IL - (847) 841-7867 PumpSupplyInc.com MN - (651) 758-7867...
- Page 12 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 IL - (847) 841-7867 PumpSupplyInc.com MN - (651) 758-7867...
- Page 13 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 IL - (847) 841-7867 PumpSupplyInc.com MN - (651) 758-7867...
- Page 14 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 PUMP MODELS M100T/100ST/106T/106ST/120T/126T Ref : Drawing no. DW/041/00 D.NO. PART NO. DESCRIPTION 270-017-24 HANDLE 045-007-24 HEX. HD. BOLT 700-002-24 WASHER 035-005-24 TOP BRACKET 380-084-74 "O" RING 380-023-74 "O"...
- Page 15 IL - (847) 841-7867 Distributed by Pump Supply Inc MN - (651) 758-7867 PUMP MODELS M100T/100ST/106T/106ST/120T/126T Ref : Drawing no. DW/041/00 D.NO. PART NO. DESCRIPTION 405-036-24 OUTLET 2" NPT SS 405-009-24 OUTLET 2" HOSE SS 405-033-24 OUTLET 2" BSPT SS 065-014-79 CABLE 100/106/120/126 50'/20m...
-
Page 16: Limited Warranty
No rights extended under this warranty shall be assigned to any person, whether by operation or otherwise, without our prior written approval. Mody Pumps Inc. 2166 Zeus Court, Bakersfield, CA 93308 Tel.: (661) 392-7600 Fax: (661) 392-7601 IL - (847) 841-7867 PumpSupplyInc.com...
