RCP 401 D • Setup Guide

Front Panel Lockout (Executive Mode)

When front panel lockout is on, all the buttons on the RCP 401 D are disabled. To toggle between enabling or disabling front panel lockout,
press and hold the Pause and Mark buttons simultaneously for 3 seconds.
As front panel lockout is enabled, all buttons and the red activity LED (see
lockout is disabled, all the buttons and the green activity LED (see
lockout is on, all buttons blink three times.
RCP 401 D Rear Panel Features
Cable anchor — Use a zip tie to secure the USB cable to this
A
anchor.
USB connector — Connect the RCP 401 D to the rear panel
B
of the the SMP using the provided 6 foot (1.8 meter) USB-C to
USB-C cable. This connection provides power and control to the
RCP. To increase the distance up to 300 feet (100 m), use an
Extron UCS 900 Series extender (see www.extron.com).
To power the unit by connecting it to the SMP, use the provided
cable to connect to the rear panel of the SMP.
Power inlet — Optionally, the RCP 401 D can be powered with a
C
12 VDC, 1.0 A power supply.
To power the unit with a power supply, connect the provided
power supply to this input. Ensure that the polarity of the wires is
correct (figure 3,
1
NOTE: We recommend powering up the RCP using the USB-C
connection.
ATTENTION:
•
Always use a power supply provided by or specified by Extron. Use of an unauthorized power supply voids all regulatory
compliance certification and may cause damage to the supply and the end product.
•
Utilisez toujours une source d'alimentation fournie ou recommandée par Extron. L'utilisation d'une source d'alimentation non
autorisée annule toute certification de conformité réglementaire, et peut endommager la source d'alimentation et l'unité.
•
If not provided with a power supply, this product is intended to be supplied by a UL Listed power source marked "Class 2" or
"LPS" and rated output 12 VDC, minimum 1.0 A.
•
Si le produit n'est pas fourni avec une source d'alimentation, il doit être alimenté par une source d'alimentation certifiée UL de
classe 2 ou LPS, avec une tension nominale 12 Vcc, 1,0 A minimum.
•
Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities.
•
Sauf mention contraire, les adaptateurs CA/CC ne conviennent pas à une utilisation dans les espaces d'aération ou dans les
cavités murales.
•
The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70,
article 725 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently fixed to building
structure or similar structure.
•
Cette installation doit toujours être conforme aux dispositions applicables du Code américain de l'électricité (National
Electrical Code) ANSI/NFPA 70, article 725, et du Code canadien de l'électricité, partie 1, section 16. La source d'alimentation
ne devra pas être fixée de façon permanente à la structure de bâtiment ou à d'autres structures similaires.
2
) and the wires are stripped correctly (
igure 1,
on page 1) blink three times. As front panel
A
igure 1, ) blink three times. If a button is pressed while front panel
A
C

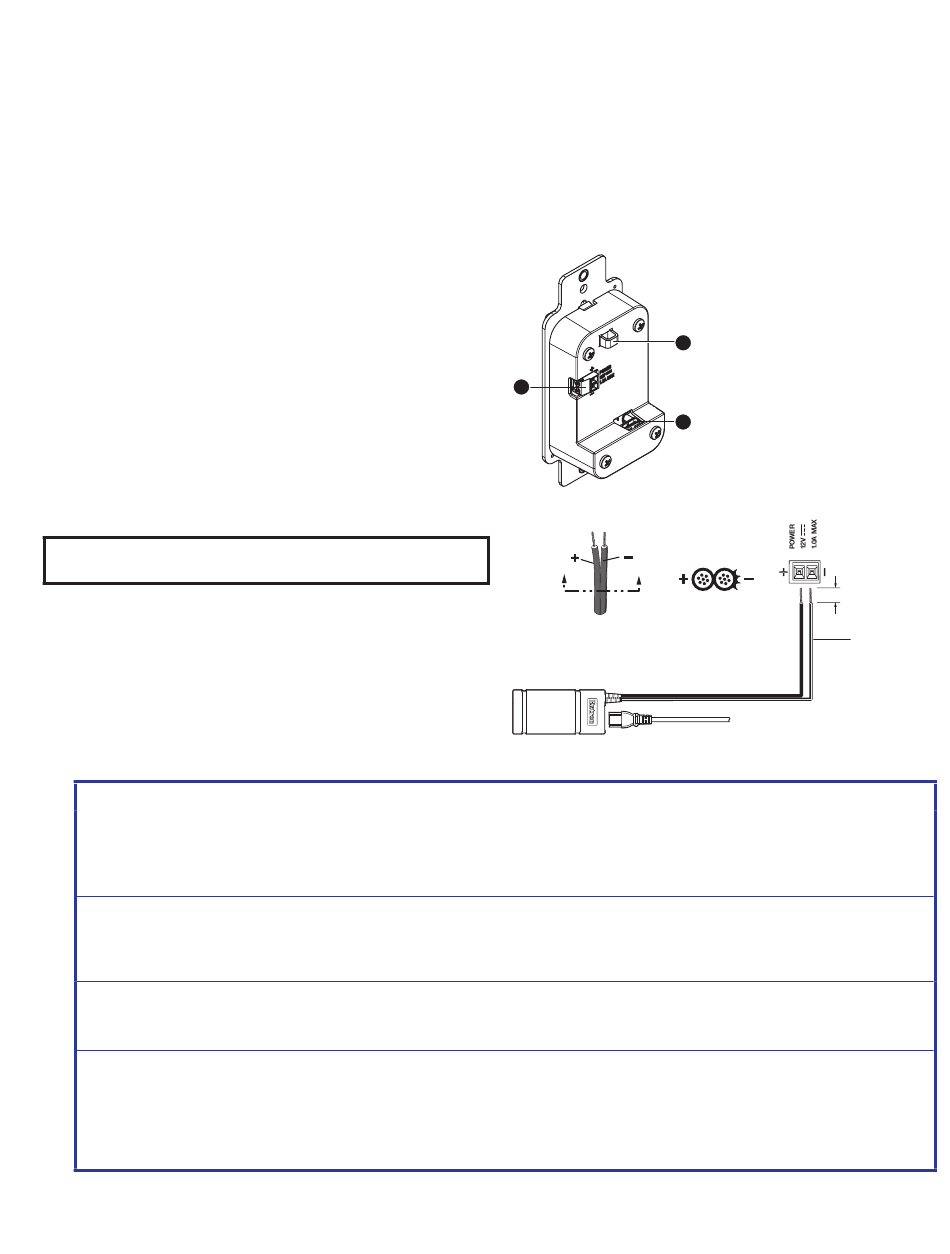

Figure 2. RCP 401 D Rear Panel
).
2
Smooth Ridges
1 1 1
A
Power Supply
Output Cord
Figure 3. Connecting power to the RCP 401 D
A
B
A
SECTION A–A
Smooth
+12 VDC input
– Return
Ground
all Devices
Power Receptacle
3/16" 2 2 2
(5 mm) Max.
DC Power Cord
Ridged
