Summary of Contents for Dormakaba Alvarado MSTT-MC

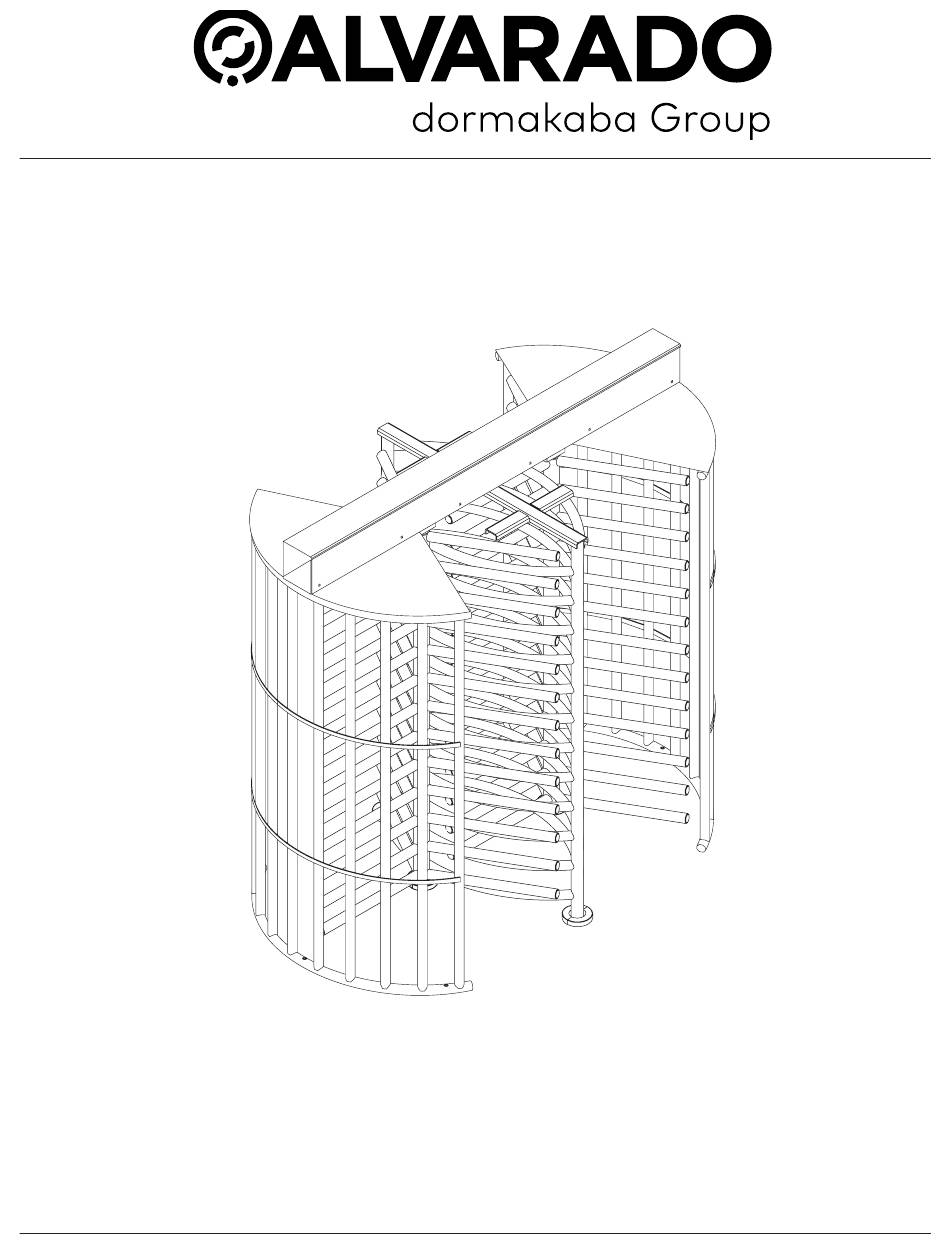

- Page 1 Inline Stacked TANDEM MAXIMUM SECURITY TURNSTILE MINIMAL CONTACT MSTT-MC Installation and Operation Instructions Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Toll Free: (800) 423-4143 Fax: (909) 628-1403 information@alvaradomfg.com www.alvaradomfg.com PUD4561R1-1...
-
Page 2: Table Of Contents
MSTT-MC Installation Instructions Contents Contents..................................2 Safety Precautions................................3 Safety Icons..................................3 Installation Tools................................4 Parts List..................................5 Overview of Installation Requirements ........................... 6 Slab Requirements..............................6 Space Requirements..............................6 Confirming Orientation.............................. 6 Installation Instructions. -
Page 3: Safety Precautions
MSTT-MC Installation Instructions Safety Precautions The Full Height Security Turnstile may present a risk to persons and property if it is not installed and/or operated correctly. This manual must be read in its entirety and all safety and operations information must be followed. Note the following precautions: •... -
Page 4: Installation Tools
MSTT-MC Installation Instructions Installation Tools The following tools may be required during the installation, dependent on the specific product installed. These tools are not provided. Wire Ladder Chalk Line Drill Hammer Tape Strippers Drill Measure Socket Phillips Tip ⅛” Allen Torque 9/16”... -
Page 5: Parts List
MSTT-MC Installation Instructions Parts List This product is shipped with all required installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Alvarado. -
Page 6: Overview Of Installation Requirements
MSTT-MC Installation Instructions Overview of Installation Requirements Use only skilled technicians for the site preperation and installation of the turnstile using Alvarado's instructions. Slab Requirements Install the turnstile on a 8' x 6' level concrete slab. The slab must be a minimum of 4" thickness. The turnstile may only be installed on concrete. -
Page 7: Installation Instructions
MSTT-MC Installation Instructions Installation Instructions NOTE DIMENSIONS SHOWN ARE FOR THE MSTT. SEE APPENDIX B AND C FOR OTHER MODELS. Determine where the turnstile will be installed. Consider the overall footprint size of the unit when determining the installation location (Figure 1). Once the installation location has been determined, use a chalk line to mark the centerline of the turnstile. -
Page 8: Bottom Bearing
MSTT-MC Installation Instructions Bottom Bearing Place the bottom bearing plate over the turnstile and Roto intersecting lines. Mark the center location of all four anchor holes for the bottom bearing plate (Figure 2). Set aside the Fig. 2 Fig. 2 bottom bearing plate. -
Page 9: Yoke
MSTT-MC Installation Instructions Yoke NOTES Do not use a single Yoke as a template as Yoke dimensions may vary. Fig. 6 Fig. 6 DIMENSIONS SHOWN ARE FOR THE MSTT NOTE Yoke Center SEE APPENDIX B AND C FOR OTHER MODELS. Bottom Bearing Reconfirm the centerline location for the Yoke (Figure 6). -
Page 10: Roto
MSTT-MC Installation Instructions Roto Fig. 10 Fig. 10 12 Arms 13 Arms NOTE Tandem Standard Side Side For the MSTT and CLSTT models, the Roto with 13 arms must be installed on the right side and the Roto with 12 arms must installed on the left side, when viewed from the unsecured / entry side (Figure 10). -
Page 11: Top Channel
MSTT-MC Installation Instructions Top Channel A minimum of two people is required to Fig. 13 Fig. 13 complete the installation of the Top Allen Head Screw Channel. ⅛" Allen Wrench Remove the cover from the Top Channel using a ⅛" Allen wrench (Figure 13). Determine orientation before installing the Top Channel. - Page 12 MSTT-MC Installation Instructions Top Channel (Cont) Fig. 15 Fig. 15 The Top Channel mounting holes are located at each end of the Top Channel (Figure 15). A. Yoke - Insert four ½" x 2¾" hex head bolts, from the underside of the Top Channel, up through the mounting holes and secure with four ½"...
- Page 13 MSTT-MC Installation Instructions OV (Cont) Gently slide the OV between the two installed Rotos (Figure 17). NOTES Each Roto may need to be slightly rotated while installing the OV. See "Key Override" section if the Roto will not rotate. When sliding the OV into place, the Top Channel may need to be raised slightly. Align the two mounting holes on the OV with the two mounting holes on the Top Channel.
- Page 14 MSTT-MC Installation Instructions OV (Cont) Remove the mounting hardware that was installed in Step 3. Slide the OV forward, exposing the marked mounting locations. Fig. 18 Fig. 18 Using a ⅝" concrete drill bit, drill four anchor holes, 3" in depth, at the center of each marked location in ⅜"...
-
Page 15: Guard Plate
MSTT-MC Installation Instructions Guard Plate Slide the wide end of the Guard Plate, (notched Fig. 20 Fig. 20 end first) between the Top Channel and the top of the Yoke (Figure 20). Insert one ½" x 1" hex head bolt and ½" flat washer, from the underside of the Guard Plate, up through the Top Channel mounting hole and secure with one ½"... -
Page 16: Final Mechanical Installation Steps
MSTT-MC Installation Instructions Final Mechanical Installation Steps Be sure that the turnstile is level NOTE before performing the following step(s). The anchor bolts (22 total) and the Top Channel mounting bolts should be tightened to Fig. 23 Fig. 23 40 ft-lbs using a torque wrench and appropriate sockets. -
Page 17: Conduit Instructions
MSTT-MC Installation Instructions Conduit Instructions The installer can run power primary conduit to any of the locations shown in (Figure 25). Separate conduit can be run to each side of the Top Channel lid, or conduit can be run to one side of the Top Channel lid and with connecting conduit between the two junction boxes. -
Page 18: Electrical Wiring Instructions
MSTT-MC Installation Instructions Electrical Wiring Instructions Run permanent AC power wires to the unit. Primary side of transformer DC resistance is rated at WARNING 2.6 ohms. Use a licensed electrician to perform this procedure adhering to all local electrical codes. NOTE In the event the transformer needs to be replaced, it must be replaced with Alvarado P/N 10-3008A (110V) or 10-3003F (220V) as specified in UL File BP20972, Projects 4787469780, 4787461699. -
Page 19: Turnstile Control Board Layout
MSTT-MC Installation Instructions Turnstile Control Board Layout Fig. 27 Fig. 27 J603 J602 J601 J600 J800 J801 CCW_EL CW_EL CCW_JS CW_JS CCWPASS ACTIVATE TESTMODE HOME CWFL CWPASS CWFS CCWFL CCWFS TIME1 TIME2 TIME3 TIME4 STK-Y STK-N EO-NO EO-NC IMP1 IMP2 SPD1 SPD2 INPUTS... -
Page 20: Terminal Descriptions
MSTT-MC Installation Instructions Terminal Descriptions Item Name Description Explanation J603 CCW_EL Connection for EL Lights - If red/green status lights are used, the green light signifies that the turnstile Counterclockwise is ready to accept an activation for the Counterclockwise direction. When CCWNP connection is closed, the red light will be illuminated and signifies that the turnstile will not accept an activation. - Page 21 MSTT-MC Installation Instructions Terminal Descriptions (Cont) Ground wire connecton from the access Ground wire connection from the access control system. control system. INPUTS Reserved for use with touchless activation sensor - Touchless Activation Sensor - Counterclockwise direction Counterclockwise INPUTS Reserved for use with touchless activation sensor - Touchless Activation Sensor - Clockwise direction Clockwise...
- Page 22 MSTT-MC Installation Instructions Terminal Descriptions (Cont) Ground wire connection to the access Ground wire connection to the access control system. control system. CWCNT Contact closure output upon complete Provides feedback to the access control system that a Clockwise passage Clockwise rotation has been completed.
-
Page 23: Dip Switch Layout
MSTT-MC Installation Instructions DIP Switch Layout Fig. 28 Fig. 28 CWFL CWFS CCWFL CCWFS TIME1 TIME2 TIME3 TIME4 STK-Y STK-N EO-NO EO-NC IMP1 IMP2 SPD1 SPD2 SPD3 SPD4 RST1 RST2 RST3 RST4 AUX 1 AUX 2 AUX 3 AUX 4 *DIP switches shown in their default configuration. -
Page 24: Dip Switch Description
MSTT-MC Installation Instructions DIP Switch Description Switch Switch Left / On Right / Off Position Position CWFL CWFS Configures solenoid control for the Clockwise direction to Configures solenoid control for the Clockwise direction to Fail-Safe. Power is applied to solenoid to maintain lock Fail-Lock. -
Page 25: Initial Power Up Sequence
MSTT-MC Installation Instructions Initial Power Up Sequence WARNING Ensure turnstile passage way is clear of obstructions before applying power. When power is first applied, the turnstile may rotate up to 3x though the turnstile will not be ready for an activation until the Home position has been set. -
Page 26: Testing Turnstile Operation
MSTT-MC Installation Instructions Testing Turnstile Operation Perform the following turnstile functionality tests to validate turnstile operation. The following is assumed (Controlled Passage mode tests only): • The access control system is operational and all access control wiring to the turnstile is connected. •... - Page 27 MSTT-MC Installation Instructions Testing Turnstile Operation (Cont.) Function Test Procedure Turnstile Response Emergency Override • Provide (or remove, if N.C.) a • Roto will free-spin in the direction receiving sustained dry contact to CWFA / the sustained dry contact (CWFA / CCWFA) CCWFA.
-
Page 28: User Activation And Passage Instructions
MSTT-MC Installation Instructions User Activation and Passage Instructions Print and distribute this page to inform users how to properly operate the turnstile. NOTES • Always walk slowly through the turnstile • Always use caution when using the turnstile Follow the steps below on how to use the turnstile. The turnstile should always be in the “Home”... -
Page 29: Post-Installation Checklist
MSTT-MC Installation Instructions Post-Installation Checklist Electrical Validate that electrical connections meet local code requirements. Operation Validate Key Override Operation. Ensure Key Overrides are in proper operational positions. Ensure Home positions are set. Validate turnstile operation in conjunction with the installed access system. Perform multiple activations and rotations in each direction. -
Page 30: Cleaning And Maintenance
MSTT-MC Installation Instructions Cleaning and Maintenance The frequency of interior maintenance will depend on how often the turnstile is used, the type of personnel using the turnstile and the environment. Installed turnstiles should be inspected once during the first 30 days after installation. Thereafter, follow the maintenance schedule on the following pages. - Page 31 MSTT-MC Installation Instructions Cleaning and Maintenance (Cont) Stainless Steel Finishes (Cont) For stubborn stains, heavy spotting and rust, our #1 recommendation is MAAS Metal Polish (in the liquid form). This is hands down the best product we have used. Follow the manufacturer’s directions but in brief: (1) wipe down excess dirt from the turnstile;...
-
Page 32: Lubrication
MSTT-MC Installation Instructions Lubrication It is recommended that the following lubricants be used when lubricating the MSTT turnstile. Dow Corning MolyKote G-0010 Multipurpose Grease (-20° to +300°) DuPont Teflon Non-Stick Dry-Film Lubricant (Bottle) (-100° to +480°) NOTE For installations in extreme cold locations, we recommend using Molykote 33 Extreme Application Grease (-100°... - Page 33 MSTT-MC Installation Instructions Lubrication (Cont) Fig. 32 Fig. 32 Springs (Figure 32) Lubricate spring contact points with DuPont Teflon Non- Lock Arm Stick Dry-Film Lubricant. Place lubricant on spring body Return by adding 1 drop on contact points. Spring Solenoid Spring Fig.
-
Page 34: Troubleshooting
MSTT-MC Installation Instructions Troubleshooting If the steps listed in this section do not resolve the issue, contact Techncial Support. Fail-Lock direction will not unlock Power Issues Cause Solution Reference Control board has no power 1. Ensure primary power input contacts (J101) on the control board terminals are Fig. -
Page 35: Troubleshooting (Cont)
MSTT-MC Installation Instructions Troubleshooting (Cont) Fail-safe direction will not unlock Power Issues Cause Solution Reference Control board has no power 1. Ensure primary power input contacts (J101) on the control board terminals are Fig. 26 / 26A / 27 secure and tight. 2. - Page 36 MSTT-MC Installation Instructions Troubleshooting (Cont) Fail-safe direction will not re-lock Mechanical Issues Cause Solution Reference Incorrect springs Verify that the springs on your unit are identical to the springs used in the illustration. Fig. A1 Springs attached incorrectly Verify that the springs are attached correctly and in the correct mounting holes. Fig.
-
Page 37: Appendix A - Changing Fail-Safe / Fail-Lock
MSTT-MC Installation Instructions Appendix A - Changing Fail-Safe / Fail-Lock Standard Side Default Configuration / Tandem Side Reverse Configuration: Fig. A1 Fig. A1 CW - Fail-Lock / CCW - Fail-Safe Fail-Lock Direction Fail-Safe Direction * Components not shown for clarity. Solenoid (Fail-Safe position) Solenoid Spring (Fail-lock) Solenoid Plunger... -
Page 38: Appendix B - Cpstt Installation
Appendix B - CPSTT Installation These instructions are for installing the Yoke section of the CPSTT. When complete, please refer back to the "Roto Installation" section. CPSTT Illustrated Parts List Yoke Roto Assemblies (Qty 2) (Qty 1) (Qty 4) Yoke Mounting Yoke Mounting Channel - Lower Channel - Upper... -
Page 39: Yoke Installation
MSTT-MC Installation Instructions Yoke Installation Lay the floor template over the installation location while aligning the centerlines - ensure the template is properly positioned to fill the space available and is orientated correctly. [Figure B2] Using a ⅝" concrete drill bit, drill an anchor hole 3" in depth at the center of each marked location on the template. - Page 40 rst. Use a hammer to tap the anchor into place, if ” Concrete Drill Bit needed. Ensure that the anchor is ush with the concrete oor. Yoke Installation (Cont) Place one lower mounting channel over a mounting hole. Insert and tighten one "...
- Page 41 MSTT-MC Installation Instructions Yoke Installation (Cont) Yoke Upper Mounting Channel Installation Place each upper mounting channel inside the Yoke Fig. B9 Fig. B9 upper channel (Figure B9). Align mounting channel with the pre-drilled hole (Figure B9 - Inset) . Upper Channel Use a 9/64"...
-
Page 42: Appendix C - Clstt Installation
Appendix C - CLSTT Installation These instructions are for installing the Yoke section of the CLSTT. When complete, please refer back to the "Roto Installation" section. CLSTT Illustrated Parts List Yoke Roto (Qty 2) (Qty 2) (Qty 1) 1/4-20 x 1" Mounting Screws (Qty 12) Yoke Mounting Yoke Mounting... -
Page 43: Revision History
MSTT-MC Installation Instructions Revision History Revision Date Author Description 4/23/2021 C. Maynez Initial Document Creation 8/26/2024 C. Maynez Updated to corporate branding & top channel conduit images. Installation Instructions support@alvaradomfg.com +1(909) 591-8431 www.alvaradomfg.com Page 43... - Page 44 Inline Stacked Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Toll Free: (800) 423-4143 Fax: (909) 628-1403 information@alvaradomfg.com www.alvaradomfg.com © 2021 Alvarado Manufacturing Company, Inc. This work may not be reproduced, published or redistributed, in whole or in part, without the express prior written permission of Alvarado.
