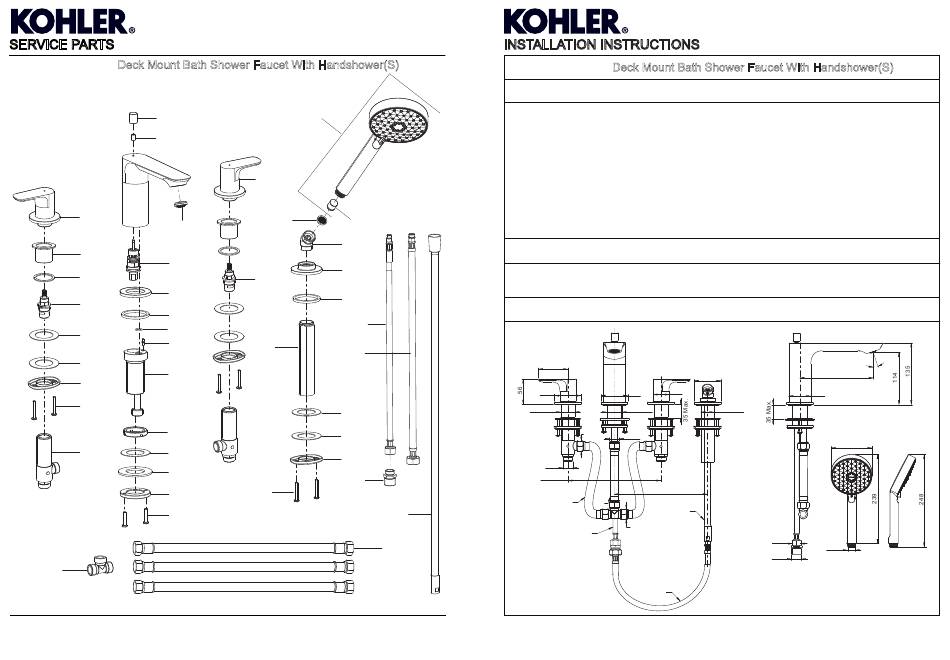

SERVICE PARTS
31236T-4
Deck Mount Bath Shower Faucet With Handshower(S)
1343770**
1175324**
1344953**
3020067
1347132
1344971
871021
1344972**
835749
1043069
42045
22352
837333
1110332
1344976
1131955
77539
1340868
880062
22352
1263365
3002530
831587
3008644
**Color code must be specified when ordering.
1344978-2A-C
ALEO S
1226888**
1344954**
77420
79680
897637**
1344977**
835750
1043069
3009021
75100**
834428
22352
1110332
1131955
865067
77539
2BL:1368618-C2B
Others:898324**
834361
4
INSTALLATION INSTRUCTIONS
31236T-4
Deck Mount Bath Shower Faucet With Handshower(S)
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
3. Observe local plumbing codes.
4. If possible, install the faucet before installing the tub.
5. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer
is needed. The highest water and environment temperature is 60ºC. Please keep handshower, showerhead and
shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Left handle opens with turning counter-clockwise. Right handle opens with turning clockwise. water flows out from
spout when faucet diverter is in the normal position. Lift the diverter knob gently, shower works.
ROUGH-IN DIMENSIONS
64
Ø30
Ø58
Ø58
Ø33~Ø36
Ø35~Ø38
G1/2˝
G1/2˝
G1/2˝
150~450
200~800
415
415
2000
G1/2˝
600
600
1344978-2A-C
ALEO S
18º
160
Ø58
Ø48
Ø31~Ø36
Ø110
G3/8˝
G1/2˝
G1/2˝
1
