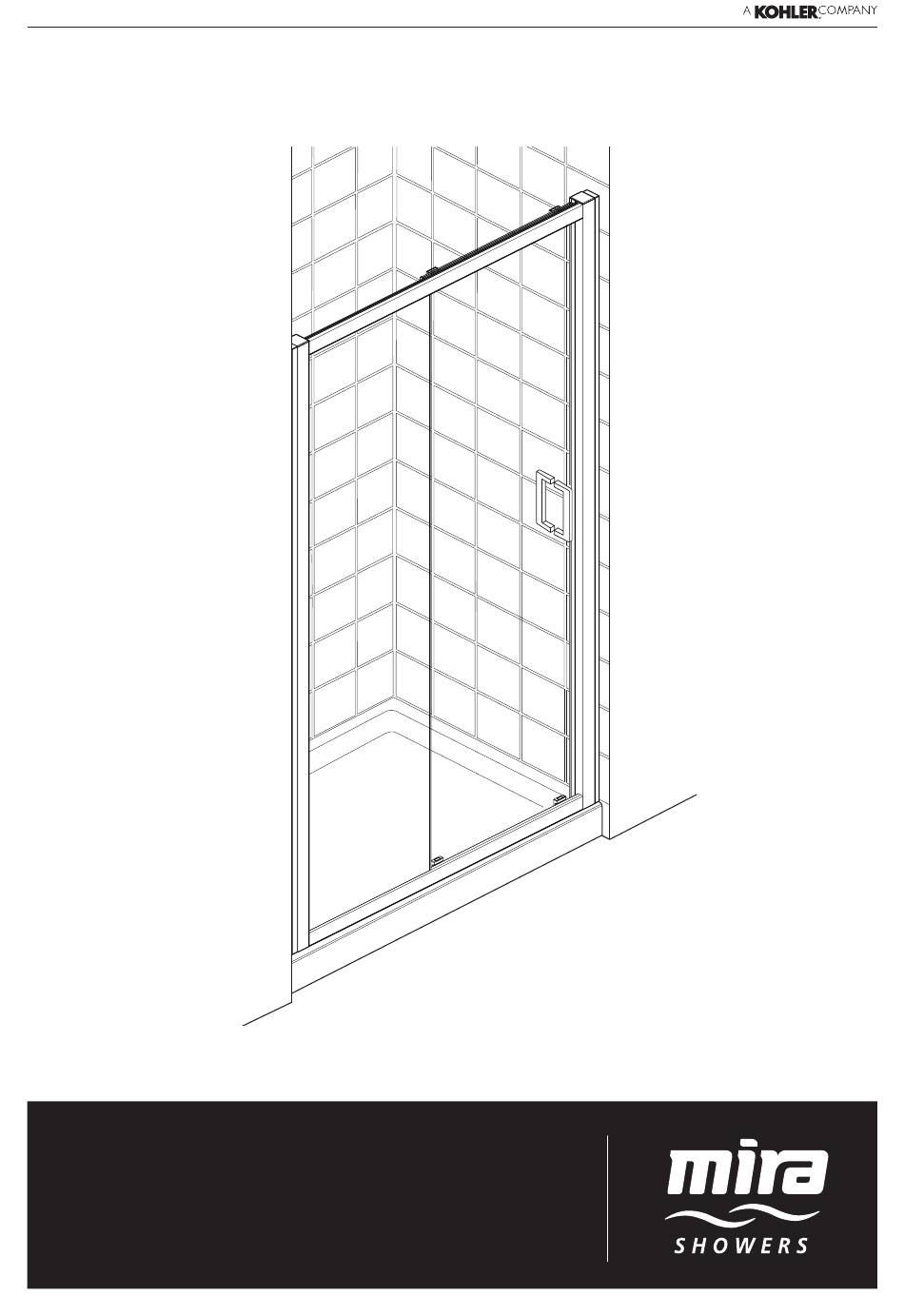

- Page 1 Leap Sliding Door (S43C) These instructions must be left with the user Installation Guide 1242342-W2-D...
- Page 2 1242342-W2-D...
- Page 3 INTRODUCTION Thank you for purchasing a quality Mira product. To enjoy the full potential of your new product, please take time to read this guide thoroughly, having done so, keep it handy for future reference. The following pages aim to provide comprehensive installation instructions, plus advice on how to care and maintain your product.
- Page 4 Ensure the size of door/panel is suitable for the installation. Tempered safety glass cannot be cut. Ensure nothing can impact the door or glass panels during operation. When Fitting the Enclosure The wall channels must be installed onto a tiled or waterproof finished flat and even wall surface.
- Page 5 PACK CONTENTS 1 x 2.0 mm A/F 1 x 3.0 mm A/F 1242342-W2-D...
- Page 6 X 1 q X 1 q X 1 q X 2 q X 1 q X 1 q X 1 q 1242342-W2-D...
- Page 7 INSTALLATION 10 mm Note! Make sure that the ± 0 mm walls have been tiled down to the tray. Height of Enclosure (mm) 1900 Min/Max Frame Adjustment Enclosure Size Minimum (mm) Maximum (mm) 1000 1010 1100 1050 1110 1200 1150 1210 (a) Install the shower tray in accordance with the manufacturer’s instructions.
- Page 8 (a) Remove the wall channels. (b) Place the door to one side taking care not to damage it. 1242342-W2-D...
- Page 9 ± 0 mm 6 mm 10 mm (a) Position the wall channel (handle side) on the wall. Using a spirit level make sure that it is upright. (b) Mark the position of the fixing holes, then remove the wall channel. (c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs (supplied).
- Page 10 ± 0 mm 6 mm 10 mm (a) Position the second wall channel (hinge side) on the wall. Using a spirit level make sure that it is upright. (b) Mark the position of the fixing holes, then remove the wall channel. (c) Drill with a 6 mm masonry bit (not supplied) and plug using the wall plugs (supplied).
- Page 11 10 mm (a) Apply silicone sealant along the length of the wall and at the bottom where the wall channel will be placed. 1242342-W2-D...
- Page 12 (a) Install the first wall channel into the door frame and hold in position. (b) Install the door frame over the wall channel that had been secured to the wall earlier. Make sure that you do not smudge the silicone sealant applied in the previous step.
- Page 13 (a) Open the door. (b) Install the wall channel fixing screws through the access holes in the door frame. Note! The plastic sleeve is provided as an installation aid. (c) Fully tighten the fixing screws, making sure that the wall channel is upright. 1242342-W2-D...
- Page 14 ± 0 mm (a) Centralise the door frame within the wall channels, making sure that the door frame is square. 1242342-W2-D...
- Page 15 3.0 mm 90° (a) Using the 3.0 mm hexagonal wrench (supplied), turn through 90° clockwise to lock the door frame in position. 1242342-W2-D...
- Page 16 5 10 Top Roller (a) Turn the door so that it is in the correct orientation. (b) Fully turn the allen key clockwise on both top rollers to lock rollers in uppermost position. (c) Refit the door by first locating the top roller assemblies on the track. (d) Fit the covers.
- Page 17 5 11 If the door is out of square, adjust as follows: (a) Unlock the roller assemblies (b) Adjust the door as required. (c) Lock the roller assemblies. (d) Fit the covers. 1242342-W2-D...
- Page 18 5 12 Bottom Roller (a) Unlock the bottom roller assemblies. (b) Move the bottom roller assemblies up or down until they locate correctly in the bottom track and release correctly using the roller release buttons. (c) Lock the bottom roller assemblies. (d) Fit the covers.
- Page 19 5 13 Note! Ensure infill strip is installed as illustrated with thicker section towards outside of enclosure. (a) Install the infill strip to the door wall channel as shown above. Note! The magnetic infill strip must be fitted on the door wall channel as it is used to keep the door closed.
- Page 20 5 14 (a) Install the seal to the glass panel. 1242342-W2-D...
- Page 21 5 15 (a) Install the seal to one side of the door and the magnetic door seal to the closing side, ensuring that the magnet attracts to the wall channel. 1242342-W2-D...
- Page 22 5 15 5 16 5 17 2.0 mm 1242342-W2-D...
- Page 23 5 19 Note! Silicone should be applied vertically where the door jamb and wall channel join on the outside of the enclosure. Note! Silicone should be applied 10cm vertically up from the base on the glass/aluminum join on the outside of the enclosure on the fixed panel.
- Page 24 Chrome Parts Use only cleansers expressly specified for chrome! KOHLER Glass Cleaner For occasional cleaning of glass treated with KOHLER Glass Protector or for more regular maintenance of untreated surfaces, we recommend using KOHLER Glass Cleaner. The cleaner cleans and polishes without smearing or streaking and rejuvenates the Glass Protector.
- Page 25 SPARE PARTS 1242342-W2-D...
- Page 26 1781.411 1000 Slider Door Spare 1781.412 1100 Slider Door Spare 1781.413 1200 Slider Door Spare 1781.415 1000 Slider Panel Spare 1781.416 1100 Slider Panel Spare 1781.417 1200 Slider Panel Spare 1857.284 Handle Spare 1781.419 Slider Top Bearing Spare 1781.420 Slider Bottom Bearing Spare 1781.377 Door Top Cap Spares 1781.380...
- Page 27 The performance of the products described above, are in conformity with the relevant community harmonisation legislation. This declaration of performance is issued under the sole responsibility of Kohler Mira Ltd. Signed for and on behalf of Kohler Mira Ltd. Signature:...
- Page 28 United Kingdom and the Republic of Ireland). DAP 16.06.2013 5 013181 077094 Mira is a registered trade mark of Kohler Mira Limited. The company reserves the right to alter product specifi cations without notice. 1242342-W2-D © Kohler Co. January 2018...
