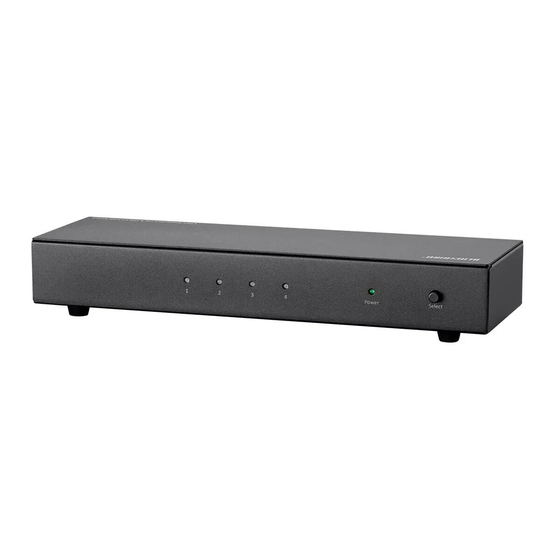

- Page 1 4K 4x1 DisplayPort® and USB KVM Switch P/N 36653 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the... -
Page 4: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x 4K 4x1 DisplayPort® and USB KVM switch... - Page 5 Rear Panel 1. DC 5V: DC barrel connector for connecting the included AC power adapter. 2. Console Headphone: 3.5mm TRS jack for connecting a pair of headphones or speakers. 3. Console Microphone: 3.5mm TS jack for connecting a microphone. 4. Console Mouse: USB port for connecting a USB mouse 5.
-
Page 6: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM INSTALLATION 1. Power off and disconnect from its power source each device that will be connected to the switch. 2. Using a DisplayPort® cable (not included), plug one end into the input on your monitor, then plug the other end into Console DisplayPort port on the switch. 3. - Page 7 8. Using a DisplayPort® cable (not included), plug one end into the PC1 DisplayPort port on the switch, then plug the other end into the DisplayPort video output on your first computer. Note: In order for the switching function to work, the first connection must be to a computer.
-
Page 8: Technical Support
Note that the # above can only be a single digit. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 9: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class A digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
