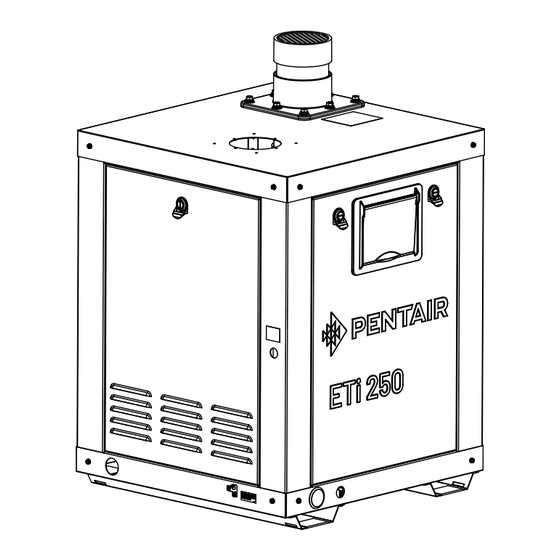

- Page 1 GAS CONTROL VALVE KIT (P/N 462057) FOR ETi® 250 POOL HEATERS INSTALLATION GUIDE THIS PRODUCT MUST BE INSTALLED AND SERVICED BY A QUALIFIED SERVICE PROFESSIONAL! READ AND FOLLOW ALL INSTRUCTIONS!
-
Page 2: Important Safety Instructions
Guide. Failure to follow warnings and instructions can result in severe injury, death, or property damage. Call (800) 831-7133, or visit www.pentair.com, for additional free copies of these instructions. SERIOUS BODILY INJURY OR DEATH CAN RESULT IF THIS PRODUCT IS NOT INSTALLED AND USED CORRECTLY. -
Page 3: Customer Service / Technical Support
CUSTOMER SERVICE / TECHNICAL SUPPORT Hours: 8:00 to 7:30 EST (5:00 - 4:30 PST) Call: (800) 831-7133 Visit: www.pentair.com Fax: (800) 284-4151 TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..... REMOVING THE EXISTING VALVE ....INSTALLING THE NEW VALVE ......Kit Contents Valve Installation VERIFYING GAS PRESSURE ........ - Page 4 REMOVING THE EXISTING GAS VALVE Before beginning valve removal; • Refer to the ETi 250 Installation and User’s Guide (P/N 476361) and verify all installation and gas supply requirements were met during unit installation. Close the Supply Line Valve. Refer to FIGURE 3, page 5. •...
- Page 5 REMOVING THE EXISTING GAS VALVE (cont.) Remove and discard the Plastic Tubing (FIGURE 2) running from the Gas Valve to Plastic the Air Orifice. Tubing Note: If needed, a heat gun may be used to help remove tubing from the air orifice. Disconnect Disconnect the Yellow and Yellow/White Wires...
- Page 6 INSTALLING THE NEW GAS VALVE This gas control valve is ONLY intended for use with an Pentair ETi 250 heaters. If this valve is used in any other model of heater, it can create a risk of fire and/ or excess of carbon monoxide, which can result in to property damage, personal injury (including brain damage) or death.
- Page 7 Valve Installation (cont.) Using a pair of pipe wrenches or tongue-and-groove pliers, thread the upper gas line Union Nut onto the Valve Outlet. Refer to FIGURE 7, page 6 Connect the white locking connectors of the provided Wire Harness to the Wiring Harness Terminals highlighted in FIGURE 8.
