GreenWorks CK600D Service Manual

GreenWorks CK600D Service Manual

60v go-kart
Hide thumbs Also See for CK600D:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
EN
EN
EN
OVC917
REV1.0
7416702T 60V GO-KART
7416702
60V GO-KART
7427602
60V GO-KART
7421502
60V GO-KART
SERVICE MANUAL
SERVICE MANUAL
SERVICE MANUAL
SERVICE MANUAL
www.greenworkstool.com
CK600D
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CK600D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GreenWorks CK600D

Summary of Contents for GreenWorks CK600D

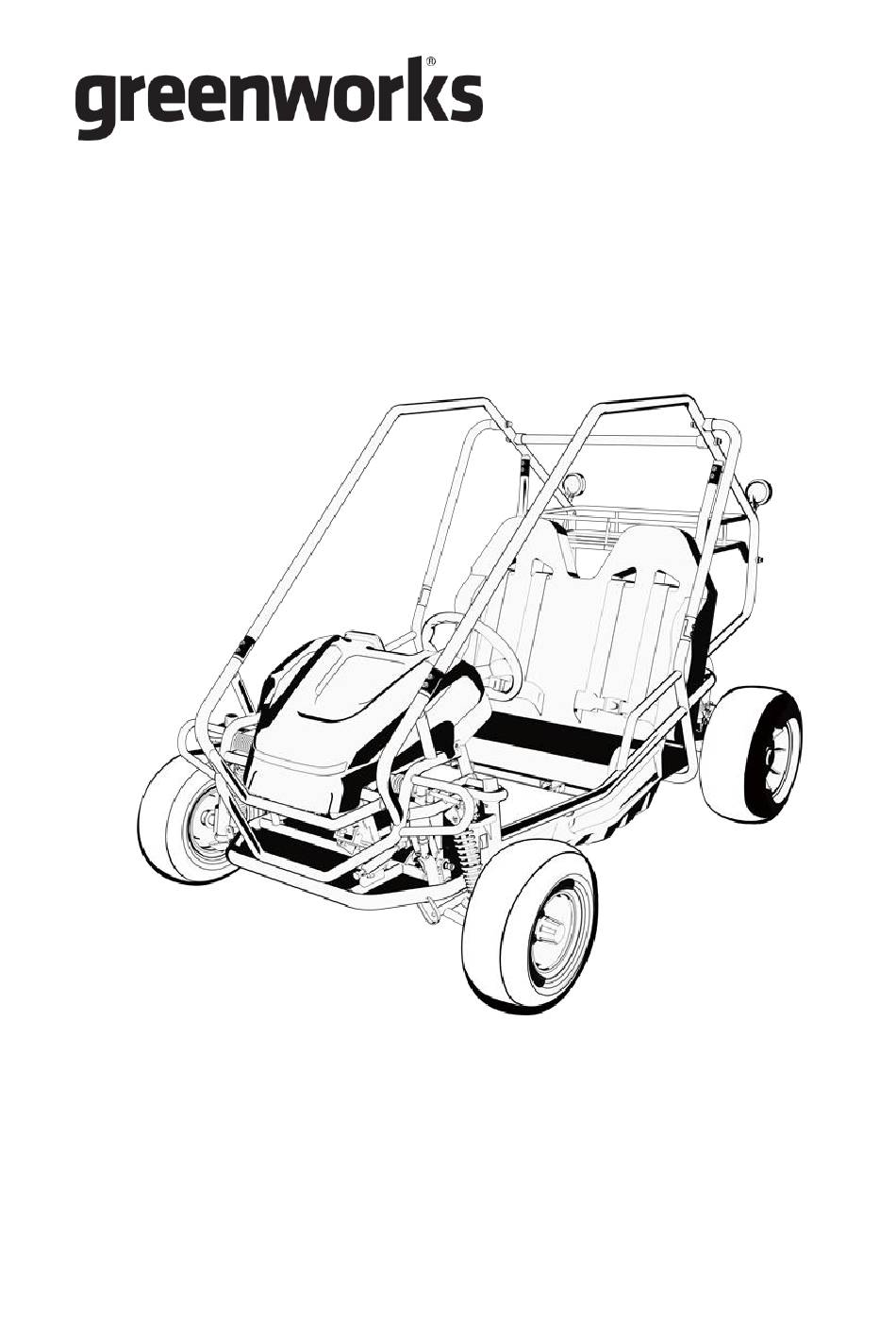

  • Page 1 CK600D 7416702T 60V GO-KART SERVICE MANUAL 7416702 60V GO-KART SERVICE MANUAL 7427602 60V GO-KART SERVICE MANUAL 7421502 60V GO-KART SERVICE MANUAL OVC917 www.greenworkstool.com REV1.0...

  • Page 2: Table Of Contents

    CONTENTS General Information LABELS-WARNING/SAFETY ..................3 LABELS-BRAND/MODEl ....................5 Body and Structures System FRAME ASSEMBLY ....................... 7 BATTERY COVER ASSEMBLY ..................9 BELT ASSEMBLY ......................11 GUARDS AND PROTECTIVE PARTS ................. 13 Electrical System CONTROLLERS AND BOX PARTS ................15 SWITCHES ＆...

  • Page 3: Labels-Warning/Safety

    LABELS-WARNING/SAFETY 11-01 11-02 11-03 11-04 11-05 11-1 REV1.0...
  • Page 4 ITEM NO. PART NO. DESCRIPTION 11-01 R0207499-00 Anti-pinch Hand - Warning Label 11-02 R0207500-00 Anti-scald - Warning Label 11-03 R0207501-00 Power Off - Warning Label 11-04 R0207502-00 Common Use - Warning Label 11-05 R0207503-00 Tire Pressure Label 11-2 REV1.0...

  • Page 5: Labels-Brand/Model

    LABELS-BRAND/MODEl 12-01 12-02 12-03 12-1 REV1.0...
  • Page 6 ITEM NO. PART NO. DESCRIPTION 12-01 R0207496-00 Nameplate Label 12-02 R0207497-00 60V Decorative Label 12-03 R0207498-00 GW Logo Label For Controller Box 12-2 REV1.0...

  • Page 7: Frame Assembly

    FRAME ASSEMBLY 21-1 REV1.0...
  • Page 8 ITEM NO. PART NO. DESCRIPTION 21-01 R0207009-00 Steering Ball Head 21-02 R0208991-00 Side Guard 21-2 REV1.0...

  • Page 9: Battery Cover Assembly

    BATTERY COVER ASSEMBLY 22-1 REV1.0...
  • Page 10 ITEM NO. PART NO. DESCRIPTION 22-01 R0206736-00 Release Button 22-02 R0206566-00 Spring Base 22-03 R0206562-00 Upper Shell 22-04 R0206751-00 Battery Box 22-05 R0206560-00 Release Button Shaft Retaining Plate 22-06 R0206567-00 Pressing Block 22-07 R0206708-00 Power Board Pcba 22-08 R0206565-00 Lower Shell 22-09 R0206572-00 Latch Base...

  • Page 11: Belt Assembly

    BELT ASSEMBLY 23-1 REV1.0...
  • Page 12 ITEM NO. PART NO. DESCRIPTION 23-01 R0206738-00 Seat Belts 23-2 REV1.0...

  • Page 13: Guards And Protective Parts

    GUARDS AND PROTECTIVE PARTS 24-1 REV1.0...
  • Page 14 ITEM NO. PART NO. DESCRIPTION 24-01 R0206474-00 Side Plate(Left/Right) 24-02 R0206447-00 Front Cover 24-03 R0207055-00 Dust Cover 24-04 R0207430-00 Sponge Wrapping 24-05 R0207431-00 Sponge Wrapping 24-2 REV1.0...

  • Page 15: Controllers And Box Parts

    CONTROLLERS AND BOX PARTS 31-1 REV1.0...
  • Page 16 ITEM NO. PART NO. DESCRIPTION 31-01 R0206561-00 Controller Lower Housing 31-02 R0206472-00 Drive Controller 31-03 R0206569-00 Controller Upper Housing 31-2 REV1.0...

  • Page 17: Switches ＆ Meter Parts

    SWITCHES ＆ METER PARTS 32-1 REV1.0...
  • Page 18 ITEM NO. PART NO. DESCRIPTION 32-01 R0206468-00 Led Dashboard 32-02 R0206448-00 Switch 32-03 R0207061-00 LED Switch 32-04 R0207062-00 DNR Switch B rake Signal Switch 32-05 R0208560-00 32-2 REV1.0...

  • Page 19: Lights Parts

    LIGHTS PARTS 33-1 REV1.0...
  • Page 20 ITEM NO. PART NO. DESCRIPTION 33-01 R0206475-00 LED Light 33-02 R0206739-00 Tail light 33-2 REV1.0...

  • Page 21: Others

    OTHERS 34-1 REV1.0...
  • Page 22 ITEM NO. PART NO. DESCRIPTION 34-01 R0206436-00 DC-DC Converters 34-02 R0206434-00 Speaker 34-2 REV1.0...

  • Page 23: Front Wheel Assembly

    FRONT WHEEL ASSEMBLY 41-1 REV1.0...
  • Page 24 ITEM NO. PART NO. DESCRIPTION 41-01 R0208109-00 Left Front Wheel Assembly 41-02 R0208656-00 Right Front Wheel Assembly 41-03 R0207054-00 Dust Cover 41-2 REV1.0...

  • Page 25: Shock Absorber Assembly

    SHOCK ABSORBER ASSEMBLY 42-1 REV1.0...
  • Page 26 ITEM NO. PART NO. DESCRIPTION 42-01 R0206467-00 Shock Absorber Assembly 42-2 REV1.0...

  • Page 27: Drive Motor

    DRIVE MOTOR 43-1 REV1.0...
  • Page 28 ITEM NO. PART NO. DESCRIPTION 43-01 R0208110-00 Left Hub Motor Assembly 43-02 R0208657-00 Right Hub Motor Assembly 43-2 REV1.0...

  • Page 29: Braking System

    BRAKING SYSTEM 51-1 REV1.0...
  • Page 30 ITEM NO. PART NO. DESCRIPTION 51-01 R0206469-00 Brake Assembly 51-2 REV1.0...

  • Page 31: Steering Wheel Assembly

    STEERING WHEEL ASSEMBLY 52-1 REV1.0...
  • Page 32 ITEM NO. PART NO. DESCRIPTION 52-01 R0206740-00 Steering Wheel 52-2 REV1.0...

  • Page 33: Seat Assembly

    SEAT ASSEMBLY 53-1 REV1.0...
  • Page 34 ITEM NO. PART NO. DESCRIPTION 53-01 R0206737-00 Seat 53-2 REV1.0...

  • Page 35: Pedals Assembly

    PEDALS ASSEMBLY 54-1 REV1.0...
  • Page 36 ITEM NO. PART NO. DESCRIPTION 54-01 R0207439-00 Pedals Assembly 54-2 REV1.0...

This manual is also suitable for:

7416702t741670274276027421502
