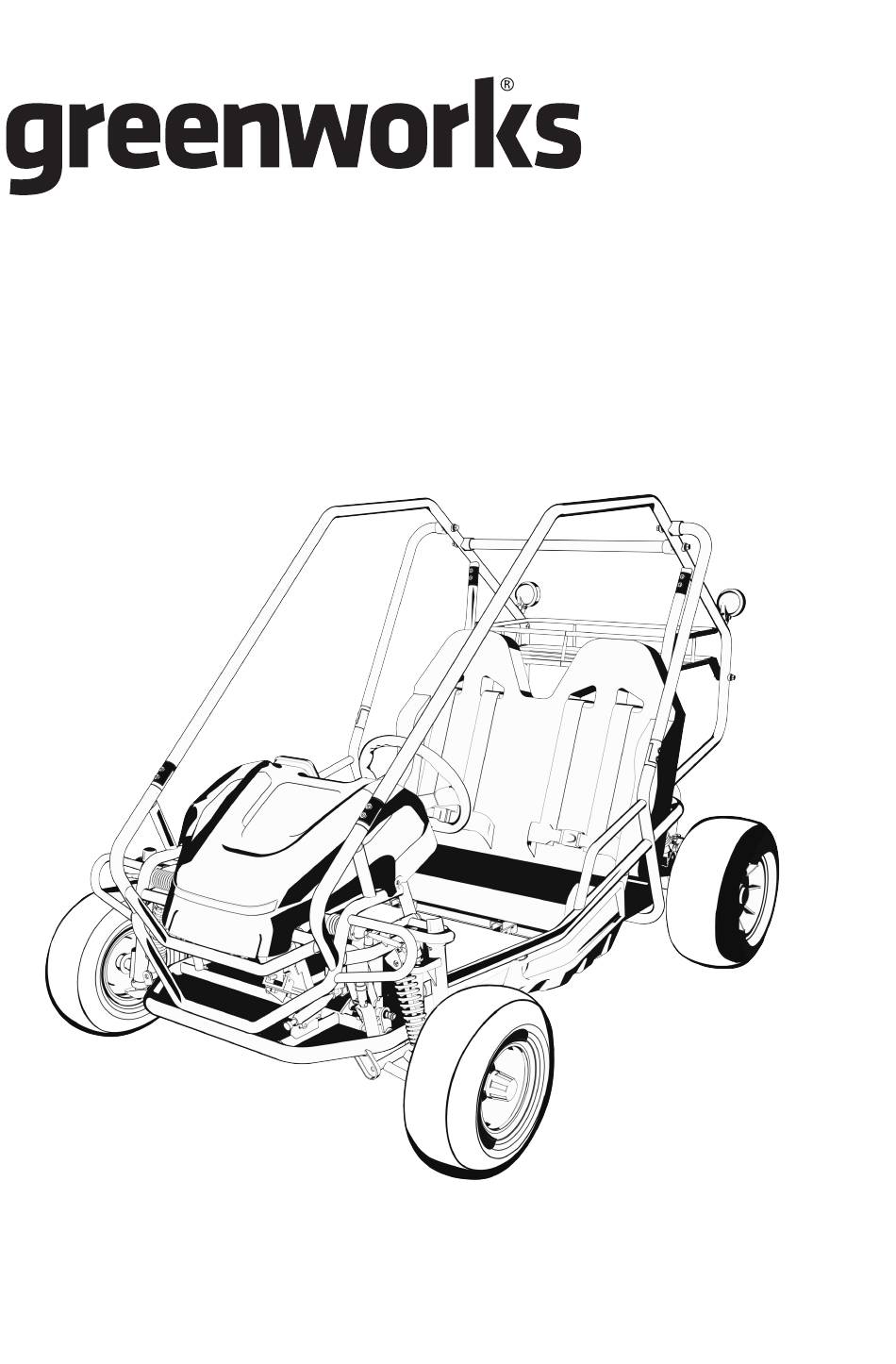

- Page 1 CK600D GO-KART OPERATOR MANUAL KART MANUEL D’OPÉRATEUR KART MANUAL DEL OPERADOR www.greenworkstools.com OVC917...
-
Page 2: Table Of Contents
English (Original Instructions) Light on/off..........12 Introduction......... 2 Speaker function........12 Product description........2 Drive the product........12 Intended use..........2 Drive uphill/downhill........13 Overview............ 2 Stop the product........13 Hardware list (not actual size)....3 Park the product........14 Symbols on the product......4 SMARTg home application.. -
Page 3: Introduction
English (Original Instructions) INTRODUCTION PRODUCT DESCRIPTION This product is a battery-operated go-kart with an electric motor. We are committed to continuously improving our products, and reserve the right to modify the design and appearance without prior notice. INTENDED USE This is a recreational vehicle designed for off road use only. Please check and consult your local state or territory laws and regulations on where you may operate this vehicle. -
Page 4: Hardware List (Not Actual Size)
English (Original Instructions) HARDWARE LIST (NOT ACTUAL SIZE) Toolkit Name Tool Millimeter Inch Approximations No. 8-10 Open-End Wrench 8-10 ~ 5/16-3/8 No. 12-14 Open-End Wrench 12-14 ~15/32-9/16 No. 13-15 Open-End Wrench 13-15 ~1/2-19/32 No. 17-19 Open-End Wrench 17-19 ~21/32-3/4 No. 5 Hex Key ~3/16 No. -
Page 5: Symbols On The Product
English (Original Instructions) Rack installation (Bag D) Name Quantity Picture Concave spacer M8 x 45 mm flange bolt (long bolt) M8 x 20 mm flange bolt (short bolt) M8 nut SYMBOLS ON THE PRODUCT Symbol Explanation IPX4 Waterproof level Direct current Important safety precautions. -
Page 6: Important Safety Instructions
• This product is not a toy and could be hazardous to operate. greenworks is not responsible for injuries or damage caused by a driver's inexperience or failure to follow the instructions in this user manual or in the new driver tutorial. -
Page 7: Fcc Requirement
English (Original Instructions) • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. •... -
Page 8: Install The Seat
English (Original Instructions) 2. Insert the M6 bolts and M6 nuts in Bag A into the steering wheel mounting holes. 3. Use the No.10 open-end wrench to fix the nuts,while using the No.5 hex key to securely tighten the bolts. 2. -
Page 9: Install The Brush Guard
English (Original Instructions) 3. Attach the two side support guards and the center support guard into place. Screw into place using four M8 x 50 mm flange bolts (long bolts) in Bag C. 4. Use the No.13 open-end wrench to fix nuts while using the No.10 open-end wrench to tighten all M8*50 mm flange bolts. -
Page 10: Install The Safety Net
English (Original Instructions) 2. Locate the corresponding plug located behind the seat. 3. Ensure that the connectors align correctly before connecting the two plugs together. 4. Use the 6 rubber straps in the bag to secure the taillight cable along the rear of the brush guards, with 3 rubber straps on each side. - Page 11 English (Original Instructions) What to check Check for • Ensure the brakes work prop- erly. Brake • Ensure brake pedal is not over worn and is correctly posi- tioned. • Ensure the steering wheel is correctly adjusted and tight- Steering wheel ened, allowing for proper steer- ing.
- Page 12 English (Original Instructions) 4.1.8 ADJUST AND FASTEN THE SEAT BELTS WARNING Driving this product without properly fastened seat belts for the operator and passengers may increase the chance of injury or death in the event of an accident. Never operate or allow a passenger to drive this product without properly fastening the seat belt.
-
Page 13: Start The Product
English (Original Instructions) LIGHT ON/OFF 1. Press the light switch to turn the light on or off. START THE PRODUCT 1. Press the start button to turn on the product. SPEAKER FUNCTION With this product, you can enjoy music through your Bluetooth-enabled phone. -
Page 14: Drive Uphill/Downhill
English (Original Instructions) Note: Do not pump the brake pedal to decelerate. 3. Reduce speed once you reach the top of the slope. If the product cannot reach the top of the slope: • Avoid turning the product around while driving, as this may cause it to roll over. -
Page 15: Park The Product
Press the brake pedal to release the brake lock pin and disengage the brake lock. SMARTG HOME APPLICATION SMARTg Home is a free mobile application that provides additional features for your Greenworks product. These features include extended information about products, product parts and servicing. CONNECT TO THE APP Note: Make sure to complete app set up before your first drive. -
Page 16: Maintenance Schedule
English (Original Instructions) WARNING • Remove battery or batteries from the product before you do any maintenance. • Failure to follow proper maintenance service, using third-party replacement parts, or modifying/removing components can result in injury to the user. MAINTENANCE SCHEDULE Item Before each use First 5 hours of use... -
Page 17: Storage
English (Original Instructions) • High speeds, along with wind, and rain may force moisture into the electronic components, which can lead to temporary malfunctions or permanent defects. • In case of malfunction occurring after transport in such conditions, remove the battery and allow all parts to air-dry when you reach your destination. -
Page 18: Technical Data
32°F (0°C) - 113°F (45°C) LIMITED WARRANTY This is a limited warranty provided by the manufacturer of the Greenworks Go-Kart (the "product") to the consumer or End Users (the “Limited Warranty”). This Limited Warranty only and exclusively applies to the Product distributed and/or sold by and/or through Greenworks or Greenworks Dealers. - Page 19 In the event of a defect covered by this Limited Warranty, Greenworks, at its own discretion, will proceed to repair or replace the faulty product or components in accordance with the terms outlined in this Limited Warranty. The Limited Warranty Period begins on the date of the original purchase of the product from Greenworks, an authorized Greenworks reseller, distributor, or an authorized Dealer, all of which may be collectively referred to as 'Greenworks Dealers'.
- Page 20 Transportation charges for the movement of any power equipment unit or attachments are the responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges for any part submitted for replacement under this warranty unless such return is requested in writing by Greenworks. USA address: Greenworks Tools P.O.
