Summary of Contents for GreenWorks 7403607AU
- Page 1 ...
-
Page 2: Table Of Contents
English (Original Instructions) Light on/off..........11 Introduction......... 2 Speaker function........11 Product description........2 Drive the product........11 Intended use..........2 Drive uphill/downhill........11 Overview............ 2 Stop the product........12 Hardware list (not actual size)....3 SMARTg home application..12 Symbols on the product......4 California Proposition 65...... -
Page 3: Introduction

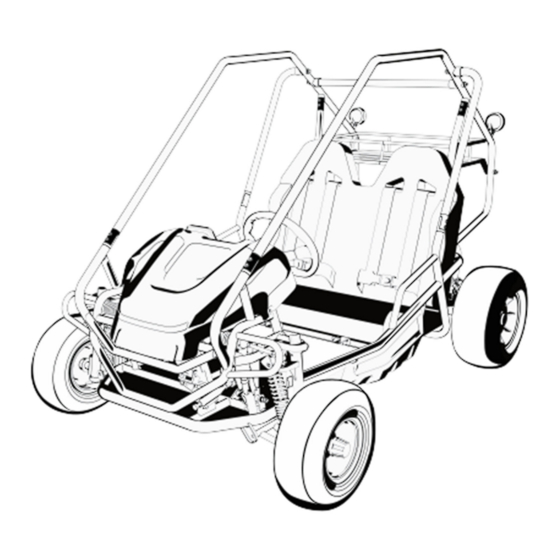

English (Original Instructions) INTRODUCTION PRODUCT DESCRIPTION This product is a battery-operated go-kart with an electrical motor. We are committed to continuously improving our products, and reserve the right to modify the design and appearance without prior notice. INTENDED USE This is a recreational vehicle for off-road driving. OVERVIEW Go kart Brush guard... -
Page 4: Hardware List (Not Actual Size)
English (Original Instructions) HARDWARE LIST (NOT ACTUAL SIZE) Steering wheel installation (Bag A) Name Quantity Picture M6 x 16 mm bolt M6 nut Seat installation (Bag B) Name Quantity Picture M8 x 40 mm flange bolt M8 nut Brush guard installation (Bag C) Name Quantity Picture... -
Page 5: Symbols On The Product
English (Original Instructions) SYMBOLS ON THE PRODUCT Symbol Explanation IPX4 Waterproof level Direct current Important safety precautions. Carefully read and understand instructions before operating the product and follow all warnings and safety instructions. Warning. Electric shock hazard. Never permit children under age 14 to operate this product. Operation by children under the age of 14 increases the risk of severe injury or death. - Page 6 • This product is not a toy and could be hazardous to operate. greenworks is not responsible for injuries or damage caused by a driver's inexperience or failure to follow the instructions in this user manual or in the new driver tutorial.
-
Page 7: Fcc Requirement
English (Original Instructions) • Have your product serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. • Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. -
Page 8: Install The Seat
English (Original Instructions) INSTALL THE BELT 1. Attach the end of the belt to the frame and use a INSTALL THE SEAT bolt, washer, gasket, and nut to secure it in place (as shown in the figure). Repeat this step on all 1. -
Page 9: Install The Rack
English (Original Instructions) INSTALL THE SAFETY NET Note: Do not fully tighten the bolts. Keep bolts loose until after the support guards are also in place. 1. Secure the safety net looping the eleven ends around the guard. 2. Align the rear support guards between the frame and main guard. -
Page 10: Before Driving
English (Original Instructions) BEFORE DRIVING 4.1.1 PRE-DRIVE CHECKLIST Make sure to check the condition of the product before each drive. What to check Check for • Ensure the brakes work prop- erly. Brake • Ensure brake pedal is not over worn and is correctly posi- tioned. -
Page 11: Start The Product
English (Original Instructions) Note: if there is no passenger in the passenger seat, make sure the seat belt on the passenger seat is locked together and secured. 1. Sit on the seat. 2. Adjust the length of the shoulder straps. 3. -
Page 12: Light On/Off
English (Original Instructions) Note: Do not pump the brake pedal to decelerate. LIGHT ON/OFF 3. Steer the product right and left by slightly turning the steering wheel clockwise or counterclockwise. 1. Press the light switch to turn the light on or off. SPEAKER FUNCTION With this product, you can enjoy music through your 4. -
Page 13: Stop The Product
SMARTG HOME APPLICATION brake intermittently to avoid brake overheating. STOP THE PRODUCT SMARTg Home is a free mobile application that provides additional features for your Greenworks WARNING product. These features include extended information about products, product parts and servicing. Do not park the product on a slope. -
Page 14: Maintenance
English (Original Instructions) MAINTENANCE IMPORTANT Carefully read and understand the safety regulations and the maintenance instructions before you clean, repair or do any maintenance work on the product. WARNING • Remove battery or batteries from the product before you do any maintenance. •... -
Page 15: Transportation, Storage And Disposal
English (Original Instructions) TRANSPORTATION, STORAGE AND DISPOSAL TRANSPORTATION • Any removable (electronic) parts, such as the charger and battery, should always be disconnected before transport. • Avoid transporting the product in bad weather conditions when possible. • Properly cover any exposed electronic parts during transport when transport in bad weather conditions cannot be avoided. -
Page 16: Technical Data
32°F (0°C) - 113°F (45°C) LIMITED WARRANTY Greenworks hereby warranties this product, to the original purchaser with proof of purchase, for a period of eighteen (18) months against defects in materials, parts or workmanship. Greenworks, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. - Page 17 USA address: Greenworks Tools P.O. Box 1238, Mooresville, NC 28115 Canadian address: Greenworks Tools Canada, Inc. P.O. Box 93095, Newmarket, Ontario, L3Y 8K3 Mexico address: TECNOLOGIA CAMPO Y JARDIN S.A. DE C.V. ADMINISTRADORES No. 5336 A, COL. ARCOS DE GUADALUPE, ZAPOPAN , JALISCO , C.P. 45037...
