Setup and Quick Start

The Select DAC interface is simple with few user controls. The input
source defaults to auto switching and the display will let you know if
you have an active input. Make the necessary connections, power on
your system and turn the volume knob up until you hear music.
Step 1.
Unbox the units and place the units into their desired locations in
your audio system.
Step 2.

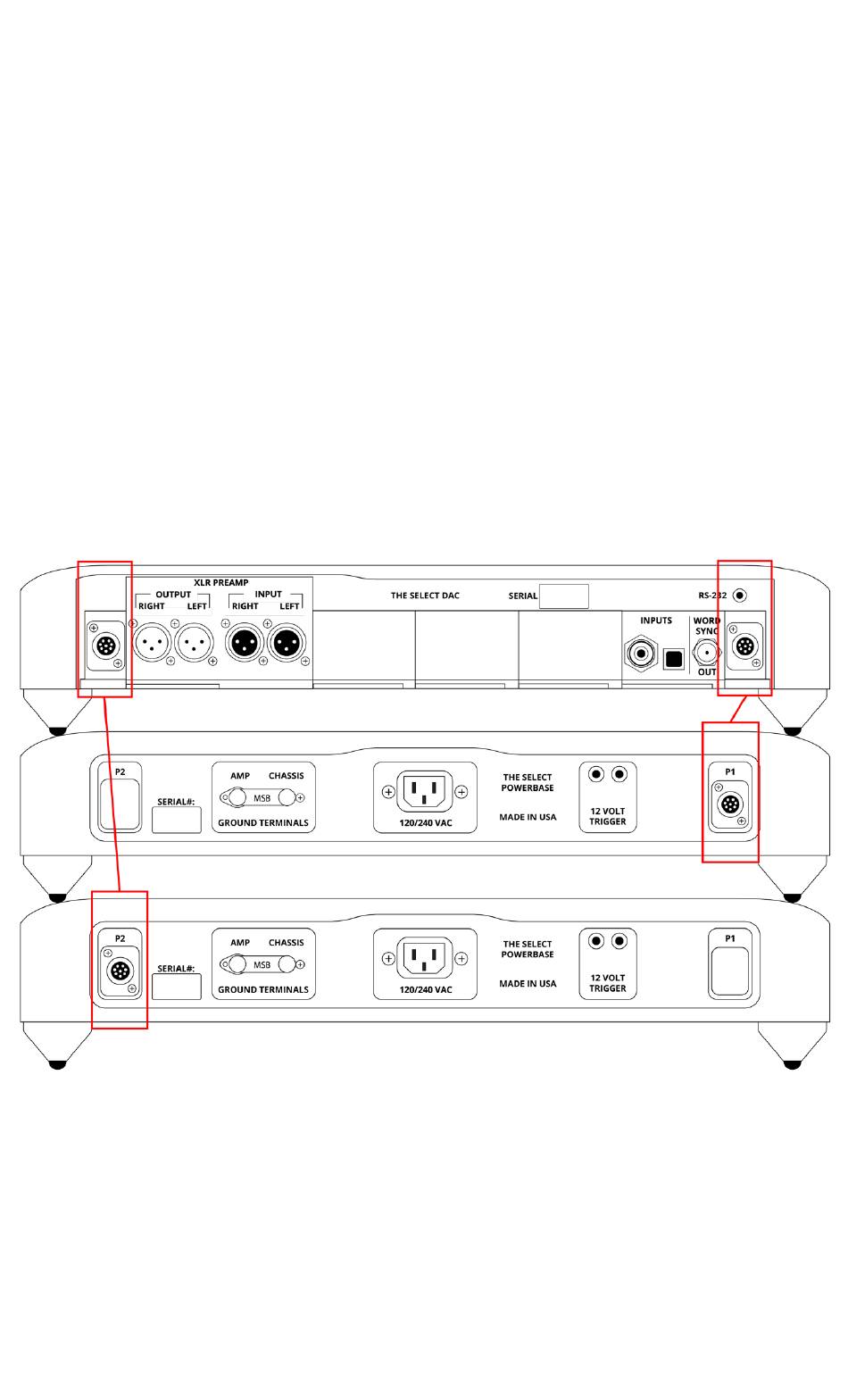

When connecting to the Select Powerbases, you'll have two Hybrid
Power cables. Use both cables to connect the power connectors
located on each of the Select Powerbases to both of the power
connectors located on the back of the Select DAC.
How to Disconnect Hybrid Power Cables
To disconnect a Hybrid Power cable, simply pinch the collar portion
of the cable where the arrow symbol is located and pull the collar of
the cable directly back from the jackpanel. No twisting or rotating is
required to disconnect the cable.
4
