Summary of Contents for XGIMI ElFin XL03A

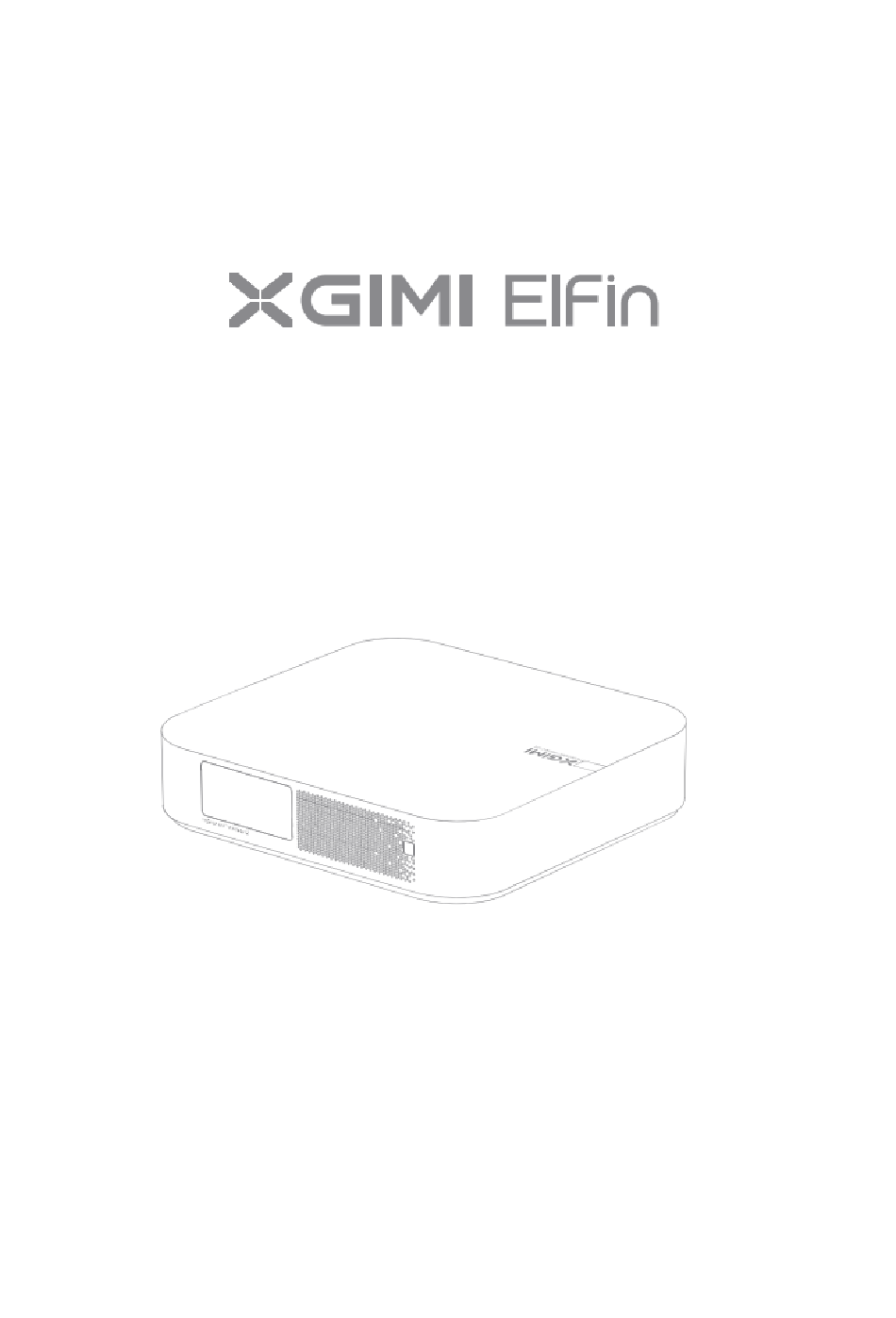

  • Page 1 USER GUIDE...
  • Page 2 Any objections to any content or clause found within the Instructions should be reported to XGIMI Technology in written form within 7 days after the purchase; otherwise, it will be assumed that you agree to, understand, and accept all the content of the Instructions.

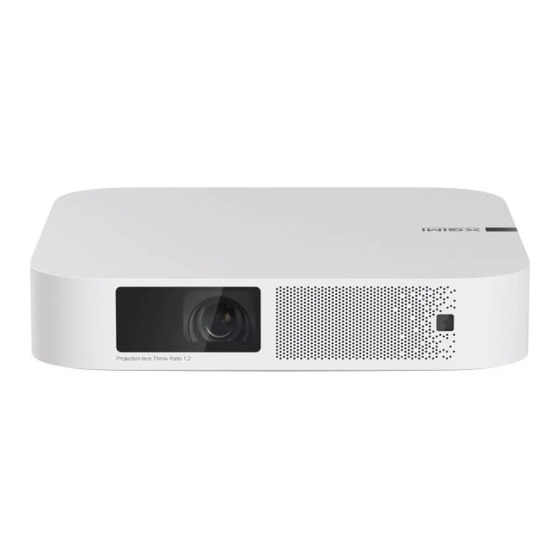

  • Page 3: Front View

    Overview Front View 1.Auto Focus ToF Part 2.Auto Keystone Correction Note: To prevent auto keystone correction failure, avoid blocking the sensor Button & input View Tripod Socket...
  • Page 4: Remote View

    Remote View Power button Menu button Google Assistant Input source button Settings button Arrow button Return button Home page VOL + (*Adjust Focus+) VOL- (*Adjust Focus-) Function switch *To adjust the volume, switch to "VOL" first, as seen above. Then use the VOL +/- button to adjust. *To adjust the focus, switch to "Focus"...
  • Page 5: Getting Started

    Getting Started 1. Device on/ off Connect to the power source and press the "Ф " button to turn on the device. When the device is on, press the" Ф " button to turn off the device. 2. Remove Control Pairing Position the remote control within 10 cm of the device.
  • Page 6 4. Automatic Focus Adjustment/Remote Focus Adjustment ▪ When the automatic focus adjustment function is enabled, the frame will be adjusted automatically when you turn on the device or move it to another location. ▪ You can enable automatic focus by using the switch at the bottom of the remote control.
  • Page 7: Google Assistant

    7. Bluetooth Speaker Enable Bluetooth on your smart phone and search for "XGIMI Elfin". After pairing both devices, you can play songs via the projector's speakers. 8. Chromecast Built - in™...
  • Page 8: More Settings

    VIII 9. More Settings Set your device and image at any interface by using the Settings button on the remote control. The various settings are described as follows. Brightness & Color Select a brightness mode and adjust the parameters. Image Mode Select different image modes in different scenarios, such as movie, football, office and game, to adjust the image parameters of video or signal source.
  • Page 9 Important Precautions Correct use of the device: Do not face lens into eyes because the strong projector light may cause injury to the eyes. ■ Do not block the air inlet/outlet of the device in order to avoid damage to internal electronic ■...
  • Page 10 FCC warning The device meets provisions of part 15 of FCC rule. Operation meets the following2 conditions:(1) the device will not cause harmful interference, and (2) the device must accept any interference received, including interference that may result in accidental operations. User manual or operating instructions shall remind users that intentional or unintentional modification and replacement of radiators without explicit approval from the responsible compliance party may prevent the user from operating the device.
  • Page 11 Warning: Please refer to the information on the exterior bottom of the enclosure for electrical and safety information before installing or operating the apparatus. Warning for remote controller & portal device: ▪ There is a risk of explosion if the battery is replaced with the wrong type of battery. ▪...
  • Page 12 Declaration of Conformity Chengdu XGIMI Technology Co., Ltd. hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in some of EU member states. For exam pie, the device can be used in the following Member States: Operations in the 5.15-5.25 GHz band are restricted to indoor usage only.
  • Page 13 * Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter etc.) * Beware that this product may emit harmful light radiation. You can find the Declaration of Conformity on: https://global.xgimi.com/pages/product- support Distributor: Display Me s.r.o, Jeronymova 1460/2, 251 01 Ricany, Czech Republic/ Tel. no.: +420 739 940 355, e-mail: info@displayme.com.
