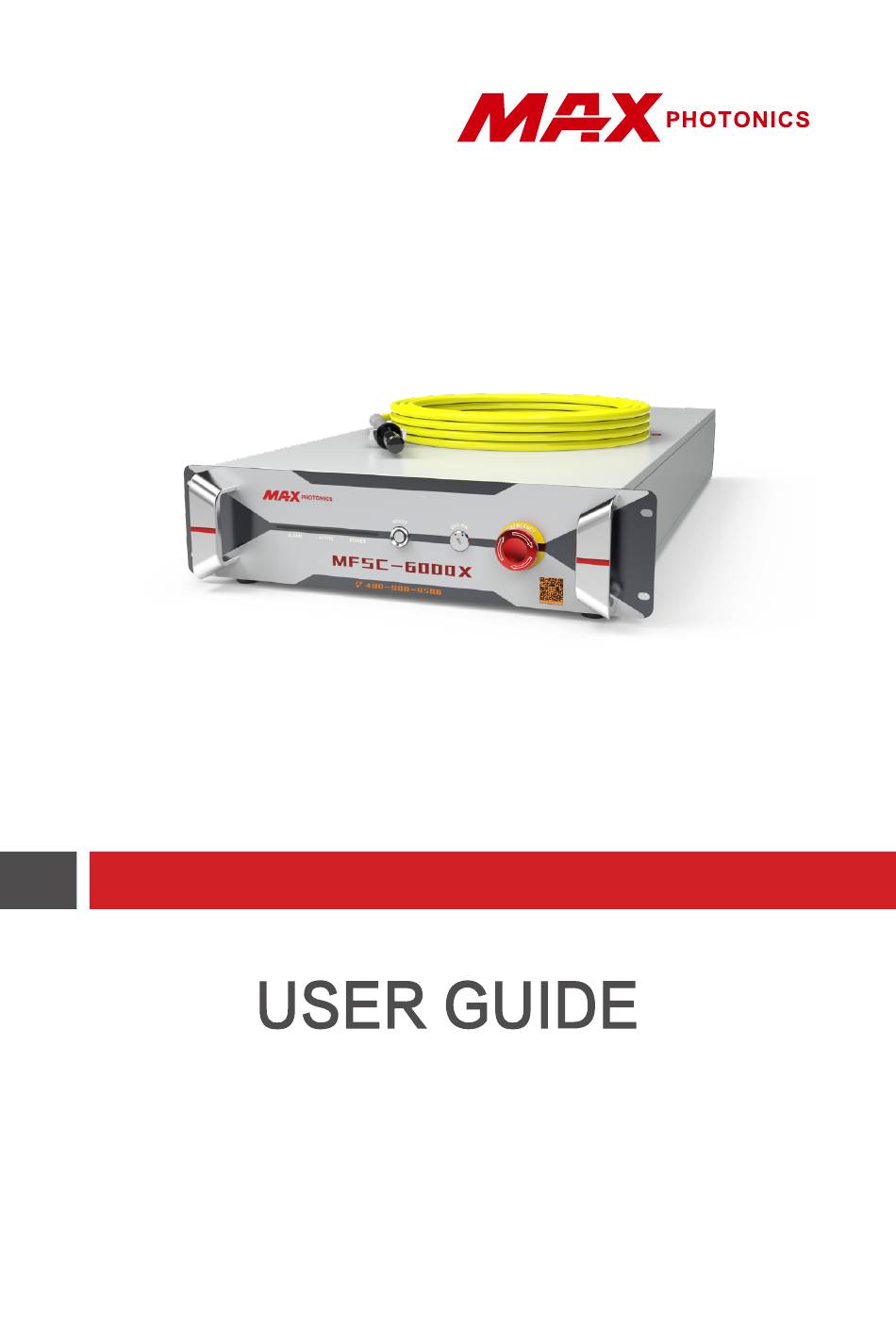

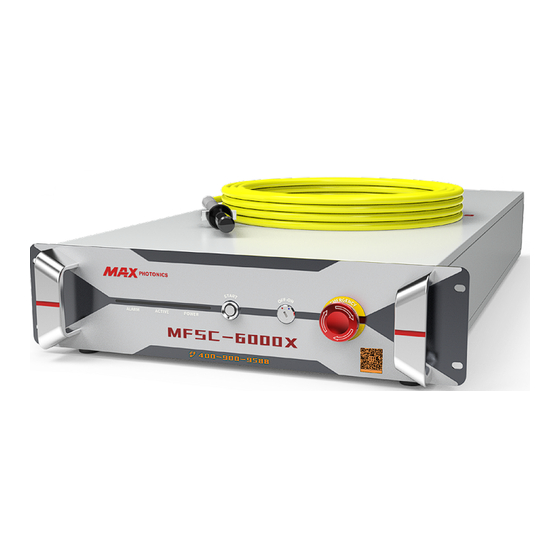

- Page 1 MFSC 6000X(G6.1) CW Fiber Laser Series Maxphotonics Co.,Ltd.
- Page 2 Copyright Notation Copyright © Maxphotonics Co ., Ltd ( here after referred to as Maxphotonics). All rights reserved. You may not copy, modify, transmit or publish this publication, in any form, in any media or by any means, without the prior written permission of Maxphotonics, except as allowed under applicable copyright laws.
- Page 3 Preface Thank you for using the MFSC 6000X(G6.1) CW Fiber Laser Series from Maxphotonics. We compile this document for you in order that the laser is used and maintained properly. Due to the limited level of the writers, coupled with time constraints, there are some careless mistakes in this document, your understanding and suggestion to help us make an improvement will be much appreciated .
-
Page 4: Company Profile
Company Profile Found in 2004, Maxphotonics is one of the first fiber laser manufacturers in China. It is also the first in China to realize independent intellectual property rights and vertical integration in the core technologies of fiber lasers and optical devices. -
Page 5: Table Of Contents
CONTENT Company Profile ……………………………………………………………… 2 Chapter 1 Characteristic Description …………………………………… 5 Chapter 2 General Safety Information …………………………………… 6 1-Safety Conventions …………………………………………………………… 6 2-Laser Protection ……………………………………………………………… 8 3-Reference Standard ………………………………………………………… 9 4-General Safety Instructions ………………………………………………… 10 5-Additional Safety Information ……………………………………………… 15 Chapter 3 Product Description ………………………………………………... - Page 6 CONTENT 6-Structural Layout ……………………………………………………………… 25 Chapter 5 Unpacking Guide ………………………………………………… 27 1-Unpacking Steps ……………………………………………………………… 27 2-Packing List …………………………………………………………………… 29 Chapter 6 Operation Guide …………………………………………………… 30 1-Notice …………………………………………………………………………… 30 2-Electrical Power Connection ………………………………………………… 30 3-Extension Interface …………………………………………………………… 30 4-Start Steps ……………………………………………………………………… 34 5-Mode Description ………………………………………………………………...
-
Page 7: Chapter 1 Characteristic Description
30% and deliver high efficiency, high reliability and high performance. Maxphotonics' MFSC Series CW Fiber Laser Series are Class 4 laser products and are designed and tested with safety. By following this User Guide and applying sound laser safety practices, it will be a safe and reliable device. -
Page 8: Chapter 2 General Safety Information
Chapter 2 General Safety Information 1-Safety Conventions All safety warning symbols during operating process of the laser include: SYMBOLS DESCRIPTION WARNING: Refers to a potential Electrical Hazard to human body. It requires a procedure that, if not correctly followed, may result in bodily harm to you and/or others. - Page 9 Chapter 2 General Safety Information IMPORTANT：Refers to any information regarding NO SYMBOL the operation of the product. Please do not overlook this information. NOTE : ◎ This device is classified as a high power Class IV laser instrument. It may emit up to 6KW average power from 1060nm to 1100nm.
-
Page 10: 2-Laser Protection
LaserVision USA, Kentek Corporation, Rochwell Laser Industries, etc. All the supplier information is provided by Maxphotonics only for the convenience to use, so Maxphotonics assumes no responsibility for any problem caused by using the products of... -
Page 11: 3-Reference Standard
Chapter 2 General Safety Information 3-Reference Standard Electromagnetic Compatibility Emission: EN IEC 61000-6-4:2019 CISPR 16-2-1 CISPR 16-2-3 Anti-interference Performance on Electromagnetic Compatibility: EN IEC 61000-6-2:2019 EN 61000-4-2:2009 EN 61000-4-3:2020 EN 61000-4-4:2012 EN 61000-4-5:2014+A1:2017 EN 61000-4-6:2014 EN 61000-4-11:2020... -
Page 12: 4-General Safety Instructions
Attention should be paid to related device protection. WARNING : ◎ The Maxphotonics MFSC laser light is strong enough to cut or weld metal, burn skin, clothing and paint. In addition, this light can ignite volatile substances such as alcohol, gasoline, ether and other solvents. During the operating process, the flammable materials around the laser must be isolated. - Page 13 Chapter 2 General Safety Information 1、Never look directly into the laser output port when the power is turned on. 2、Avoid positioning the laser and all optical output components at eye level. 3、Equip with laser beam casing. 4、4. Make sure to remove the tail cover of the laser output head before the laser is turned on, otherwise it will cause irreversible damage to the laser fiber output head.
- Page 14 Chapter 2 General Safety Information of the laser, and ensure that there is no dust and any other impurity on the lens. Please note that any macroscopic attachment may cause extreme damage to lens or burn the laser or any backward-stage light path equipment. ◎...
- Page 15 6、The equipment does not have any part which can be maintained by operators, and all the maintenance operations must be finished by the professionals of Maxphotonics Co., Ltd. 7、To prevent electrical shock, do not remove enclosure, detach the laser without permission and damage the relevant signs. Any product with unauthorized dismounting shall not be subject to warranty.
- Page 16 Chapter 2 General Safety Information (1) Please ensure that the working area is properly ventilated and the laser is placed in a cabinet with temperature and humidity control and dustproof function. Do not expose the laser to high temperature and high humidity. (2) Operating the equipment at high temperatures accelerates aging, increases current thresholds, and reduces laser sensitivity and conversion efficiency.
-
Page 17: 5-Additional Safety Information
Chapter 2 General Safety Information 5-Additional Safety Information For additional information regarding Laser Safety, please refer to the list below: Laser Institute of America(LIA) 13501 Ingenuity Drive, Suite 128 Orlando,Florida 32826 Phone:407 380 1553,Fax: 407 380 5588 Toll Free:1 800 34 LASER American National Standards Institute ANSI Z136.1, American National Standard for the Safe Use of Lasers (Available through LIA) -
Page 18: Chapter 3 Product Description
2、High power, high efficiency 3、High reliability, long service life 4、Compact, rugged package 5、Extension programming interface Applications: 1、Industrial applications 2、Scientific research 2-Module Configuration Maxphotonics offers many configurable modes. This manual will give complete instructions for all modes, please refer to section 6.3-6.6. -
Page 19: 3-Laser Model Designation Codes
Additional message Can be null 4 - Certification Maxphotonics certifies that this equipment has been thoroughly tested and inspected and meets published specifications prior to shipping. Upon receiving your equipment, check whether the packaging and accessories have been damaged in transit. If damage is apparent, please contact Maxphotonics immediately. -
Page 20: 7-Optical Output Terminal
Chapter 3 Product Description ITEMS FUNCTION DESCRIPTION CTRL External control interface of laser ETHERNET Communication interface AC380V 360-440VAC AC power input 1 inch WATER OUT Laser water cooled outlet ( WATER IN Laser water cooled intake ( 1 inch 7-Optical Output Terminal 1、Optical Output Head The optical output head come with a protective window that can be replaced if damaged. - Page 21 Chapter 3 Product Description Optical Output Head (G5 QBH head)
-
Page 22: Chapter 4 Specification
Chapter 4 Specification 1-Optical Characteristic Parameters No. Characteristics Test Conditions Min. Nom. Max. Unit Operation Mode CW/Modulated Polarization Random Output Power of 100% CW 6000 MFSC-6000X(G6.1) Tuning Range of Output Power Emission Wavelength 100% CW 1070 1080 1090 Spectrum Width(3dB) 100% CW Short-term Power Instability 100% CW >1h... -
Page 23: 2-General Characteristic Parameters
Chapter 4 Specification 2-General Characteristic Parameters No. Characteristics Test Conditions Min. Nom. Max. Unit Operating Voltage Input PowerMFSC-6000X(G6.1) 100% Output ℃ Operating Ambient Temperature Operating Ambient Relative Humidity Cooling Method Water-cooling ℃ Storage Temperature Dimensions 420*855.5*115(W*D*H) Weight 56±5 3-Water Cooling Condition Characteristics Min. -
Page 24: 4-Qbh Water Cooling Condition
Chapter 4 Specification CAUTION : ◎ The cooling capacity of the chiller shall meet the requirements in the table above under the working conditions of ring temperature of 40°C and outlet temperature of 22+2°C(18°C when antifreeze is added). ◎ The above recommended water pressure requires the pressure drop of the main line Δp ≤... -
Page 25: 5-Installation Environment Requirements
Chapter 4 Specification ◎ QBH is connected in series with the cutting head; ◎ The above recommended external light path water pressure requires the pressure drop of the cutting head Δp ≤ 1.5bar. If this value is exceeded, the external light path water pressure should be increased accordingly. - Page 26 Chapter 4 Specification Ambient Temperature, Relative Humidity, Dew Point Comparison Table Relative Humidity Ambient Dew point Td(℃ ) Temperature （℃） -7.0 -5.0 -3.0 -1.3 -6.5 -4.0 -2.0 -0.5 10.2 -5.0 -3.0 -1.0 10.9 11.2 -4.5 -2.0 -0.2 10.5 11.4 12.2 -3.2 -1.0 10.6...
-
Page 27: 6-Structural Layout
Chapter 4 Specification 6-Structural Layout Laser size chart (unit: mm) - Page 28 Chapter 4 Specification G4.3 QBH Outline dimension drawing of laser output terminal (unit: mm) G5 QBH Outline dimension drawing of laser output terminal (unit: mm)
-
Page 29: Chapter 5 Unpacking Guide
Chapter 5 Unpacking Guide 1-Unpacking Steps The laser is precise valuables, so Maxphotonics recommends that you unpack the packing box according to the following steps: 1. Place the package containing the laser equipment on a horizontal surface, such as a concrete floor or a hard floor;... - Page 30 NOTES: ◎ If any damage of the external package and internal parts has been found upon receipt of product, please contact Maxphotonics Co., Ltd. or designated agent immediately. ◎ The air conditioner behind the laser has a drain port, connect the drain pipe,...
-
Page 31: 2-Packing List
Chapter 5 Unpacking Guide 2-Packing List Names of fittings Description Unit Quantity Fiber Laser MFSC-xxxx External signal wire Lens cleaning paper Sample of water Ф25.4mm pipe of laser Hose clamps Galvanized hose clamp, 26-38 QBH water pipe Ф6x4mm sample tube... -
Page 32: Chapter 6 Operation Guide
Poor contact of the ground wire may cause potential damage to the laser. For ensuring the safety feature, Maxphotonics recommends you connect a 63A circuit breaker (air switch) in series between the power supply unit and the laser. - Page 33 Chapter 6 Operation Guide 6000X(G6.1) CTRL Interface definition Table Ctrl 中文标签 Interface Wire Color English Label Notes 互锁 1A ± short connection: laser Orange EXLOCK_CH1A normal control light (dry contact) 互锁 1B ± Off: laser lock, can not Orange black EXLOCK_CH1B produce light (dry contact) ±...
- Page 34 Chapter 6 Operation Guide ATTENTION: ◎ For your safety and reliable operation of the equipment, please strictly follow the product instructions to install and connect the external control of the product Cables, power cables, and ground cables. ATTENTION: ◎ Interlock/scram input is a switch type (dry node) signal prohibited from accessing voltage/current signals.
- Page 35 Chapter 6 Operation Guide Fault output: external voltage V < 30V, current I < 100mA ATTENTION: ◎ External outgoing light signal belongs to switch type signal (dry node) Voltage/ current signal is prohibited; ◎ For safety reasons, the laser is initialized every time it starts After the external light signal needs to be short-circuited once again Will take effect to allow light output.
-
Page 36: 4-Start Steps
Chapter 6 Operation Guide 4-Start Steps WARNING: ◎ Make sure that all the electrical connections (including cooling water connections) are connected prior to use. All the connectors must be held steady with screws if possible. ◎ NEVER look directly into the output fiber and make sure that you wear the laser safety eyewear while operating the product.Make sure all power is removed from the laser when wiring. -
Page 37: 5-Mode Description
Chapter 6 Operation Guide 5-Mode Description The working modes of the laser are as follows: 1.CW Mode：The light emitted is continuous and this mode is used for cutting. 2.Modulated Mode：The light emitted is pulsed and this mode is used for controlling the output average power of the laser. -
Page 38: 6-Software Description
Chapter 6 Operation Guide 6-Software Description (1) The software package was decompressed, and the operation environment (NET4.6) and monitoring software (G6-Series-n.n.n.n) were installed. (Windows 10 systems or systems with.NET 4.6 installed, no need to install NET4.6). (2) After installing the operating environment and monitoring software, a "G6- Series"... - Page 39 Chapter 6 Operation Guide (6) Click the "Login" button to try to connect with the laser. (7) If the laser has been powered on, and the model can match the monitoring software, it will enter the main interface.
- Page 40 Chapter 6 Operation Guide (8) Laser monitoring page. (9) Decrypt the page.
-
Page 41: 7-Error List
Overcurrent fault fault will occur; if the fault is not warning of laser caused by this reason, please contact Maxphotonics. The fault will be produced when QBH head is not inserted in the QBH installation Install error of internal part of the cutting head; if this... -
Page 42: Chapter 7 Fiber Connector Inspection And Cleaning Guide
The use of a dirty or damaged fiber connector can result in serious injury and/or laser damage. Maxphotonics is not responsible for any damage due to contaminated connectors. For cleaning a fiber connector, you need the following materials: 1、Powder-free rubber gloves or fingerstall... -
Page 43: 2-Operating Procedures
Chapter 7 Fiber Connector Inspection and Cleaning Guide and acetone should be managed and stored according to the local law and instructions. 2-Operating Procedures Clean and maintain the fiber laser according to the following procedures: 1、Cut off the power supply; 2、Remove the black outer protective sleeve and leave the white inner cap on and clean the fiber connector exterior with optical cleaner, wipe it with a clean optical wipe and dry it with compressed air;... - Page 44 Chapter 7 Fiber Connector Inspection and Cleaning Guide 7-2 Install the fiber connector under microscope 7-3 Cleaning protective lens with swabs...
- Page 45 Chapter 7 Fiber Connector Inspection and Cleaning Guide 1、quartz 2、fiber cladding 3、fiber core 7-4 Actual image of the fiber surface damaged coating damaged scratch 7-5 Endface may be damaged...
- Page 46 CAUTION : ◎ It is hereby stated that damage to the fiber connector can occur due to mishandling, the use of incorrect cleaning procedures, or chemicals for cleaning. This is not covered by the Maxphotonics' warranty.
-
Page 47: Chapter 8 Service And Maintenance
◎ For ensuring that the repairs or replacement within the warranty scope can be carried out, and perfectly maintaining your interests, please submit application to the Maxphotonics or the local representative after finding the faults. Upon receiving our authorization, you need to pack the product in a suitable package and return it. -
Page 48: 2-Service Statements
Please call the Customer Service Department for other questions: 400-900- 9588. Your problems will be follow-up by our technical support group after verified. If the problems cannot be solved , you may need to return the product to Maxphotonics for further troubleshooting. -
Page 49: Chapter 9 Warranty Statements
Warranty Statements 1-General Clauses Maxphotonics Co.,Ltd. carries out warranty for any defect of the product caused by its material and production technology within the warranty period agreed in contract, and ensures that its product meet the relevant quality and specification requirements specified in the document under normal use condition. - Page 50 IMPORTANT: ◎ Within the warranty scope, purchasers must feed back within 31 days after finding the product defect. ◎ Maxphotonics does not grant any Third Party rights to repair or replace the parts, the equipment or other Maxphotonics products.
