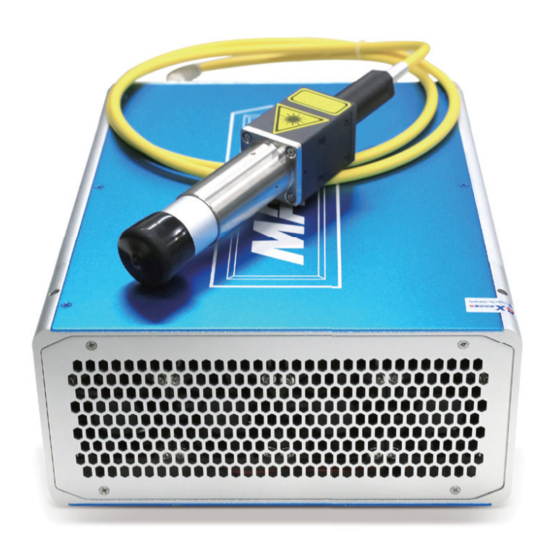

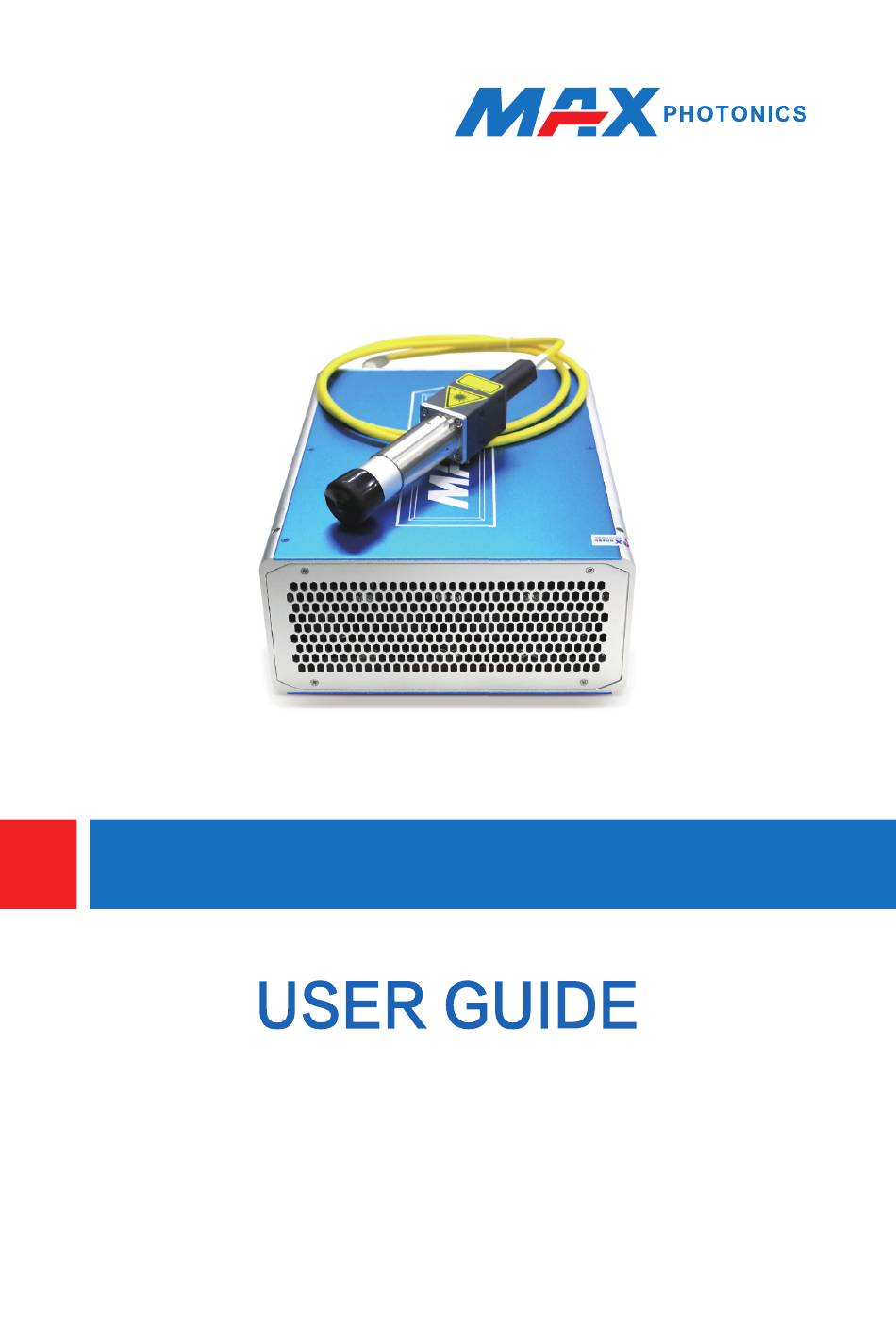

- Page 1 MFPT-20H/MFPT-20S(V4.2) MOPA Pulsed Fiber Laser Maxphotonics Co.,Ltd.
- Page 2 C o p y r i g h t © M a x p h o t o n i c s C o . , L t d ( h e r e a f t e r r e f e r r e d t o a s Maxphotonics). All rights reserved. You may not copy, modify, transmit or...
- Page 3 Preface Thank you for using the MFPT-20H/MFPT-20S Series MOPA Pulsed Fiber Laser. We compile this document for you in order that the laser is used and maintained properly. Due to the limited level of the writers, coupled with time constraints, there may be some careless mistakes in this document, and your understanding will be much appreciated.
- Page 4 Company Profile As a large laser manufacturer founded in 2004, Maxphotonics Co., Ltd. specializes in research and development, production and sales of lasers and ancillary products. Maxphotonics owns a number of independent intellectual property rights and patents as well as high-power pulsed fiber laser, high-power fiber laser and high-power fiber amplifier etc.
-
Page 5: Table Of Contents
CONTENT Chapter 1 Characteristic Description ………………………………… 5 Chapter 2 General Safety Information ……………………………… 6 1-Safety Conventions ………………………………………………………… 6 2-Laser Protection …………………………………………………………… 7 3- General Safety Instructions ……………………………………………… 8 4-Additional Safety Information …………………………………………… 12 Chapter 3 Product Description ………………………………………… 13 1-Property Introductions …………………………………………………… 13 2-Laser Model Designation Codes ………………………………………... - Page 6 CONTENT 3-Laser Operation using Digital Interface ……………………………… 26 4-Cut-off Power Frequency ……………………………………………… 29 5-Pulse Adjustment …………………………………………………………… 31 Chapter 6 Common Fault Treatment ………………………………… 32 1-Laser Emission Failure …………………………………………………… 32 2-Power Drops ………………………………………………………………… 32 Chapter 7 Service and Maintenance ………………………………… 34 1-Maintenance Notes …………………………………………………………...
-
Page 7: Chapter 1 Characteristic Description
Chapter 1 Characteristic Description The MFPT-20H/MFPT-20S (MOPA Pulsed Fiber Lasers) Series products are characterized by high reliabilty and high performance with the central emission wavelength of 1060nm. They are high-effecient, air-cooled and maintenance-free, which make them ideal tools for industrial laser marking, engraving etc.. -
Page 8: Chapter 2 General Safety Information
Chapter 2 General Safety Information 1-Safety Conventions All safety warning symbols during operating process of the laser include: SYMBOLS DESCRIPTION WARNING : Refer to a potential Electrical Hazard to human body; It requires certain procedures; otherwise, it may result in bodily harm to you and/or others. In order to ensure the personal safety of operators, do not violate the requirement of the WARNING sign. -
Page 9: 2-Laser Protection
LaserVision USA, Kentek Corporation, Rochwell Laser Industries, etc. All the supplier information is provided by Maxphotonics only for the convenience to use, so Maxphotonics assumes no responsibility for any problem caused by using the products of abovementioned suppliers. -
Page 10: 3-General Safety Instructions
Chapter 2 General Safety Information 3-General Safety Instructions In order to ensure the safe operation and optimal performance of the product, please follow these warnings and cautions in addition to the other information contained elsewhere in this document. 1.Specular Reflection There are often numerous secondary laser beams produced at various angles in the output port of the laser. - Page 11 Such damage is not covered by the warranty. WARNING : ◎ Use of controls or adjustments or performance of procedures other than those set forth in this User's Guide and related documents may result in hazardous radiation exposure. 4.Electrical Operating Instructions MFPT-20H/MFPT-20S Laser module supply voltage:24VDC。...
- Page 12 ◎ No operator serviceable parts inside. Refer all servicing to qualified Maxphotonics personnel. ◎ To prevent short circuit, do not remove shell, detach the laser without permission and damage the relevant signs. Any product with unauthorized dismounting shall not be subject to warranty.
- Page 13 Chapter 2 General Safety Information （3）Before switching on the device make sure that environmental temperature and humidity are within a specified range. WARNING : ◎ Optical damage may result from failure to comply with the above instructions. Such damage is not covered by the warranty. 6.Routine Maintenance （1）Avoid the impaction on the shipper rod of worktable when the laser is working.
-
Page 14: 4-Additional Safety Information
Chapter 2 General Safety Information 4-Additional Safety Information For additional information regarding Laser Safety, please refer to the list below : Laser Institute of America(LIA) 13501 Ingenuity Drive, Suite 128 Orlando,Florida 32826 Phone:407 380 1553,Fax: 407 380 5588 Toll Free:1 800 34 LASER American National Standards Institute ANSI Z136.1, American National Standard for the Safe Use of Lasers (Available through LIA) -
Page 15: Chapter 3 Product Description
Chapter 3 Product Description 1-Property Introductions T h e M F P T ( M O P F A P u l s e d F i b e r L a s e r s ) S e r i e s p r o d u c t s a d o p t Q-Switched main oscillator, MFPM structure with a compact and rugged package. -
Page 16: 2-Laser Model Designation Codes
MFPT-20H/MFPT-20S MOPA Pulsed Fiber Laser 3-Certification Maxphotonics guarantee that this equipment has been thoroughly tested and inspected and meets published specifications prior to shipping. Upon receiving your equipment, check whether the packaging and accessories have been damaged in transit. If damage is apparent, please contact... -
Page 17: Chapter 4 Specification
Chapter 4 Specification 1-Optical Characteristic Parameters Characteristics Test conditions Min. Nom. Max. Unit Mode Pulse Polarization Random Beam Quality M² Pout=Pnom 1.45 Center Wavelength Pout=Pnom 1060 1064 1070 Spectrum Width(3dB) Pout=Pnom Average Optical 19.5 20.5 Power(Pnom) Power Range Max. Pulse Energy 350ns/33KHz 0.61 Pulse Width Range... -
Page 18: 2-General Characteristic Parameters
Chapter 4 Specification Output Power Stability Pout=Pnom Beam Diameter 1/e2 Beam Ellipticity Delivery Cable Length Pout=Pnom， Laser startup Time 10%~90% Pout=Pnom， Laser Shutdown Time 90%~10% ◎ Note: Beam Diameter and Delivery Cable Length can be customized against User's specific demand. 2-General Characteristic Parameters Characteristics Test conditions... -
Page 19: 3-Structural Layout
Chapter 4 Specification 3 -Structural Layout Standard isolated output head dimensions:（Unit：mm） Laser module dimensions:（Unit：mm）... -
Page 20: Chapter 5 Operation Guide
User Guide+ Qualified Test Result Power Wire (Optional) CAUTION : ◎ If any damage of the external package and internal parts has been found upon receipt of product, please contact Maxphotonics Co., Ltd. or designated agent immediately. 1-Electrical Power Connection Power wire... - Page 21 Chapter 5 Operation Guide Recommend Electric Circuit Diagram +24VDC Brown/Red Cable +24VDC +24VDC Return (Blue Cable) Power Power Earth Supply Supply Connector 100pF Laser Ground （Pin10~15,24) User's Control Controller User's Connector Power Controller DB-25 Supply Note： ◎ Main power supply (24VDC) should be capable to permanently supply operating current(refer to the maximum current consumption in the laser specification) and supply peak current 50% higher for short periods up to 250us.
-
Page 22: 2-Control Connector Pin Assignment, Db-25 Plug
Chapter 5 Operation Guide ◎ Laser GND (DB-25 pin 10-15,24) and laser 24VDC return (BLUE CABLE) are connected inside the laser module. No connections are allowed between these terminals outside of the laser module. ◎ Inside the module the common ground is connected to the laser housing via 470 Ohm resistor and parallel 47nF capacitor. - Page 23 Chapter 5 Operation Guide Latch(Latches power setting into the laser by the rising edge) 14,15 Ground 24，25 Floating 11，12，16，21 Laser alarms (see alarm codes in the table below). +5±0.25VDC power supply input for pin 16，21 Laser alarms status (see alarm codes in the table below). Master Oscillator(MO) signal HIGH: MO on LOW or disconnected: MO off...
- Page 24 Chapter 5 Operation Guide 2.Digital Control Interface (DB-25) Function Description （1）The laser is controlled via signals applied to the DB-25 connector. Please refer to the connector interface description table above for 5.2.1 pin designation and operating levels. （2） Pins 1 to 8 are the 8 bit bus for the output power setting. Pin 1 is the least significant bit and pin 8 is the most significant bit.
- Page 25 9. Data on the pins 1-8 should be stable for 1us before and 1us after the rising edge on pin 9. Stability of the data on the Pin 1-9 out of the above mentioned time frames is not required. Maxphotonics recommends supplying single positive pulse with duration longer than 2us to latch the data into the laser.
- Page 26 Chapter 5 Operation Guide （5）Pin 18 is the Emission Enable (EE) signal. The Emission Enable input should be switched ON at least 5ms earlier than the Emission signal is switched ON. After switching ON Emission Enable input, the laser starts to consume more electrical power and emits residual optical power to the output even when EM pin 19 is LOW (Emission).
- Page 27 Chapter 5 Operation Guide rising edge on the pin19. If the HIGH level was applied to the pin 19 before supplying voltage to the PCB, the laser does not recognize that as the Emission switching ON signal. The pin 19 should be dropped and set to HIGH level again.
-
Page 28: 3-Laser Operation Using Digital Interface
Chapter 5 Operation Guide （9）Pin 23 is the “Emergency stop” input. It should be set to HIGH for normal operation. In case of dropping this pin to LOW state (even for a short period) the laser automatically switches OFF (similar state when both EE and EM are OFF) independently of other control signals. - Page 29 Chapter 5 Operation Guide （7）Switch the EE ON applying HIGH to the pin 18. （8）Wait 5ms. （9）Laser can be fast modulated via Pin 19 and the laser state of ON or OFF can be set with a HIGH or LOW input signal respectively. Switching ON/OFF of the laser has a finite rise/fall time (refer to the specification for the particular model).
- Page 30 Chapter 5 Operation Guide operate at the minimum specified PRR. （3）The power setting can be changed during the laser operation by applying updated values to pin 1-8 and latching them into the laser via pin 9. The laser will respond to the changes on the subsequent specified rise time.
-
Page 31: 4-Cut-Off Power Frequency
+45 ℃ , the laser will not resume the emission and the alarm pins remain unchanged until the main power supply (24VDC) is turned off. 4-Cut-off Power Frequency Recommend high speed galvanometer. MFPT-20H/MFPT-20S Cut-off Power Frequency current 电流（mA） (mA) Full- 满功率电流... - Page 32 Chapter 5 Operation Guide Set Pulse Width （ns） MFPT-20H/MFPT-20S 1000 （1）Set the pulse width, pulse repetition rate, and power according to different materials and marking purpose. （2）Cut-off power frequency : If the pulse frequency is lower than the cut-off power frequency the exact maximum output power will be also lower than that at the cut-off power frequency.
-
Page 33: 5-Pulse Adjustment
Chapter 5 Operation Guide 5-Pulse Adjustment （1）Hardware parts configuration Pins standard-DB25, 25 pins. Pin 1 to Pin 25. DB25-PIN2 - SDI DB25-PIN3 - SCL DB25-PIN22- EN Hardware logic as below: Sample the input data at the rising edge of SCL when EN is HIGH valid. （2）Protocal High nibble first, pulse duration setting range is within 4BYTE, 32bit. -
Page 34: Chapter 6 Common Fault Treatment
Chapter 6 Common Fault Treatment 1-Laser Emission Failure （1）Make sure the connection of power supply is correct.(+24VDC and GND connect correctly? Earth the ground wire?) （2）Make sure the E-STOP switching is released, Emergency Stop Input is high when the laser is in normal operation. （3）Make sure the power supply is in normal condition, and check its output without and with load( connected with the laser). - Page 35 Chapter 6 Common Fault Treatment （3）Inspect whether other optical lens are clean, such as red light combiner, galvanometer, field lens. （4）Inspect whether optical output is covered or not and make sure the isolator output terminal and galvanometer are at grade when installing. （5）Power loss out of laser operation lasting 20,000 hours is normal phenomenon.
-
Page 36: Chapter 7 Service And Maintenance
◎ For ensuring that the repairs or replacement within the warranty scope can be carried out, and perfectly maintaining your interests, please submit application to the Maxphotonics or the local representative after finding the faults. Upon receiving our authorization, you need to pack the product in a suitable package and return it. -
Page 37: 2-Service Statement
Please call the Customer Service Department for other questions: 400- 900-9588. Your problems will be follow-up by our technical support group after verified.If the problems cannot be solved , you may need to return the product to Maxphotonics for further troubleshooting. -
Page 38: Chapter 8 Warranty Statements
Chapter 8 Warranty Statements 1-General Clauses Maxphotonics Co.,Ltd. carries out warranty for any defect of the product caused by its material and production technology within the warranty period agreed in contract, and ensures that its product meet the relevant quality and specification requirements specified in the document under normal use condition. - Page 39 IMPORTANT: ◎ Within the warranty scope, purchasers must feed back within 31 days after finding the product defect. ◎ Maxphotonics does not grant any Third Party rights to repair or replace the parts, the equipment or other Maxphotonics products.
