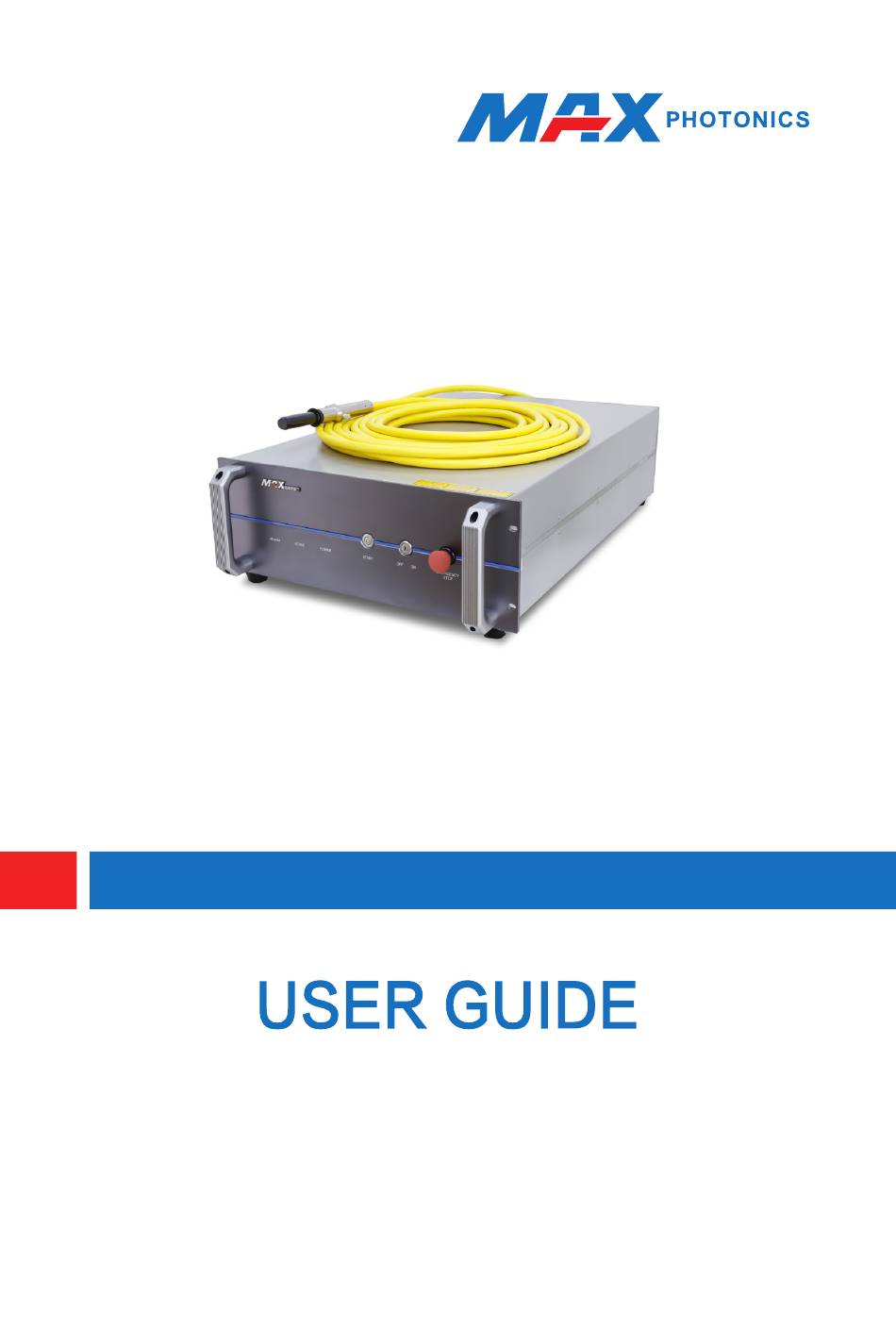

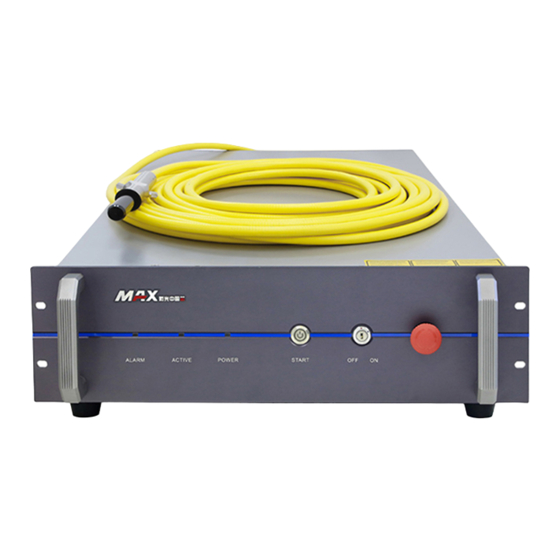

- Page 1 MFSC 1000X-1500X (G4.0) CW Fiber Laser Series Maxphotonics Co.,Ltd.
- Page 2 Copyright Notation Copyright © Maxphotonics Co ., Ltd ( here after referred to as Maxphotonics). All rights reserved. You may not copy, modify, transmit or publish this publication, in any form, in any media or by any means, without the prior written permission of Maxphotonics, except as allowed under applicable copyright laws.
- Page 3 Preface Thank you for using the MFMC Series CW fiber laser from Maxphotonics. We compile this document for you in order that the laser is used and maintained properly. Due to the limited level of the writers, coupled with time constraints, there are some careless mistakes in this document, your understanding and suggestion to help us make an improvement will be much appreciated .
-
Page 4: Company Profile
Company Profile Found in 2004, Maxphotonics is one of the first fiber laser manufacturers in China. It is also the first in China to realize independent intellectual property rights and vertical integration in the core technologies of fiber lasers and optical devices. -
Page 5: Table Of Contents
CONTENT Company Profile ................4 Chapter 1 Characteristic Description .........7 Chapter 2 General Safety Information .........8 1-Safety Conventions ..............8 2-Laser Protection ................9 3-Reference Standard ..............10 4-General Safety Instructions ............11 5-Additional Safety Information .............16 Chapter 3 Product Description ..........17 1-Features ..................17 2-Module Configuration ..............17 3-Laser Model Designation Codes ..........18 4-Certification ................18... - Page 6 CONTENT 6-Structural Layout ...............25 Chapter 5 Disassembly Guide ............26 1-Disassembly Step ..............26 2-Packing List ................27 Chapter 6 Operation Guide ............28 1-Notice ..................28 2-Electrical Power Connection ............28 3-Extension Interface ..............29 4-Fiber Connector Inspection and Cleaning Guide ......30 5-Start Steps ................34 6-Mode Description ..............34 7-Software Description ..............35 8-Error List ...................39 Chapter 7 Service and Maintenance ..........41...
-
Page 7: Chapter 1 Characteristic Description
30% and deliver high efficiency, high reliability and high performance. Maxphotonics' MFSC 1000X-1500X (G4.0) CW Fiber Laser Series are Class 4 laser products and are designed and tested with safety. By following this User Guide and applying sound laser safety practices, it will be a safe and reliable device. -
Page 8: Chapter 2 General Safety Information
Chapter 2 General Safety Information 1 -Safety Conventions All safety warning symbols during operating process of the laser include: SYMBOLS DESCRIPTION WARNING: There is a potential hazard to the human body; ( laser radiation) ( shock) needs to follow certain procedures, otherwise it may cause certain harm to you or others' body. -
Page 9: 2-Laser Protection
LaserVision USA, Kentek Corporation, Rochwell Laser Industries, etc. All the supplier information is provided by Maxphotonics only for the convenience to use, so Maxphotonics assumes no responsibility for any problem caused by using the products of... -
Page 10: 3-Reference Standard
Chapter 2 General Safety Information 3-Reference Standard Electromagnetic compatibility and anti-interference: EN 55011: 2010 EN 55024: 2010 + A1: 2015 EN 55032: 2015 CISPR 11 FCC PART 15 Class A ICES-003 issue 6, Class A EN 61000-3-3: 2013 EN 61000-3-2: 2014 EN 61000-4-2: 2009 EN 61000-4-3: 2006 + A2: 2010 EN 61000-4-4: 2012... -
Page 11: 4-General Safety Instructions
Chapter 2 General Safety Information Please note: ◎ Performances of Maxphotonics MFSC laser meet the CE EMC certification requirements, the EMC requirements specified in "EMC Directive" of European market, the anti-interference requirements specified in "EMC" standard EN55011 emission and EN61326-1: 8006, and the emission requirements of group 1 classification A specified in EN55011. - Page 12 Chapter 2 General Safety Information WARNING: ◎ The Maxphotonics MFSC laser light is strong enough to cut or weld metal, burn skin, clothing and paint. In addition, this light can ignite volatile substances such as alcohol, gasoline, ether and other solvents. During the operating process, the flammable materials around the laser must be isolated.
- Page 13 Chapter 2 General Safety Information （11）If the equipment is operated in a manner not specified in this document, the protection devices and performance of the equipment may be impaired and the warranty will be voided. CAUTION : ◎ The output of the laser is delivered through a lens with an anti-reflection coating.
- Page 14 Chapter 2 General Safety Information (2) The power supply connected to the equipment, please make sure that the protection ground is connected before use; (3) In order to reduce the risk of fire, the line fuses can only be replaced by the same type and the same level if necessary, and cannot be replaced by other fuses or materials;...
- Page 15 Chapter 2 General Safety Information at eye level. Because of interaction of the laser and the metal material, the radiation of high-level ultraviolet light or visible light may be produced. Make sure that the laser is provided with the protective cover to prevent the eyes or other parts of human bodies from damage by radiation.
-
Page 16: 5-Additional Safety Information
Chapter 2 General Safety Information 5-Additional Safety Information For additional information regarding Laser Safety, please refer to the list below ： Laser Institute of America(LIA) 13501 Ingenuity Drive, Suite 128 Orlando,Florida 32826 Phone:407 380 1553,Fax: 407 380 5588 Toll Free:1 800 34 LASER American National Standards Institute ANSI Z136.1, American National Standard for the Safe Use of Lasers (Available through LIA) -
Page 17: Chapter 3 Product Description
2、High power, high efficiency 3、High reliability, long service life 4、Compact, rugged package 5、Extension programming interface Applications: 1、Industrial applications 2、Scientific research 2-Module Configuration Maxphotonics offers many configurable modes. This manual will give complete instructions for all modes, please refer to section 6.3-6.6. -
Page 18: 3-Laser Model Designation Codes
MFSC-1500X(G4.0) Maxphotonics Single-mode CW Fiber Laser 1500X 4-Certification Maxphotonics certifies that this equipment has been thoroughly tested and inspected and meets published specifications prior to shipping. Upon receiving your equipment, check whether the packaging and accessories have been damaged in transit. If damage is apparent, please contact Maxphotonics immediately. -
Page 19: 6-Back Panel Description
Chapter 3 Product Description 6-Back Panel Description ITEMS FUNCTION DESCRIPTION CTRL External control connector AC 220V (MFSC-1000X)(G4.0) 200-240VAC power input POWER (MFSC-1000X)(G4.0) 200-240VAC switch AC 220V (MFSC-1500X) 200-240VAC (360-440VAC optional) AC (AC 380V optional) (G4.0) power input 200-240VAC (360-440VAC optional) AC POWER (MFSC-1500X)(G4.0) power switch WATER OUT... -
Page 20: 7-Optical Output Terminal
Chapter 3 Product Description 7-Optical Output Terminal 1 .Optical Output Head The optical output head come with a protective window that can be replaced if damaged. Please refer to 6.4 about the cleaning method. Make sure that the black end cap of the QBH head is removed prior to use and is usually arranged with the laser. -
Page 21: Chapter 4 Specification
Chapter 4 Specification 1 -Optics Characteristic Parameters Characteristics Test conditions Min. Nom. Max. Unit Operation mode CW/Modulated Polarization Random Output power 100% CW 1000 MFSC-1000X(G4.0) Output power 100% CW 1500 MFSC-1500X (G4.0) Tuning range of output power Emission wavelength 100% CW 1070 1080 1090... -
Page 22: 2-General Characteristic Parameters
Chapter 4 Specification 2 -General Characteristic Parameters Test Characteristics Min. Nom. Max. Unit conditions Operating Voltage MFSC-1000X(G4.0) Operating Voltage MFSC-1500X(G4.0) Operating Voltage MFSC-1500X(G4.0) (optional) Input Power 100% Output MFSC-1000X(G4.0) Input Power 100% Output MFSC-1500X(G4.0) ℃ Operating Ambient Temperature Operating Ambient Relative Humidity Cooling Method Water-cooling... -
Page 23: 4-Qbh Water Cooling Condition
Chapter 4 Specification ◎ The cooling water and filter element need to be replaced once a month; before winter (referring to low temperature environment of 0° C and below), the cooling water should be replaced with a suitable antifreeze (for example, glycol antifreeze, excessive addition is strictly prohibited, antifreeze thermal conductivity coefficient) Low, excessive addition may cause poor heat dissipation). -
Page 24: 5-Installation Environment Requirements
Chapter 4 Specification 5-Installation Environment Requirements 1.The ambient air cleanliness grade requirement for optical fiber output head installation: 1000 or more stringent grade. Suggestions for Configuration of Standard Purification Workbench; 2.laser working environment temperature:10°C–40°C; 3.laser working environment humidity:10%-85%; 4.Avoid the condensation environment,the specific control standards are as follows: NOTE : ◎... -
Page 25: 6-Structural Layout
Chapter 4 Specification 6-Structural Layout Laser Three Views.（Unit：mm）... -
Page 26: Chapter 5 Disassembly Guide
Chapter 5 Disassembly Guide 1-Disassembly Step The laser belongs to the precise valuables, so Maxphotonics recommends the following steps to unpack the packing box. Please unpack according to the following steps: (1) Place the package containing the laser device on a horizontal platform, such as a floor or a large table;... -
Page 27: 2-Packing List
Chapter 5 Disassembly Guide 2-Packing List Names of fittings Description Unit Quantity Fiber Laser MFSC XXXX External signal wire Power Keys Lens cleaning paper Sample of QBH water Ф6x4mm pipe Sample of water Ф12x8mm pipe of laser Cable... -
Page 28: Chapter 6 Operation Guide
Please make sure the grounding cord is perfectly connected, or the laser may be damaged potentially. For ensuring the safety feature, Maxphotonics recommends you connect a 32A circuit breaker (air switch) in series between the power supply unit and the laser. -
Page 29: 3-Extension Interface
Chapter 6 Operation Guide 3- Extension Interface The laser CTRL interface is a high quality DB25 interface that provides a variety of signals for the functional control of the laser, as described below: CTRL Interface Definition Ctrl Function Wire Color Notes Interface Pin Description... -
Page 30: 4-Fiber Connector Inspection And Cleaning Guide
◎ The use of a dirty fiber connector can result in laser damage, which is not covered by the Maxphotonics' warranty. ◎ The laser will not be covered by the Maxphotonics' warranty if the buyer... - Page 31 It is hereby stated that damage to the fiber connector can occur due to mishandling, the use of incorrect cleaning procedures, or chemicals for cleaning. This is not covered by the Maxphotonics' warranty. ◎ Ethanol concentration should be above 99.5% during cleaning.
- Page 32 Chapter 6 Operation Guide check under the microscope. （6） Reinstall the inner cap and the outer sleeve onto the cleaned fiber connector. （7）Take out the cap and sleeve, then connect the fiber connector with cutting head quickly and fasten them. (Place the cap face down on a clean surface or a lint-free wipe.) Take out the cap and sleeve Install fiber connector under microscope...
- Page 33 Chapter 6 Operation Guide Cleaning protective lens with swabs IMPORTANT： ◎ Do not reuse non-woven cotton or cotton swabs. ◎ Do not touch the protective lens of the fiber connector with your fingers. ◎ Do not blow directly with the mouth to protect the surface of the lens from dirt, which may cause new dirt.
-
Page 34: 5-Start Steps
Chapter 6 Operation Guide 5-Start Step WARNING： ◎ Make sure that all the electrical connections (including cooling water connections) are connected prior to use. All the connectors must be held steady with screws if possible. ◎ NEVER look directly into the output fiber and make sure that you wear the laser safety eyewear while operating the product. -
Page 35: 7-Software Description
Software", and download "G3 Series-Software Installation Guide", "NET4.6", "G3-Series-n.n.n.n". (The version is updated from time to time, subject to the official website announcement without notice.) URL：http://en.maxphotonics.com/En/Software.html (2) Decompress the downloaded compressed package, and install the operating environment (NET4.6) and monitoring software (G3-Series-n.n.n.n) referring to the "G3 Series-Software Installation Guide". - Page 36 Chapter 6 Operation Guide (4) Check whether the communication interface of the laser backplane is RS232 or EtherNet, connect it to the PC, and power on the laser. (5) Double-click the desktop "G3-Series" shortcut to open the monitoring software and enter the following connection interface. (6) If the laser backplane is an RS232 interface, the monitoring software communication mode is selected as COM (the default is COM), and the corresponding COM number is selected, and then click the "Login"...
- Page 37 Chapter 6 Operation Guide...
- Page 38 Chapter 6 Operation Guide (8) Decryption page. Tip: The software installation and use instructions specific details, official website software manual.
-
Page 39: 8-Error List
Maxphotonics. Please check the pressure of the chiller Water flow alarm/ Chiller or laser water pressure gauge; check whether pump source... - Page 40 QBH installation Install error of internal part of the cutting head; if this alarm cause is excluded, please contact Maxphotonics. The ALARM indicator and ACTIVE indicator on the front panel flash red Laser encryption Encrypted alarm and green alternately. Please contact...
-
Page 41: Chapter 7 Service And Maintenance
◎ For ensuring that the repairs or replacement within the warranty scope can be carried out, and perfectly maintaining your interests, please submit application to the Maxphotonics or the local representative after finding the faults. Upon receiving our authorization, you need to pack the product in a suitable package and return it. -
Page 42: 2-Service Statements
Please call the Customer Service Department for other questions: 400-900- 9588. Your problems will be follow-up by our technical support group after verified. If the problems cannot be solved , you may need to return the product to Maxphotonics for further troubleshooting. -
Page 43: Chapter 8 Warranty Statements
Warranty Statements 1-General Items Maxphotonics Co.,Ltd. carries out warranty for any defect of the product caused by its material and production technology within the warranty period agreed in contract, and ensures that its product meet the relevant quality and specification requirements specified in the document under normal use condition. - Page 44 IMPORTANT : ◎ Within the warranty scope, purchasers must feedback within 31 days after finding the product defect. ◎ Maxphotonics does not grant any Third Party rights to repair or replace the parts, the equipment or other Maxphotonics products.
